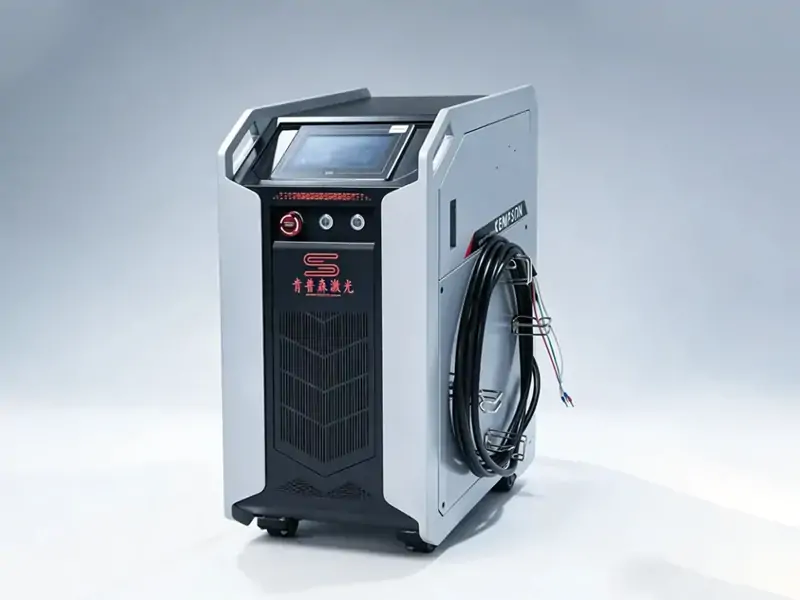

The Air-Cooled Handheld Laser Welding Machine is specifically designed for medium and thin metal sheets. It requires no external water cooling, is compact, highly mobile, and easy to operate. It is widely used in kitchen and bathroom hardware processing, outdoor signage installation, home appliance sheet metal welding, metal door and window railing manufacturing, small hardware parts production, automotive parts processing, warehouse racking construction, and other small to medium batch welding scenarios.
From the streamlined contours of the integrated chassis to the ergonomic grip of the handheld welding torch, and the precision internal layout of the enclosure, we spare no detail in our commitment to setting the benchmark for air-cooled laser welding quality.
The air-cooled integrated laser welding machine utilizes a semiconductor laser to generate a laser beam. This beam is transmitted and focused through an optical system to form a high-precision, small spot size. Leveraging the laser’s high energy density, it rapidly melts metal materials to create a molten pool, completing the weld as the beam moves. This process features low heat input and high welding speed, resulting in a minimal heat-affected zone, minimal workpiece deformation, and excellent weld quality.
The equipment breaks away from traditional split-type architectures to achieve integrated design, offering advantages of high efficiency, stability, intelligence, and ease of maintenance. Its built-in intelligent air-cooling system utilizes powerful fans to generate high-speed airflow, continuously dissipating heat generated by the laser head during operation to extend equipment lifespan.
Below is an introduction to the key component advantages:
1. High-Performance Chip Laser
Utilizes high-power semiconductor laser chips for stable output and rapid response, ensuring welding quality while reducing energy consumption.
2. Multi-Rotation Anti-Splatter Black Gold Laser Gun
Features a repeatable rotating protective lens system that effectively minimizes welding spatter, extends lens lifespan, and significantly lowers consumable costs.
3. Intelligent Air-Cooling System
Integrated high-efficiency fan with smart temperature control delivers continuous air cooling without manual maintenance, enabling sustained stable laser operation.
4. Stepper Wire Feeder
Features a worm gear four-wheel-drive stepper mechanism for precise, stable wire feeding with built-in straightening capability, suitable for diverse welding requirements.
5. Schneider Electric Intelligent Control System (France)
Equipped with Schneider’s high-performance control system, supporting multi-scenario parameter adaptation and intelligent operations to enhance overall equipment control precision and reliability.
Kempson Multi-Spin Anti-Splatter Black Gold Welding Torch features dual protection through reusable protective lenses and specialized anti-splatter nozzles with high-temperature alerts. This significantly reduces consumable replacement frequency and costs. Compared to competitors’ fragile configurations, it saves over 150 yuan monthly in consumables and minimizes downtime losses.

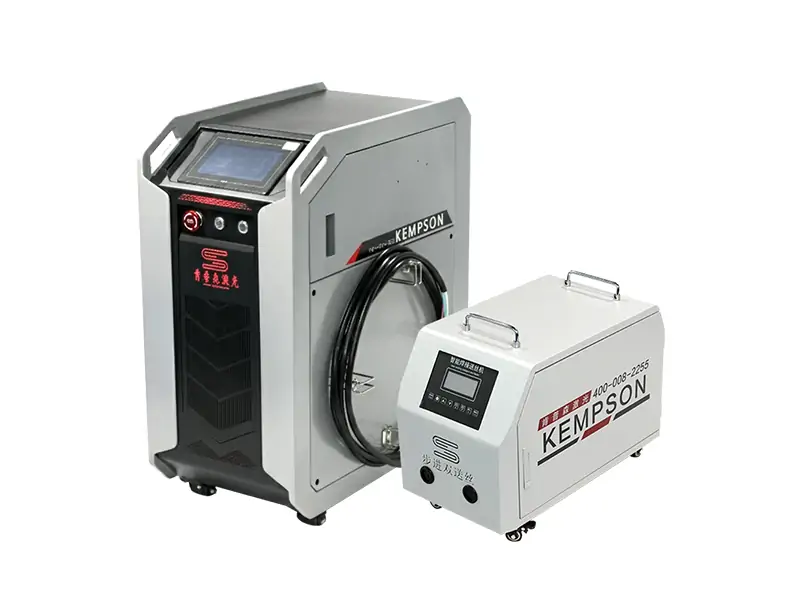

Kempson Air-Cooled Integrated Laser Welding Machine features a compact, integrated design with overall dimensions of 0.4 × 0.66 × 0.8 meters. Its small footprint allows flexible integration into various workspaces, significantly reducing workshop layout costs. The built-in intelligent air-cooling system eliminates the need for external water cooling or air supply, enabling plug-and-play operation for efficient and convenient use. Below is the dimension diagram:
| Model | KPS-WASC1100 | KPS-WASC1500 | KPS-WASC2000 |
|---|---|---|---|
| Laser Power | 1100W | 1500W | 2000W |
| Fillet Weld Thickness (Stainless Steel) | 2.0mm | 2.5mm | 5mm |
| Fillet Weld Thickness (Carbon Steel) | 2.5mm | 3mm | 5.5mm |
| Fillet Weld Thickness (Aluminum Alloy) | 2.0mm | 2mm | 4.5mm |
| Welding Wire Diameter | Φ0.8mm–1.6mm | Φ0.8mm–1.6mm | Φ0.8mm–2.0mm |
| Wire Feeding Mode | Auto Wire Feeding (Single/Dual Switchable) | Auto Wire Feeding (Single/Dual Switchable) | Auto Wire Feeding (Single/Dual Switchable) |
| Total Power Consumption | ≤2.5kW | ≤2.5kW | ≤3kW |
| Cooling Method | Built-in Air Cooling | Built-in Air Cooling | Built-in Air Cooling |
| Operating Mode | Continuous & Pulse | Continuous & Pulse | Continuous & Pulse |
| Control Method | Panel, APP, Remote Diagnosis | Panel, APP, Remote Diagnosis | Panel, APP, Remote Diagnosis |
| Power Requirement | 220V | 220V | 220V |
| Dimensions (L×W×H) | 0.4×0.66×0.8m | 0.4×0.66×0.8m | 0.4×0.66×0.8m |
| Weight | ≈62kg | ≈63kg | ≈67kg |
| Weld Bead Width | 1.5–4.5mm | 1.5–4.5mm | 1.5–5.5mm |
| *Note | The handheld welding torch is equipped with a standard 10-meter optical fiber for flexible outdoor and long-distance welding. |
This machine can weld various metal materials including carbon steel, stainless steel, and aluminum, with a weld thickness range of 0.5–5.5 mm. It produces smooth, secure welds while effectively controlling spatter. Below are examples of the welding results:
Aluminum alloy
2–4 mm
Aluminum alloy
2–8 mm
Carbon steel
3–12 mm
Stainless steel
2–10 mm
The air-cooled integrated laser welding machine for thin sheets offers advantages such as fine welds, non-destructive welding, and minimal thermal deformation. It is widely applicable for high-precision welding of various ultra-thin metal sheets across the following industries:
Kempson Laser is a leading air cooled handheld laser welding machine manufacturer and supplier based in China, specializing in the design, development, production, sales, and after-sales service of high-performance laser welding equipment for various industrial applications.
We have over 30 patents, we are dedicated to providing top-quality, high-power welding solutions. We follow strict quality control processes, and our products meet international standards, holding multiple certifications, including ISO 9001, CE, and FDA.
Our technical team offers rapid response support, providing installation guidance, process optimization, three-year warranty, and addressing any on-site welding challenges. To better serve our global clientele, we have established a comprehensive service and after-sales network across more than 20 countries, ensuring consistent and reliable support.
Contact us today to explore how our air cooled handheld laser welding machines and customized solutions can elevate your production processes, backed by expert technical support and unparalleled service.
This air-cooled all-in-one laser welding machine is designed specifically for thin sheet metal welding, typically ranging from 0.5–3 mm, depending on material type and joint design. It is widely used for stainless steel, carbon steel, galvanized sheet, and aluminum thin plates where clean weld seams and minimal deformation are required.
For thin plate applications, an air-cooled laser welding machine offers clear advantages: no chiller required, lower energy consumption, faster start-up, and easier maintenance. The all-in-one design reduces system complexity, making it ideal for workshops, mobile jobs, and customers seeking a cost-effective, plug-and-play welding solution.
Yes. In many thin sheet metal applications, a handheld air-cooled laser welder can directly replace TIG or MIG welding. It provides higher welding speed, narrower heat-affected zones, less distortion, and smoother welds, to reduce post-weld grinding and overall labor costs.
This thin plate laser welding machine features an optimized air cooling system and integrated thermal management design, which can operate continuously under normal workshop conditions. For typical thin plate production cycles, it delivers reliable performance without the downtime risks associated with water leakage or chiller failure.
This machine is ideal for sheet metal fabrication, cabinets and enclosures, kitchen equipment, HVAC components, advertising signs, and light industrial manufacturing. It is especially suitable for customers who need high-quality thin plate welds, flexible operation, and low operating costs in small to medium-scale production.
Looking for thin sheet welding?
Check our Thin Sheet Handheld Laser Welding Machine
(1500–2000W).
