The High Precision Fiber Laser Tube Cutting Machine is a practical laser cutting device for the precision tube processing market launched by Kempson. This equipment features ease of operation, high precision, and low investment, focusing on solving common problems for processing companies in the cutting of thin-walled steel tubes and multi-specification profiles, such as unstable precision, complex operation, and cost control.

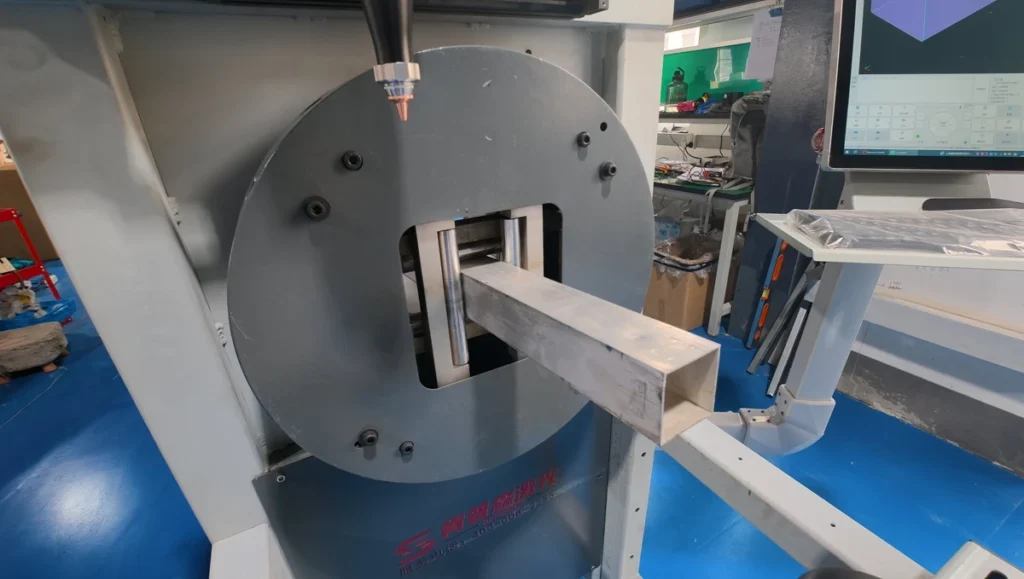

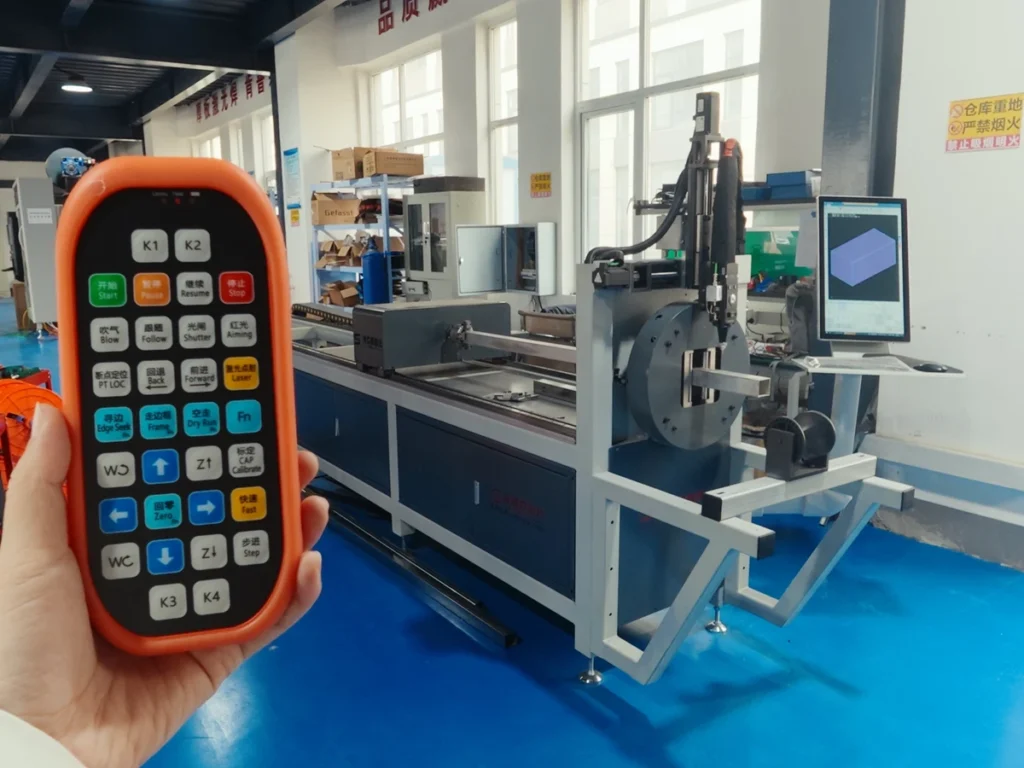

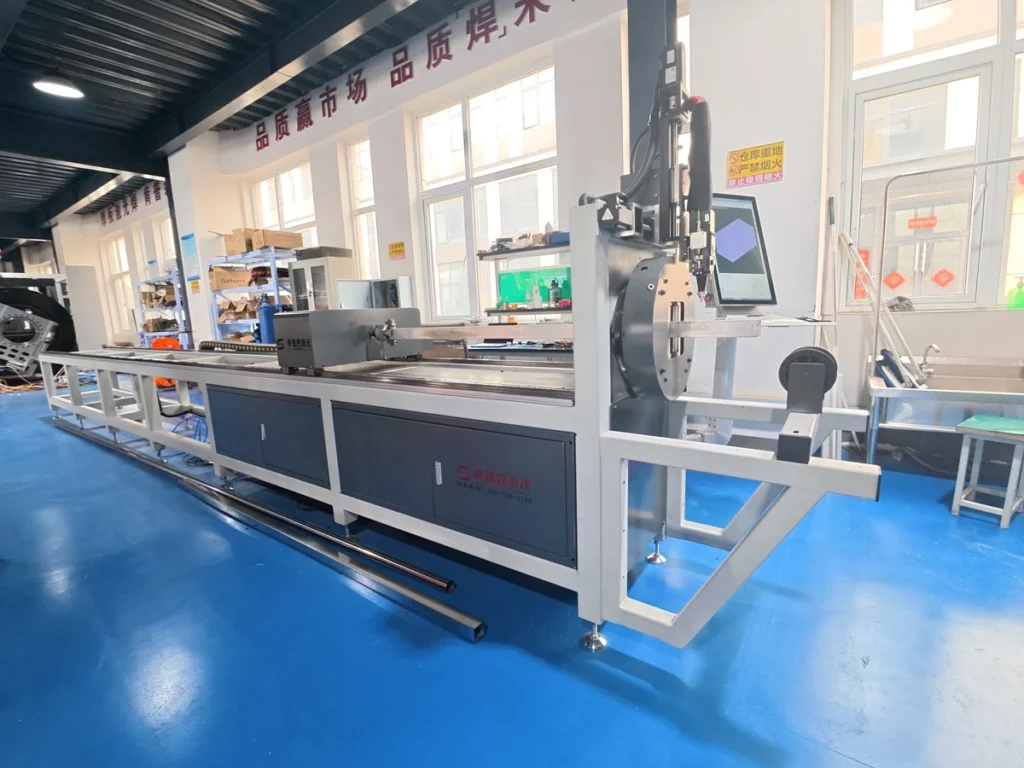

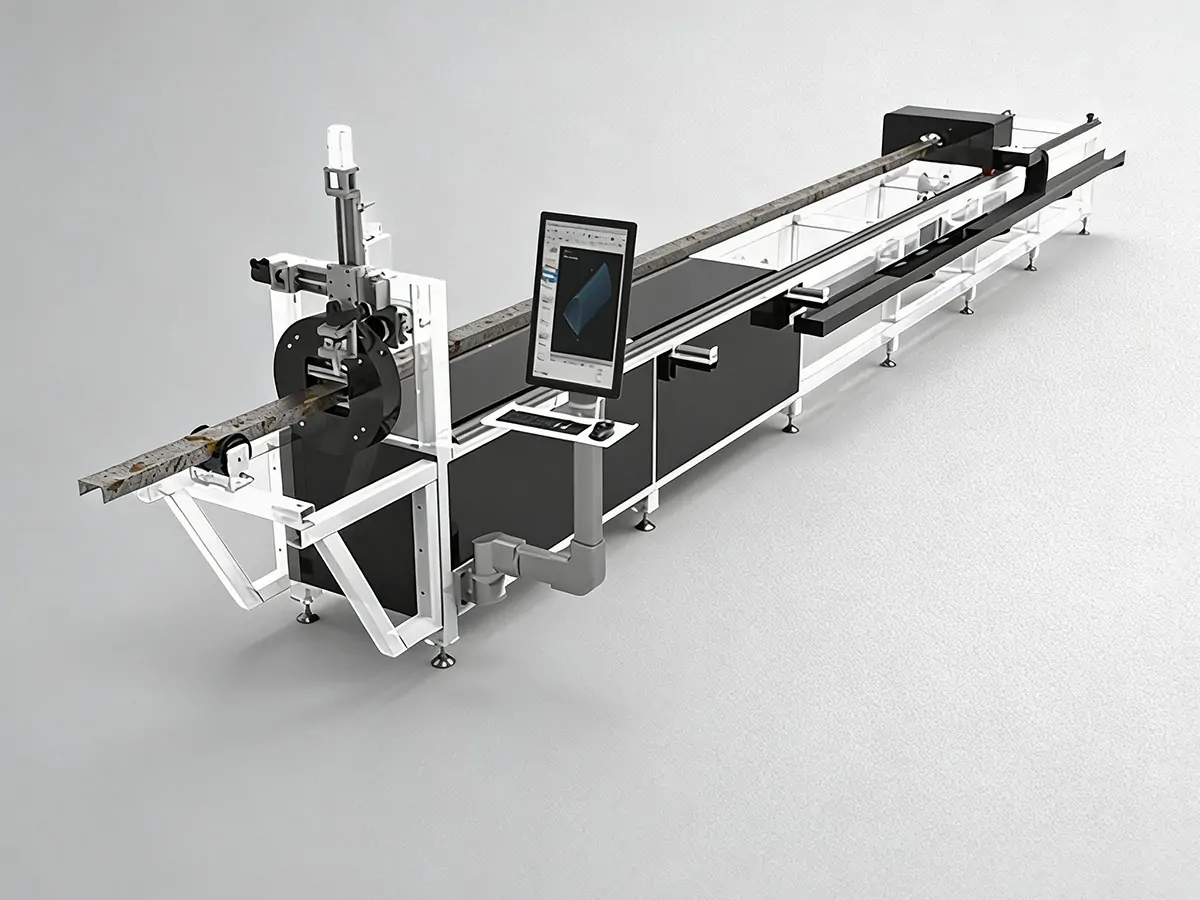

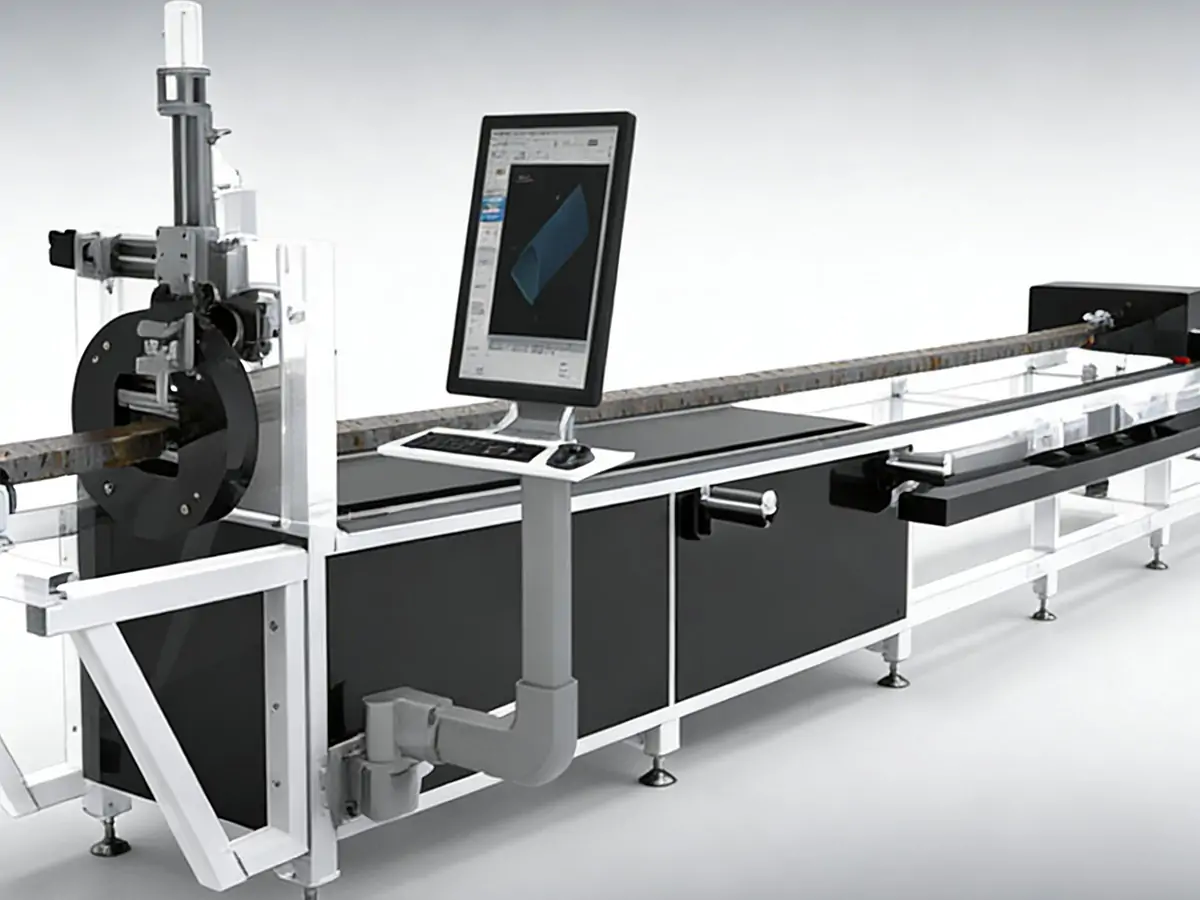

We showcase the Fiber Laser Tube Cutting Machines from various angles, presenting both the complete equipment and its internal components to understand their product design.
High precision CNC Laser Tube Cutting Machine uses a fiber laser as the cutting energy source, converting electrical energy into a stable, high-energy-density laser beam. The laser is stably delivered to the cutting head via the beam delivery system. After focusing through the focusing lens, it forms a tiny high-temperature spot (diameter 0.1-0.3 mm), precisely acting on the surface of the clamped and fixed tube.
Upon laser exposure, localized metal rapidly melts or vaporizes. Simultaneously, auxiliary gas is injected into the cutting zone to promptly blow away molten metal slag. Depending on material properties and process requirements, operators can select oxygen-assisted cutting for enhanced efficiency or inert gas cutting for oxidation prevention, maintaining a clean-cut finish.
The CNC system precisely controls the cutting head’s trajectory alongside tube rotation, feed, and positioning based on preset programs. Combined with proprietary systems and manual front chuck/pneumatic rear chuck designs, it effectively prevents thin-walled tube deformation, enabling high-precision, high-efficiency automated cutting of various profiles, including round tubes, square tubes, H-beams, angle iron, and channel steel.
Refer to the dimensional diagram below for detailed structural and layout specifications.
| Parameter | Specification |
|---|---|
| Laser Power | 1200 W |
| Round Tube Processing Range | Ø10–120 mm |
| Square Tube Processing Range | 10–100 mm |
| X / Y Axis Positioning Accuracy | ±0.1 mm |
| Processing Length Range | ≤ 6200 mm |
The low-power precision Fiber Laser Tube Cutting Machine delivers stable output power, achieving narrow kerfs and sharp contours with smooth edges and minimal burrs. It meets the precision processing demands for thin-walled steel tubes and small-to-medium-sized profiles. Cutting round tubes, square tubes, and common profiles, it produces smooth cuts with consistent edge quality, reducing the need for subsequent grinding and secondary processing steps.
The following images showcase actual cutting results across various forms and multiple equipment configurations.
The high precision CNC Fiber Laser Tube Cutting Machine offers advantages such as high cutting accuracy, low energy consumption costs, and minimal operational barriers. It is ideal for precision processing of various small-to-medium-sized round tubes, square tubes, and thin-walled profiles. Its applications span furniture hardware, tube fabrication, door/window guardrail profile cutting, fitness equipment tubing manufacturing, shelving/support bracket production, kitchen/bathroom hardware tube forming, and agricultural greenhouse frame processing.
Kempson Laser is a Chinese enterprise specializing in the R&D, production, sales, and service of Fiber Laser Tube Cutting Machines. Committed to technological innovation, it has secured over 30 patented technologies and obtained international certifications, including ISO9001, CE, and FDA.
The company maintains a comprehensive global service network, offering a 3-year warranty on lasers and after-sales service centers in 22 countries to provide customers with complete support. Kempson upholds the corporate philosophy of integrity, innovation, and customer service, delivering efficient and reliable laser cutting solutions worldwide. Contact us today for customized cutting solutions.
The machine is capable of precision cutting various metal materials, including stainless steel (up to 6mm), carbon steel (up to 16mm), aluminum, brass, and copper.
It offers high speed and efficiency, significantly reducing processing cycles. The fiber laser source also features a simplified structure with low maintenance costs and no wear-prone cutting tools.
Specifically engineered for diverse shapes, it handles circular, rectangular, flat, and irregular-shaped tubes with optimized motion control for various industrial demands.
It utilizes a high-precision chuck clamping structure and a CNC system that dynamically adjusts laser power and cutting speed in real time, achieving positioning accuracy of ±0.02mm/m.
Routine maintenance primarily involves optical component inspections, cooling system upkeep, and basic cleaning tasks. With its lower power output, the overall maintenance costs and failure rates of low-power tube laser cutting machines remain manageable.
