Power Options: 1100W / 1500W / 2000W (Optional)
Work Mode: Continuous / Pulse dual modes
Cooling Method: Intelligent air cooling
Operation Mode: Panel – APP – Remote Diagnosis
Applicable Materials: Various metal medium and thin plates such as stainless steel, carbon steel, and aluminum alloy

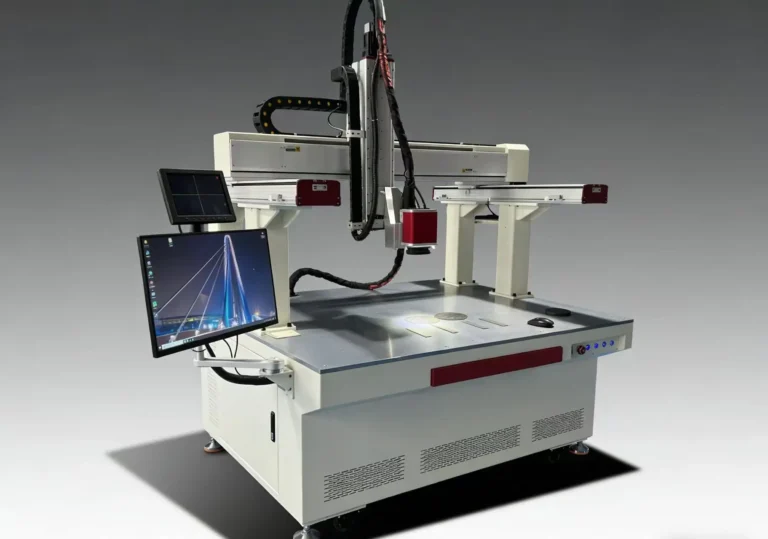

KEMPSON CNC laser welding machine, is an industrial-grade solution specifically built for small and medium-batch standardized production.

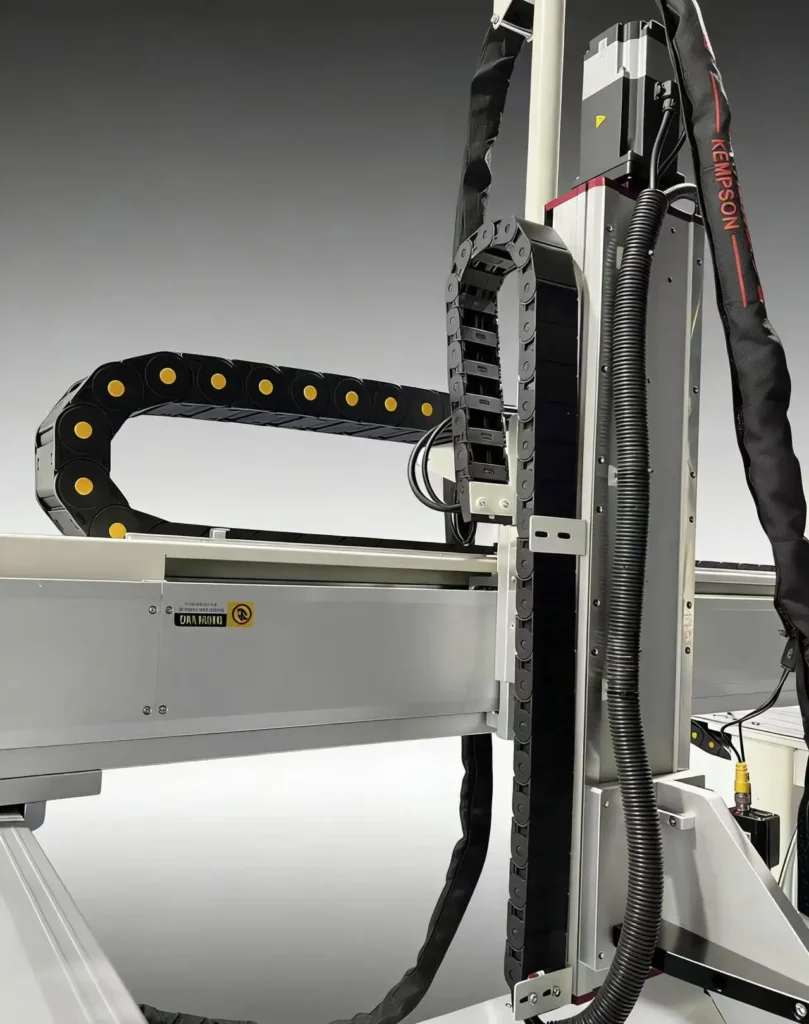

The equipment’s self-developed core system deeply integrates a high-precision Multi-axis linkage platform with high-performance chip lasers, breaking through the problems of difficult operation and poor consistency found in traditional manual welding. The integrated design, paired with a French Schneider electric control system, achieves one-time weld forming with no splash and no deformation, providing a “worry-free, high-precision, and low-cost” professional welding experience.

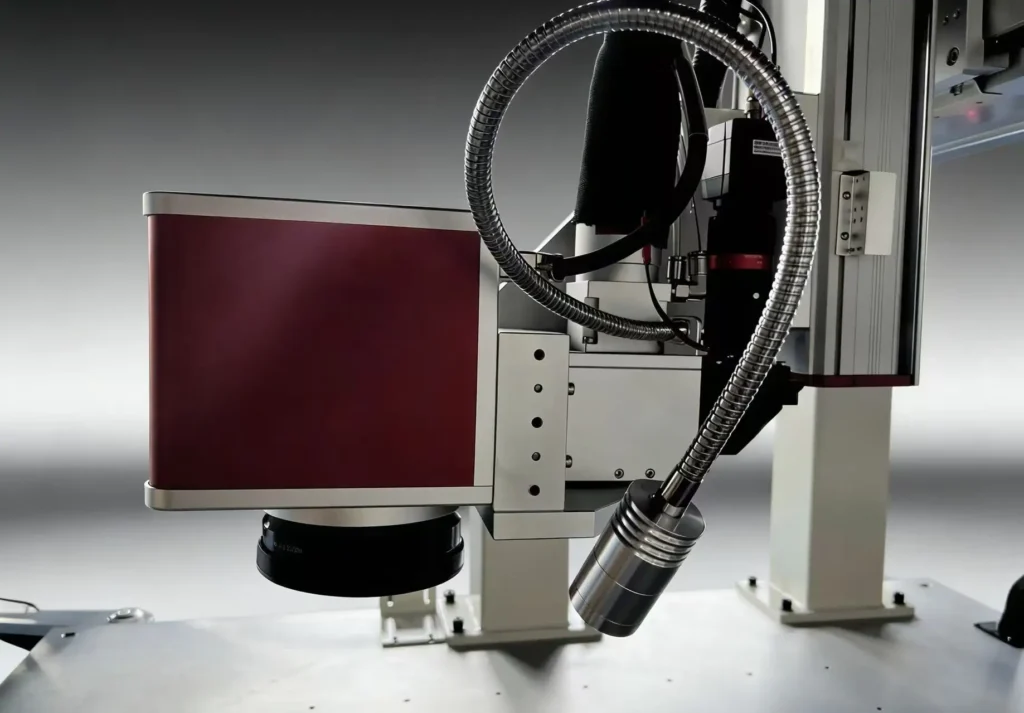

The equipment’s built-in high-performance chip laser generates a high-energy laser beam, which is focused by a precision optical system into a micron-level high-precision spot. The spot acts on the welding area, rapidly melting the metal to form a molten pool. Simultaneously, the four-drive stepper wire feeder precisely delivers welding wire according to set parameters. The molten pool extends accurately following the coordinated movement of the laser head and the CNC platform-type automatic laser welding machine. Utilizing an intelligent air-cooling system for real-time heat dissipation, a smooth and full high-quality weld is formed after cooling, enabling standardized processing with a small heat-affected zone and zero workpiece deformation.
Below is the detailed specification sheet for CNC Laser Welding Machine system, which includes specifications such as power, weldable thickness, and positioning accuracy. The product is designed for welding battery metal tabs. We can customize the equipment to meet your specific needs. Please contact us.
| Technical Indicators | KPS-PASC1100 | KPS-PASC1500 | KPS-PASC2000 |
| Laser Power | 1100W | 1500W | 2000W |
| Work Mode | Continuous — Pulse | Continuous — Pulse | Continuous — Pulse |
| Cooling Method | Built-in Intelligent Air Cooling | Built-in Intelligent Air Cooling | Built-in Intelligent Air Cooling |
| Positioning Accuracy | ±0.02mm | ±0.02mm | ±0.015mm |
| Travel (X/Y/Z) | 800 / 500 / 200 mm | 800 / 500 / 200 mm | 1000 / 600 / 200 mm |
| Weld Width | 1.5～4.5mm | 1.5～5.0mm | 1.5～6.0mm |
| Wire Feeding Mode | Auto (Single/Dual Switch) | Auto (Single/Dual Switch) | Auto (Single/Dual Switch) |
| Wire Diameter | Φ0.8mm—1.6mm | Φ0.8mm—1.6mm | Φ0.8mm—2.0mm |
| Power Consumption | ≤2.8kw | ≤3.0kw | ≤3.5kw |
| Power Requirement | 220v/380v (Optional) | 220v/380v (Optional) | 220v/380v (Optional) |
| Machine Weight | ≈180kg | ≈190kg | ≈210kg |
| Dimensions (L×W×H) | 1.5 × 1.2 × 1.0 m | 1.5 × 1.2 × 1.0 m | 1.6 × 1.3 × 1.1 m |

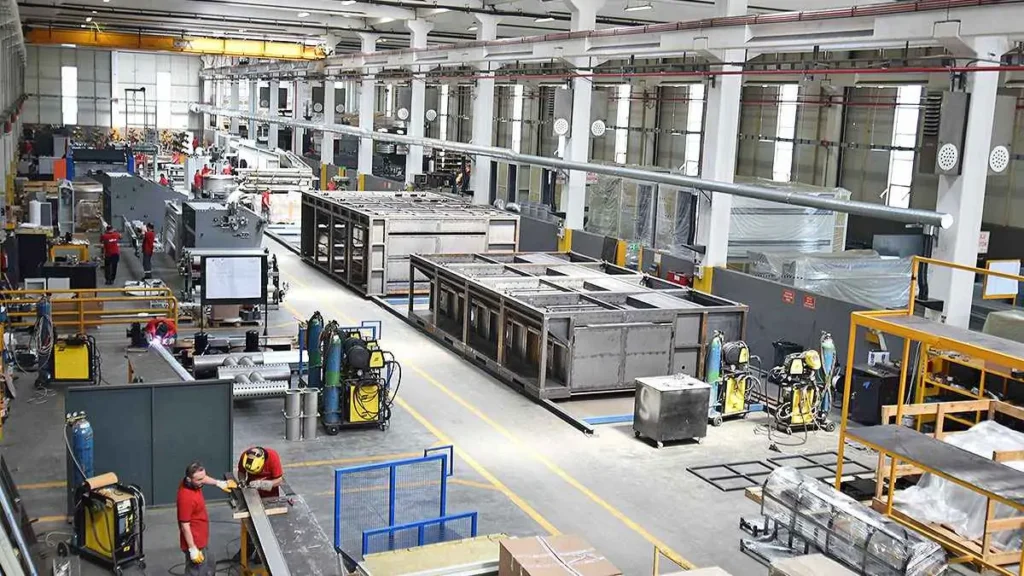

Due to its high precision and standardized processing characteristics, the system is widely used in several rigorous industrial manufacturing fields, such as precision hardware and heavy industrial sheet metal:
| Material Category | 1100W Model | 1500W Model | 2000W Model |
| Stainless Steel | 2.0mm | 2.5mm | 5.0mm |
| Carbon Steel | 2.5mm | 3.0mm | 5.5mm |
| Aluminum Alloy | 2.0mm | 2.0mm | 4.5mm |
We are China’s leading CNC automatic platform welding supplier and manufacturer, focusing on high-performance equipment R&D and production. Our CNC platform-type automatic laser welding machine represents the industry’s cutting-edge technology and embodies our ” Everlens Welding 1+N” brand philosophy. The equipment provides core welding technology along with comprehensive tailor-made solutions and after-sales support.
The company holds more than 30 patent technologies and international certifications such as ISO9001, CE, and FDA. We promise a three-year quality warranty for all equipment, far exceeding industry standards. Whether it is special anti-freeze maintenance for customers in extremely cold regions or process customization for your specific production needs, the KEMPSON expert team will serve you wholeheartedly to ensure your production line achieves long-term stable excellence and performance returns.
Contact our expert team today to get your exclusive customized welding solution and start a new chapter in efficient intelligent manufacturing.

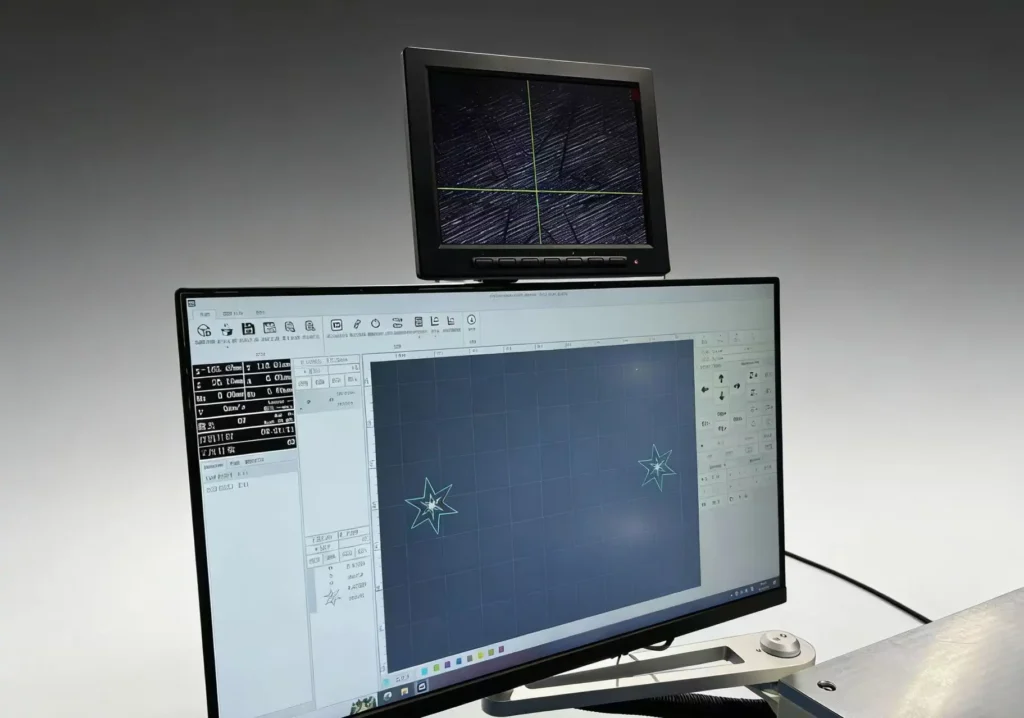

It is very easy to use. The equipment is equipped with a high-definition LCD control panel and supports APP control; the interface is intuitive and supports one-click invocation of process parameters. Beginners can usually perform standardized operations independently after just 1 hour of training

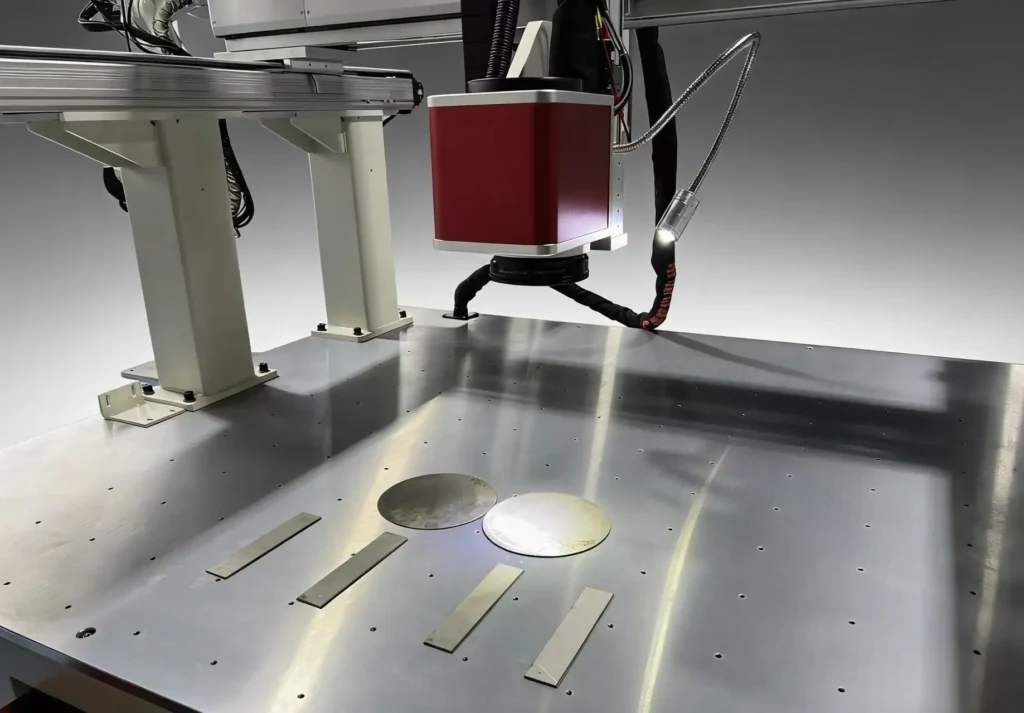

The positioning accuracy is extremely high. Depending on the model, the positioning accuracy is between ±0.02mm and ±0.015mm. Coupled with the high-precision automatic worktable, it can fully meet the welding requirements of high-precision fields such as medical devices and electronic components.
The equipment supports continuous and pulse dual work modes. Welding capability depends on the power; taking the 2000W model as an example, the maximum fillet weld thickness for stainless steel and carbon steel can reach over 5mm, and aluminum alloy can reach 4.5mm.
Relying on the self-developed four-drive stepper wire feeder, the welding speed is increased by 30% compared to competitors’ equipment of the same power. At the same time, the weld is flat and full without splash, eliminating subsequent tedious grinding processes and reducing comprehensive labor costs by more than 50%.
We use a multi-rotation anti-splash black gold laser gun, equipped with repeatable rotating protective lenses and built-in high-temperature alarm protection. This keeps monthly consumable costs at only about 150 RMB, which is 1/5 of competitors, and the service life is 3 times longer.
They self-developed worm gear four-drive stepper wire feeder has a wire-straightening function, which completely solves common wire jamming pain points from a physical structure perspective. Its durability is up to 6 years, far exceeding the plastic wire feeding assemblies commonly used by competitors.
No. The equipment uses an integrated intelligent air-cooling system, ensuring 24-hour continuous operation stability through efficient heat dissipation design, eliminating the trouble and maintenance costs of an external water cooler.
Adhering to the ” Welding 1+N” concept, we provide a three-year warranty for all equipment (far exceeding the industry’s conventional one to two years). We also provide remote diagnosis services and free anti-freeze for customers in extremely cold regions.
Yes. Our integrated automatic design has great adaptability; the worktable travel can be customized and expanded according to your workpiece needs, and optional universal wheels can be installed to adapt to different workshop layouts.
