Introduction
Industrial laser welding machines are transforming the way manufacturers join metal components. By focusing a high-energy laser beam onto a small welding area, these machines create strong, precise welds with minimal heat input and deformation. Compared with traditional welding methods such as MIG or TIG, laser welding offers higher speed, cleaner weld seams, and greater automation potential. As a result, industrial laser welding systems are widely used in sectors such as automotive manufacturing, customizable printer manufacturing, electronics, metal fabrication, and aerospace.
But how do industrial laser welding machines work, what types are available, and which industries benefit the most from this technology? In this article, we will explore their main types, applications, and key advantages.
What Is an Industrial Laser Welding Machine?
An industrial laser welding machine is a high-precision welding system that uses a focused laser beam as a heat source to join metal materials. The laser generates a concentrated, high-energy beam that melts the edges of the workpieces at the welding point. As the molten metal cools and solidifies, it forms a strong and precise weld joint. Because the laser energy can be accurately controlled and directed, industrial laser welding enables deep penetration, narrow weld seams, and minimal heat-affected zones.
Industrial laser welding machines typically use fiber laser technology and are equipped with components such as a laser source, welding head, control system, cooling system, and shielding gas supply. These machines are widely used in industries that require high welding quality, speed, and automation, including automotive manufacturing, sheet metal fabrication, electronics, battery production, and aerospace engineering.
How Industrial Laser Welding Machines Work？
Industrial laser welding machines operate by generating a highly concentrated laser beam that delivers intense heat to a small, precise area of the metal workpiece. The laser energy rapidly melts the edges of the materials being joined, forming a molten pool at the welding point. As the laser beam moves along the joint line, the molten metal cools and solidifies, creating a strong and continuous weld seam.
In a typical industrial laser welding system, a fiber laser source produces the laser beam, which is transmitted through an optical fiber to the welding head. The welding head focuses the beam onto the material surface using precision lenses. At the same time, a shielding gas such as argon or nitrogen is often supplied to protect the molten pool from oxidation and contamination. A cooling system—usually water cooling for high-power machines—maintains stable operating temperatures to ensure consistent welding performance.
Because the laser beam can be precisely controlled in terms of power, focus, and movement, industrial laser welding machines can achieve high welding speed, deep penetration, and minimal heat-affected zones. This makes them ideal for automated production lines and for welding materials such as stainless steel, carbon steel, aluminum, and other metal alloys.
Types Of Industrial Laser Welding Machines
Industrial laser welding machines can be classified based on several factors, including laser source structure, cooling system, power range, automation level, and application scenarios. Depending on production requirements, material types, and automation levels, Kempson offers different types of laser welding machines. Some systems are designed for flexible manual operation, while others are built for high-volume automated production lines. Understanding the main types of industrial laser welding machines can help you choose the right equipment for their specific welding tasks.
Below are several common types of industrial laser welding machines used in various industries.

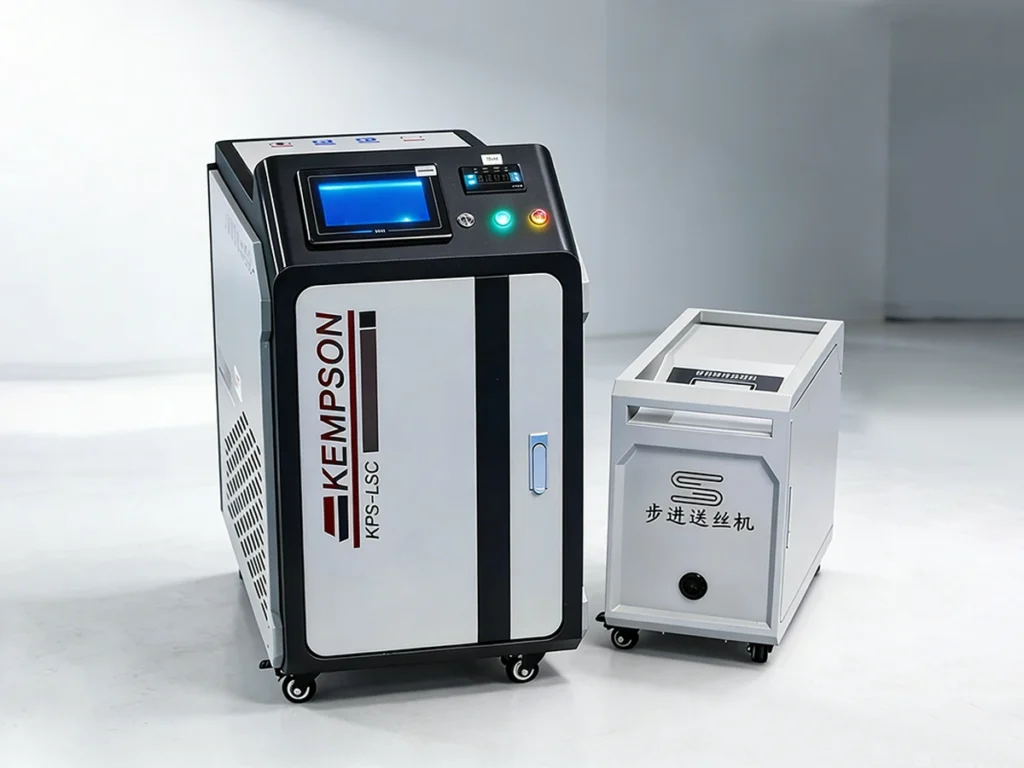

1. Fiber Laser Welding Machine
Fiber laser welding machines use a fiber laser generator combined with optical fiber transmission, producing a highly concentrated and stable laser beam. This structure ensures excellent beam quality, high energy efficiency, and precise weld seams. Fiber laser systems are widely used in industrial manufacturing due to their reliability, low maintenance, and high welding speed.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 1500W – 3000W |
| Welding Thickness | 0.5 – 5.5 mm |
| Suitable Materials | Stainless steel, carbon steel, aluminum alloy, copper |
| Applications | Sheet metal fabrication, automotive parts, metal hardware, machinery manufacturing |

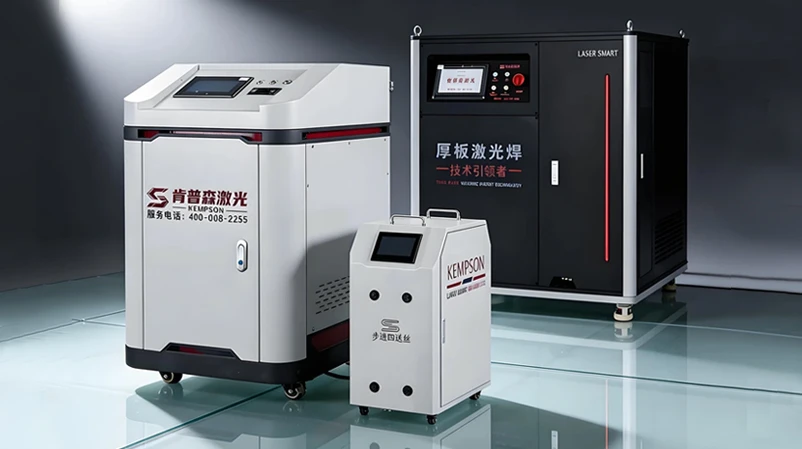

2. Handheld Laser Welding Machine
Handheld laser welding machines are designed with a portable welding gun connected to a fiber laser source, allowing operators to weld materials manually with high flexibility. This type of machine is easy to operate and can handle complex welding joints, corners, and irregular structures, making it ideal for fabrication workshops and on-site welding tasks.
If you want to learn more about this technology, check out our article What is Handheld Laser Welding Machine? for a complete explanation.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 1000W – 3000W |
| Welding Thickness | 0.5 – 6 mm |
| Suitable Materials | Stainless steel, carbon steel, aluminum, galvanized sheet |
| Applications | Stainless steel products, kitchen equipment, metal furniture, door and window frames |

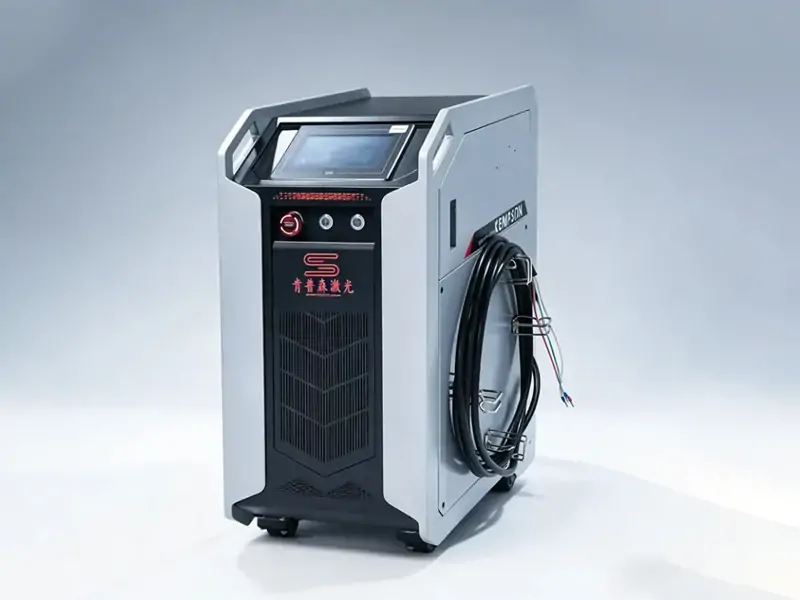

3. Air-Cooled Laser Welding Machine
Air-cooled laser welding machines use an integrated air cooling system instead of a water chiller. The compact structure reduces system complexity and maintenance costs. These machines are usually designed for medium or low power welding tasks, making them suitable for small workshops and light manufacturing applications.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 800W – 2000W |
| Welding Thickness | 0.5 – 5mm |
| Suitable Materials | Stainless steel, carbon steel, thin sheet metals |
| Applications | Small fabrication shops, maintenance work, light metal processing |

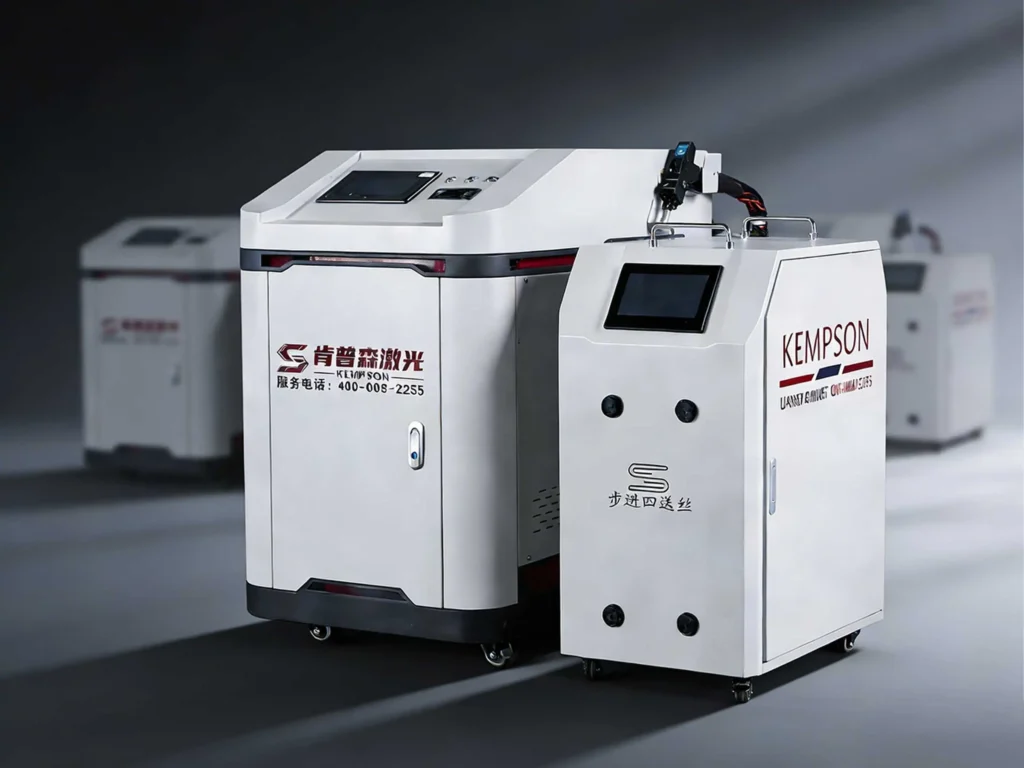

4. Water-Cooled Laser Welding Machine
Water-cooled laser welding machines are equipped with an external industrial chiller that circulates coolant through the laser system to maintain stable temperatures. This cooling method is essential for high-power laser welding because it prevents overheating and ensures consistent beam output during long production cycles.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 1500W – 4000W |
| Welding Thickness | 1 – 12 mm |
| Suitable Materials | Stainless steel, carbon steel, aluminum alloys, copper |
| Applications | Heavy manufacturing, automotive production, industrial equipment fabrication |
5. Automatic Laser Welding Machine
Automatic laser welding machines integrate CNC systems, positioning platforms, and automated control software to perform precise welding operations without manual intervention. These machines are designed for high-volume and high-precision manufacturing, ensuring consistent weld quality and improved productivity.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 1500W – 6000W |
| Welding Thickness | 1 – 10 mm |
| Suitable Materials | Stainless steel, aluminum alloy, carbon steel |
| Applications | Automotive production lines, electronics manufacturing, battery assembly |
6. Continuous Laser Welding Machine
Continuous laser welding machines operate with a continuous wave (CW) laser output, producing a stable and uninterrupted laser beam. This allows deeper penetration and faster welding speeds compared to pulsed systems. Continuous laser welding is commonly used in high-speed industrial production.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 1000W – 6000W |
| Welding Thickness | 1 – 12 mm |
| Suitable Materials | Stainless steel, carbon steel, aluminum alloys |
| Applications | Metal pipe manufacturing, automotive parts, structural metal fabrication |
7. Pulsed Laser Welding Machine
Pulsed laser welding machines generate short bursts of laser energy rather than a continuous beam. This reduces heat input and allows precise control of the welding process. Pulsed systems are particularly suitable for thin materials and precision components where minimal thermal distortion is required.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 200W – 1000W |
| Welding Thickness | 0.1 – 3 mm |
| Suitable Materials | Stainless steel, nickel alloys, titanium |
| Applications | Electronics manufacturing, medical devices, jewelry production |
8. Gantry Laser Welding Machine
Gantry laser welding machines use a large gantry frame structure with a moving welding head, allowing precise welding of large or heavy workpieces. This structure provides excellent stability and is commonly used in large industrial manufacturing environments.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 2000W – 6000W |
| Welding Thickness | 2 – 12 mm |
| Suitable Materials | Carbon steel, stainless steel, aluminum |
| Applications | Shipbuilding, heavy machinery manufacturing, large metal structures |
9. Precision Laser Welding Machine
Precision laser welding machines are designed for high-accuracy welding applications with micro-scale control. These systems often include high-precision positioning platforms, microscopes, or camera monitoring systems to achieve extremely fine weld seams.
Basic Parameters
| Parameter | Description |
|---|---|
| Power | 200W – 1000W |
| Welding Thickness | 0.1 – 2 mm |
| Suitable Materials | Stainless steel, titanium, precious metals |
| Applications | Medical instruments, electronics components, micro-mechanical parts |
Laser Welding Machine Selection Guide
Choosing the right industrial laser welding machine depends on a variety of factors, including the application scenario. The table below provides a quick selection guide for your reference:
| Application Scenario | Recommended Machine Type | Power Range | Suitable Materials | Key Advantages |
|---|---|---|---|---|
| Small workshops / repair jobs | Handheld Laser Welding Machine | 1000W – 1500W | Stainless steel, carbon steel | Portable, flexible, easy operation |
| Stainless steel furniture, kitchen equipment | Handheld Fiber Laser Welding Machine | 1500W – 2000W | Stainless steel | Smooth welds, fast operation, precise |
| Sheet metal fabrication / metal parts factories | Fiber Laser Welding Machine | 1500W – 3000W | Stainless steel, carbon steel, aluminum | High precision, stable performance, continuous production |
| Thin sheet metals, electronics, micro parts | Pulsed Laser Welding Machine | 200W – 500W | Stainless steel, nickel alloys, titanium | Minimal heat input, micro-welding, high accuracy |
| Automotive parts / assembly lines | Automatic Laser Welding Machine | 2000W – 4000W | Carbon steel, aluminum alloy | High efficiency, repeatable precision, suitable for production lines |
| Batteries, electronic components, precision devices | Precision Laser Welding Machine | 300W – 800W | Copper, aluminum, nickel | Ultra-precise welding, minimal distortion, fine seam |
| Heavy machinery, large structures | Water-Cooled Laser Welding Machine | 3000W – 6000W | Carbon steel, stainless steel, aluminum | High power, long duty cycles, stable temperature control |
| Complex geometry / multi-angle welding | Robotic Laser Welding Machine | 2000W – 4000W | Stainless steel, aluminum, carbon steel | Flexible multi-axis welding, automated, high repeatability |
| Large panels / long workpieces | Gantry Laser Welding Machine | 2000W – 6000W | Carbon steel, stainless steel | Stable frame, precise movement, suitable for large parts |
| Mass production with continuous operation | Continuous Wave Laser Welding Machine | 1000W – 6000W | Stainless steel, carbon steel, aluminum alloys | Fast welding, deep penetration, high-speed industrial production |
Benefits of Industrial Laser Welding Machines
High Quality Laser Source: Equipped with China’s leading GW brand lasers, providing stable output, long service life, and superior welding performance.
Comprehensive Warranty & Support: The full machine comes with a 3-year warranty and free replacement during the warranty period, providing peace of mind for industrial use.
Multi-Functional & Efficient: Four-in-one capabilities for welding, cleaning, rust removal, and polishing, enabling single-pass finishing without additional grinding.
Advanced Wire Feeding System: Precision wire feeding with adjustable single/double feed mode, durable for up to six years, ensuring consistent welding quality.
Smart Control & Multi-Language Interface: Intelligent control screen with multiple welding modes and 9 selectable languages for global usability.
Cost-Effective Accessories & Energy Saving: Standard delivery includes lenses and nozzles sufficient for a year of operation; “EverLens Weld 1 + n” system reduces operating costs over time.
Applications of Industrial Laser Welding Machines
Industrial laser welding machines are widely used across multiple industries for precise, high-quality, and efficient metal joining, suitable for both light and heavy-duty manufacturing.
Automotive Manufacturing
Used for welding car body panels, battery trays, and exhaust systems with high precision and minimal distortion.
Kitchen Equipment Manufacturing
Ideal for seamless welding of sinks, stainless steel cabinets, and kitchen appliances, ensuring durability and a clean finish.
Sheet Metal Fabrication
Applied in welding metal enclosures, cabinets, and electrical boxes with high repeatability and accuracy.
Industrial Machinery
Used for welding machine frames, tanks, and structural components to provide strong, reliable joints.
Stainless Steel Products
Perfect for welding furniture, railings, and decorative metal with minimal post-processing required.
Industrial Laser Welding Machines Price Range
The price of an industrial laser welding machine varies depending on several key factors, including laser power, automation level, cooling system, and brand. Higher-power machines can weld thicker materials and achieve faster production speeds, while automated systems provide consistent precision for large-scale manufacturing. The choice between air-cooled and water-cooled systems affects both performance and cost, and machines from premium laser brands typically command higher prices due to stability and reliability. The following is Kempson’s product price list for your reference.
| Product | Type | Model | Price |
| Water-cooled laser welding machine1500/2000w | 1500W Dual-Wire Laser Welding Plus Version | KPS-LHW1500 | $3,357 |
| 2000W Dual-Wire Laser Welding Plus Version | KPS-LHW2000 | $5,429 | |
| Water-cooled laser welding machine 3000/4000w | 3000W 3+1 Wire Feed Laser Welding | KPS-LHW3000 | $9,286 |
| 3500W 3+1 Wire Feed Laser Welding | KPS-LHW3500 | $10,286 | |
| 3000W Laser Rust Removal | KPS-QX3000 | $8,857 | |
| 4000W 3+1 Wire Feed Laser Welding | KPS-GSC4000 | $11,714 | |
| Air laser welding machine（Thin sheet）1500/2000/3000w | 1500W Dual-Wire Air Welding | KPS-ALW1500 | $5,500 |
| 2000W Dual-Wire Air Welding | KPS-ALW2000 | $7,643 | |
| 3000W 3+1 Wire Feed Air Welding | KPS-ALW3000 | $11,714 | |
| Dual-Gun 1500W Dual-Wire Feed Air Laser Welding | KPS-DALW1500 | $8,714 | |
| Air laser welding machine（Thick plate）4000w | Dual-Gun 2000W Dual-Wire Air Welding | KPS-DALW2000Plus | $12,143 |
| Dual-Gun 3000W 3+1 Wire Feed Air Welding | KPS-DALW3000Plus | $12,143 | |
| Single-Gun 4000W 3+1 Wire Feed Air Welding | KPS-ALW4000 | $14,571 | |
| Dual-Gun 4000W 3+1 Wire Feed Air Welding | KPS-DALW4000 | $14,571 |
Why Choose Kempson Industrial Laser Welding Machines
Kempson Industrial Laser Welding Machines are built for reliability, precision, and high performance. With 30+ patented technologies and certifications including CE, ISO, and U.S. FDA, each machine meets strict industry standards. All machines come with a 3-year full warranty.
Kempson provides OEM/ODM solutions and service in 22 countries, backed by extensive global export experience. Our machines combine advanced technology with dependable support, ensuring efficient and precise welding for a wide range of industrial applications.
Contact our team to discuss the best solution for your production needs.
FAQs
What is an industrial laser welding machine?
An industrial laser welding machine uses a high-energy laser beam to join metal components with high precision and minimal heat distortion.
What metals can industrial laser welding machines weld?
They can weld stainless steel, carbon steel, aluminum, titanium, and other metals used in industrial manufacturing.
What thickness can an industrial laser welder handle?
Most industrial laser welders of Kempson can weld 0.5 mm to 12 mm metal thickness, depending on laser power.
What industries use industrial laser welding machines?
Common industries include automotive manufacturing, sheet metal fabrication, kitchen equipment production, and industrial machinery.
How much does an industrial laser welding machine cost?
The price typically ranges from $3,000 to $23,000, depending on machine type, power level, and automation features.
What is the difference between handheld and automatic laser welding machines?
Handheld machines provide flexibility for manual welding, while automatic systems are designed for high-volume industrial production lines.
