Introduction
A 500W Pulsed Laser Cleaning Machine can remove various surface contaminants, including rust, paint, oxide layers, oil, and coatings. It uses controlled laser pulses to clean metal surfaces without abrasive media or chemical solutions.
In industrial cleaning, common challenges include rust buildup, coating removal, oil contamination, oxide layers, and welding residues. Traditional methods may generate waste or affect the surface during cleaning, leading manufacturers to consider laser cleaning for more controlled surface treatment.
This article explains what contaminants a 500W pulsed laser cleaning machine can remove, the materials it can clean, and its common industrial applications.
How Does a 500W Pulsed Laser Cleaning Machine Work?
A 500W pulsed laser cleaning machine uses short, high-energy laser pulses to remove contaminants from the surface without direct contact. The laser energy is precisely controlled to clean rust, paint, oxide layers, oil, and other residues while reducing the impact on the base material.
The cleaning process includes four steps:
- Laser pulses reach the contaminated layer: The laser beam is focused on the surface, delivering energy to the unwanted material.
- Contaminants absorb laser energy: Rust, paint, oil, or oxide layers absorb the laser energy at a different rate from the substrate.
- Contaminants are separated from the surface: The absorbed energy causes thermal expansion, vaporization, or rapid separation of the contamination layer.
- The substrate remains largely unaffected: With suitable parameter settings, the original material surface is maintained during cleaning.

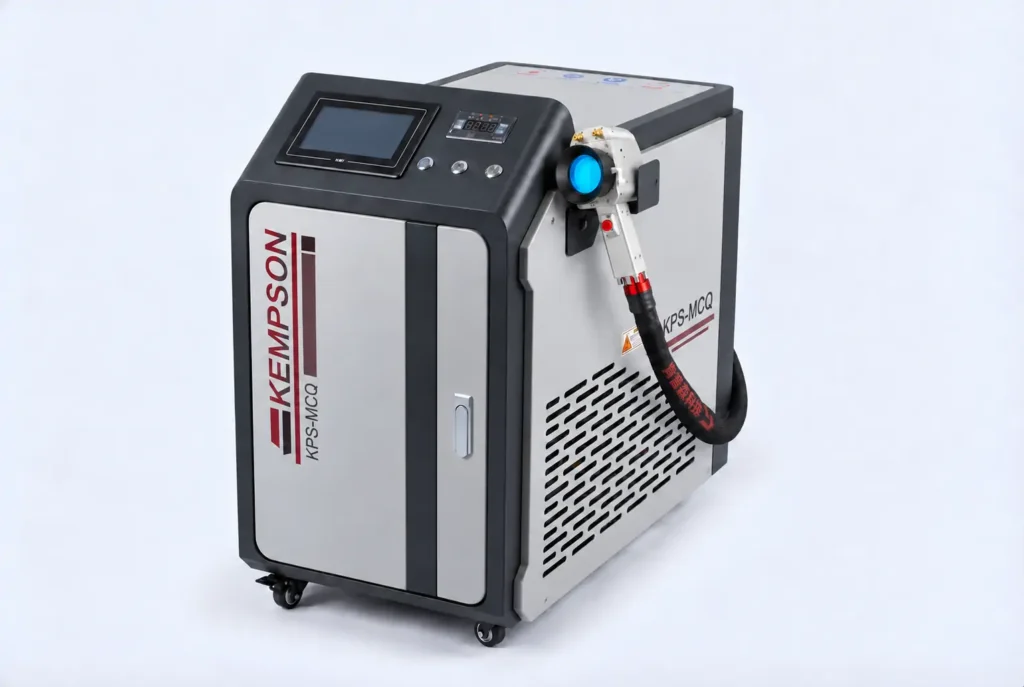

KEMPSON 500W pulsed laser cleaning machines use a MOPA pulse fiber laser source with a 1064nm wavelength and adjustable pulse parameters for different cleaning applications. The handheld cleaning system is suitable for industrial surface treatment, including rust removal, coating removal, welding preparation, and component maintenance.
What Can a 500W Pulsed Laser Cleaning Machine Remove?
A 500W pulsed laser cleaning machine can remove various surface contaminants, including rust, coatings, oil, oxide layers, and manufacturing residues. It is commonly used for metal surface treatment where controlled cleaning and low surface impact are required.
Rust
A 500W pulsed laser can remove rust layers from metal surfaces without abrasive media.
Applications: Carbon steel parts, Stainless steel components, and Aluminum surfaces
Oxide Layers
Laser energy can remove oxide films and surface oxidation for improved surface conditions.
Applications: Aluminum oxide removal, Metal surface preparation, and Welding area cleaning
Paint and Coatings
A 500W pulsed laser removes unwanted paint and coatings without chemical strippers.
Applications: Paint removal before repainting, Coating removal before welding, and Surface preparation
Oil and Grease
Laser cleaning can remove oil residues and grease contamination from industrial components.
Applications: Machine parts, Automotive components, and Metal processing equipment

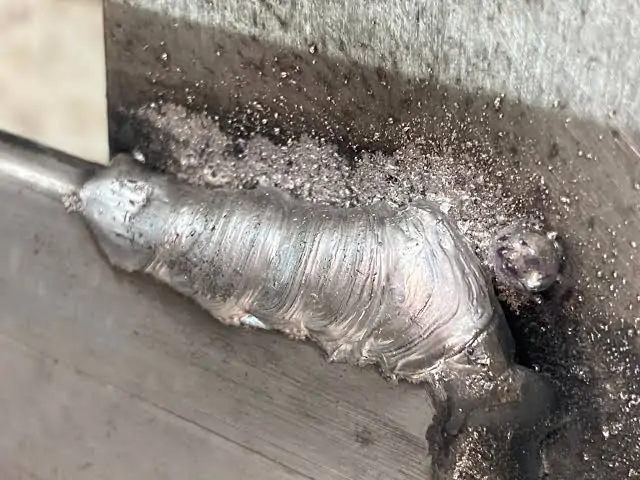

Welding Residues
A pulsed laser can clean welding areas by removing oxides and residues after or before welding.
Applications: Weld seam cleaning, Pre-welding surface preparation, and Post-welding treatment

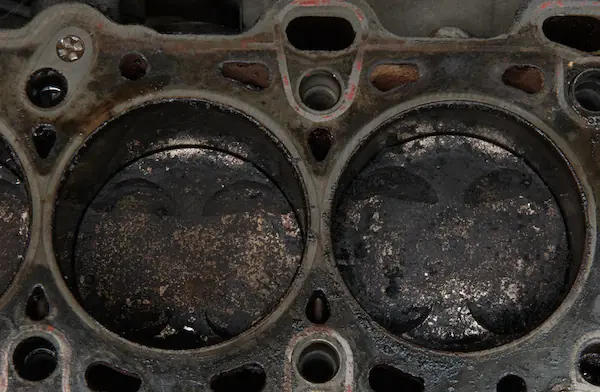

Carbon Deposits and Manufacturing Residues
Laser cleaning can remove carbon buildup, dust, and production residues from equipment surfaces.
Applications: Industrial maintenance, Mold cleaning, and Component refurbishment
Is pulsed laser cleaning safe, and what factors influence it? For more details, see: Can Pulsed Laser Cleaning Damage the Surface? Understanding Laser Cleaning Safety
What Materials Can a 500W Pulsed Laser Cleaning Machine Clean?
A 500W pulsed laser cleaning machine can clean various metal materials. The cleaning results depend on the material condition, contamination type, and laser parameter settings.
Stainless Steel
Suitable for removing rust, oxide layers, and surface residues from stainless steel surfaces.
Carbon Steel
Suitable for removing rust, coatings, and surface contamination from carbon steel parts.
Aluminum
Used for removing oxide layers and surface contaminants from aluminum materials.
Copper
Suitable for removing oxide layers and residues from copper surfaces.

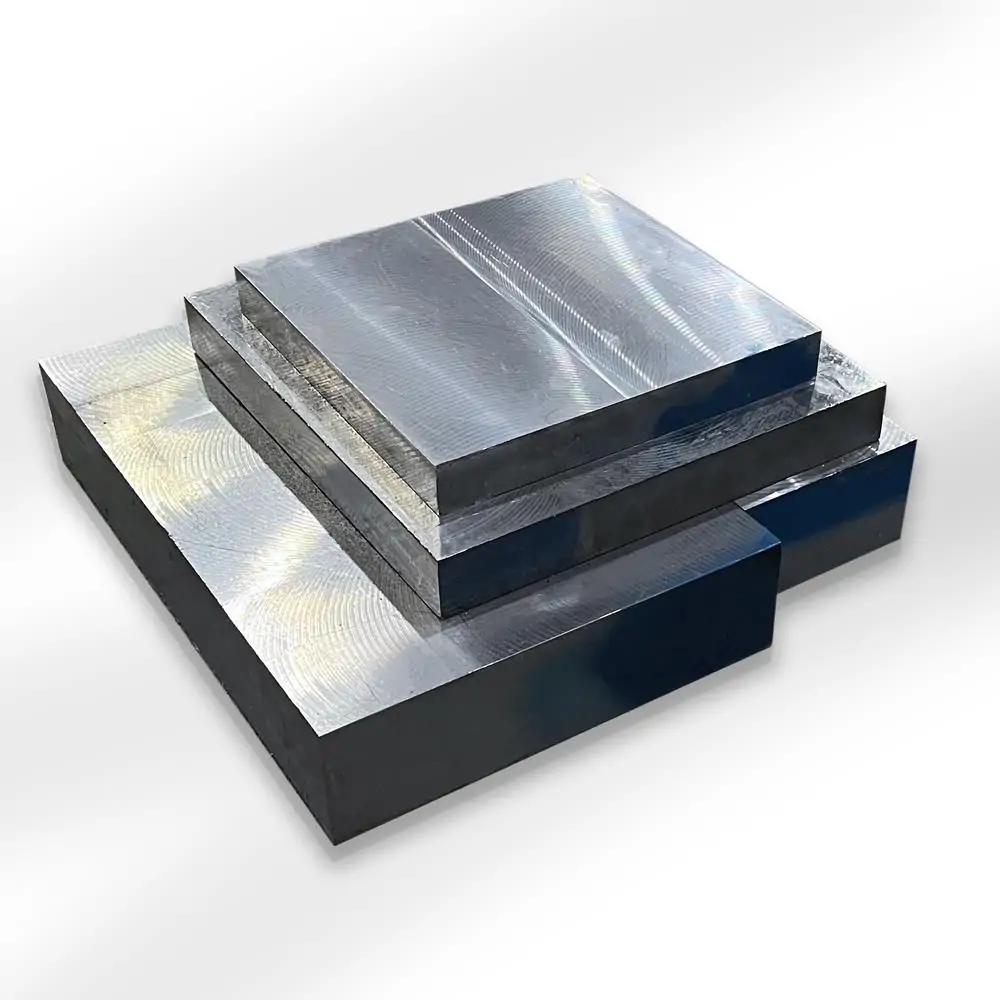

Mold Steel
Used for removing buildup and residues from mold steel surfaces.
The cleaning parameters should be adjusted according to the material characteristics, contamination condition, and required cleaning quality.
500W Pulsed Laser Cleaning Applications
A 500W pulsed laser cleaning machine is used in various industries for removing rust, coatings, oil, oxides, and surface residues. Its non-contact cleaning process makes it suitable for applications that require controlled surface treatment.
Automotive Industry
Used for cleaning automotive components and preparing surfaces before further processing.
Applications:
- Mold cleaning
- Component cleaning
- Welding preparation
Metal Fabrication
Used for surface treatment of metal parts before welding, coating, or maintenance.
Applications:
- Rust removal
- Coating removal
- Surface preparation
Mold Maintenance
Used to remove residues and buildup from mold surfaces without mechanical wear.
Applications:
- Plastic mold cleaning
- Residue removal

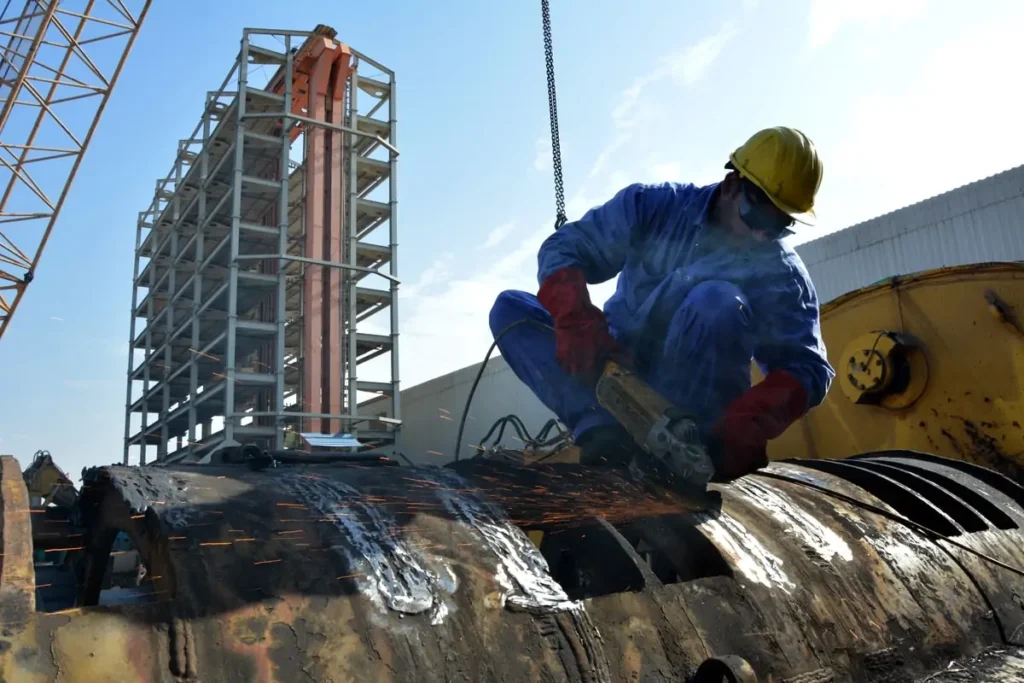

Equipment Maintenance
Used for cleaning and restoring industrial equipment components.
Applications:
- Machine parts cleaning
- Surface restoration
What Cannot Be Removed by a 500W Pulsed Laser Cleaning Machine?
A 500W pulsed laser cleaning machine is suitable for removing surface contaminants, but it is not designed for every cleaning task. Some heavy or deep materials may require higher-power equipment or other treatment methods.
- 1. Extremely Thick Coatings: Very thick paint, rubber, or multi-layer coatings may require higher laser power or additional removal processes.
- 2. Deep Structural Corrosion: Severe corrosion that affects the base material cannot be removed by laser cleaning alone.
- 3. Large-Scale Bulk Material Removal: Large amounts of material removal on large structures may be more suitable for sandblasting or other high-capacity methods.
- 4. Heavy Material Deposits: Thick concrete, large-scale deposits, or strongly bonded materials may exceed the cleaning capacity of a 500W system.
A 500W pulsed laser cleaning machine is best suited for controlled surface cleaning, rust removal, coating removal, and precision applications where surface protection is required. For heavier cleaning tasks, the suitable power level and process should be selected based on the actual application.
500W vs Higher Power Laser Cleaning Machines
Laser power affects cleaning speed, contamination removal capacity, and application range. A 500W pulsed laser cleaning machine is designed for controlled surface treatment, while higher-power systems are more suitable for heavy contamination and large-scale cleaning.
| Factor | 500W Pulsed Laser | Higher Power Laser |
|---|---|---|
| Cleaning Speed | Medium | Higher |
| Precision | High | High |
| Suitable Contamination | Light to medium contamination | Heavy contamination |
| Application | Precision cleaning and surface treatment | Large-scale industrial cleaning |
A 500W pulsed laser cleaning machine is suitable for applications that require controlled cleaning, surface protection, and flexible operation rather than maximum removal speed.
View KEMPSON’s laser cleaning machines with different power ratings and output configurations:
Laser Cleaning Machine: Laser Cleaning Machine
Power Ratings and Output Configurations:
- How to Choose a Pulsed Laser Cleaning Machine for Different Applications?
- Pulsed Laser Cleaning Machine vs. Continuous Laser Cleaning Machine: Differences and Selection Guide
How to Choose a 500W Pulsed Laser Cleaning Machine?
Choosing a suitable 500W pulsed laser cleaning machine depends on the material, contamination type, cleaning requirements, and operating conditions.
- Contamination Type: Identify the type and thickness of contaminants, such as rust, paint, oil, oxide layers, or coatings, to determine suitable laser parameters.
- Material Type: Different materials, including stainless steel, carbon steel, aluminum, and copper, require different cleaning settings to achieve the desired results.
- Cleaning Area: Consider the size and shape of the cleaning surface to select the suitable scanning system, lens configuration, and operation method.
- Production Requirements: Select the machine configuration based on operation mode, such as handheld cleaning, automated integration, or continuous production use.

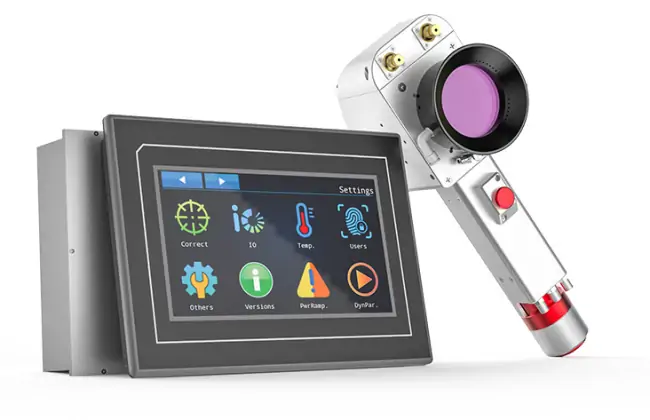

- Laser Configuration: Check key specifications, including laser source type, pulse parameters, cooling system, and control functions, to match the application requirements.
A proper configuration helps achieve stable cleaning performance and avoid selecting unsuitable power or equipment options.
Conclusion
A 500W Pulsed Laser Cleaning Machine is suitable for removing rust, paint, oxide layers, oil, and other surface contaminants from metal parts. Compared with traditional cleaning methods, it provides a non-contact process with better control over cleaning depth and surface impact, making it suitable for precision surface treatment.
KEMPSON develops 500W pulsed laser cleaning solutions for different materials, contamination conditions, and production requirements. Contact us to discuss your cleaning application and get a suitable machine configuration for your process.
FAQ
What can a 500W pulsed laser cleaning machine remove?
A 500W pulsed laser cleaning machine can remove rust, oxide layers, paint, coatings, oil, grease, welding residues, and other surface contaminants. It is commonly used for metal surface cleaning and preparation.
Can a 500W laser cleaning machine remove rust?
Yes. A 500W laser cleaning machine can remove rust and oxidation from materials such as carbon steel, stainless steel, and aluminum. The cleaning effect depends on rust thickness, material condition, and laser parameter settings.
Can a 500W pulsed laser remove paint?
Yes. A 500W pulsed laser can remove paint and coatings from metal surfaces without chemical strippers. It is suitable for applications such as repainting preparation and coating removal before welding.
What materials can a 500W laser cleaning machine clean?
A 500W laser cleaning machine can clean various metals, including stainless steel, carbon steel, aluminum, copper, and mold steel. The suitable parameters depend on the material properties and contamination type.
Is 500W laser cleaning suitable for industrial applications?
Yes. A 500W pulsed laser cleaning machine is suitable for industrial applications such as mold maintenance, automotive parts cleaning, welding preparation, metal surface treatment, and equipment maintenance.
What is the difference between 500W and 1000W laser cleaning machines?
The main difference is cleaning speed and removal capacity. A 500W laser is suitable for precision cleaning and light to medium contamination, while a 1000W laser provides higher cleaning efficiency for heavier contamination and larger workloads.
Can laser cleaning damage metal surfaces?
When the laser parameters are correctly adjusted, pulsed laser cleaning has a low risk of damaging metal surfaces. The process removes contaminants while minimizing impact on the base material.
How much does a 500W pulsed laser cleaning machine cost?
The price depends on the laser source, system configuration, cooling method, cleaning head, and customization requirements. Contact KEMPSON for a suitable configuration based on your application and budget.
