The portable laser rust removal machine, also called a Handheld Laser Cleaning Machine, is specifically designed for industrial rust removal and surface pretreatment, making it suitable for a wide range of applications—from removing light oxidation layers to eliminating heavy rust. It uses a high-energy-density laser beam for non-contact cleaning, effectively removing rust, oxidation layers, oil stains, and coatings without damaging the substrate. Compared to sandblasting, grinding, or chemical cleaning, this laser rust cleaning machine is more environmentally friendly, offers higher precision, and requires no consumables, thereby reducing operating costs and post-processing burdens.
If you are looking for a portable laser rust removal machine, choosing the right power and laser type is key. We offer two solutions: the continuous-wave model (2000W / 3000W) is suitable for large-area, high-intensity industrial rust removal (such as steel structures and ship maintenance). The pulsed model (50W–2500W) is ideal for precision cleaning and the removal of highly adherent contaminants, balancing efficiency with substrate protection.
As a professional manufacturer of laser welding and cleaning machines, Kempson offers a comprehensive range of fiber laser cleaning machines widely used for rust removal, paint stripping, and industrial maintenance. Our equipment is stable and reliable, featuring multilingual control and parameter storage capabilities, and can be customized in terms of power, structure, and automation configurations to meet specific requirements.
Whether you need a flexible handheld unit or a high-power industrial solution, please contact us for product recommendations, sample testing, and quotes to help you achieve efficient, eco-friendly, and non-destructive cleaning.
A portable laser rust removal machine is a device that uses high-energy-density laser beams for surface rust removal and cleaning; it is also known as a handheld laser cleaning machine or fiber laser cleaning machine. By applying the laser instantaneously to rust, oxidation layers, or coatings, the machine rapidly strips away or vaporizes contaminants, achieving highly efficient, non-destructive cleaning.
This equipment offers advantages such as portability, non-contact operation, no consumables, and environmental friendliness with zero pollution. It enables precise rust removal on complex structures or localized areas and is widely used in metal processing, ship repair, automotive manufacturing, and steel structure maintenance, making it an ideal choice for upgrading industrial surface treatment processes.
A portable laser rust removal machine works by emitting a high-energy laser beam onto the metal surface, where rust and contaminants absorb the laser energy more readily than the base material. This causes the rust layer to rapidly heat, expand, and either vaporize or detach from the surface, achieving efficient, non-contact cleaning without damaging the substrate.
The process can be briefly broken down into three key steps:
Portable laser rust removal machines offer an advanced, eco-friendly solution for removing rust, oxide layers, coatings, and contaminants from metal surfaces without damaging the base material. Compared with traditional methods such as sandblasting or chemical cleaning, laser technology provides higher precision, lower maintenance, and safer operation.
Kempson provides two types of portable laser rust removal machines to meet different industrial needs: High-Power Continuous Laser Rust Removal Machines (2000W/3000W) for fast, large-area rust removal, and Pulsed Portable Laser Rust Removal Machines (1000W–2500W) for precise, low-damage cleaning on sensitive surfaces. It is widely used in manufacturing, shipbuilding, construction, and equipment maintenance.
The industrial laser rust removal machine is an eco-friendly, high-tech surface cleaning device designed for heavy industrial applications. Equipped with a highly efficient water-cooled cooling system, it is capable of continuous 24/7 operation. The cleaning width is adjustable from 5 to 30 cm, with a cleaning rate of 1.2 square meters per minute. It rapidly removes heavy contaminants such as thick rust, oxide layers, and paint, and is widely used for ship rust removal, steel structure pretreatment, and the maintenance and refurbishment of heavy equipment.
The portable laser cleaning machine is specifically designed for diverse applications such as outdoor operations, mass production, and precision component processing. Available in backpack, suitcase, and cabinet configurations, it offers the advantages of being eco-friendly, energy-efficient, and easy to operate, providing comprehensive cleaning solutions for the aerospace, automotive manufacturing, mold cleaning, cultural relic restoration, and industrial production sectors.
A portable laser rust removal machine is suitable for cleaning various metals, including carbon steel, stainless steel, aluminum alloys, and copper, as well as select non-metallic surfaces such as stone and molds. It efficiently removes rust, oxidation layers, and various contaminants without damaging the base material. It is suitable for both the meticulous cleaning of precision components and the rapid treatment of large-scale structures.
We provide tailored laser power, cable lengths, and specialized cleaning configurations to meet your specific production needs.
| Specification | General Range / Options |
|---|---|
| Laser Power | 50W – 3000W |
| Laser Type | Fiber Laser (Single-mode / Multi-mode) |
| Laser Source Lifetime | Up to 100,000 hours |
| Applicable Materials | Stainless Steel, Carbon Steel, Aluminum Alloy, Copper, Stone, Wood |
| Cleaning Types | Rust, Oil, Oxide Layer, Coating, Paint, Dust |
| Cleaning Efficiency | 1–1.8 ㎡/min |
| Scanning Speed | 12,000 – 30,000 mm/s |
| Cleaning Width | 0 – 300 mm (Adjustable) |
| Scanning Modes | Multiple scanning modes (9+ supported) |
| Fiber Length | 5m / 10m (Standard) / Customizable |
| Cooling System | Air Cooling / Water Cooling |
| Operation Mode | Continuous / Pulsed |
| Power Supply | AC 220V / 380V ±10%, 50/60Hz |
| Control System | Touchscreen Intelligent Control, Multi-language Support |
| Operation Method | Handheld / Automated |
| Machine Structure | Backpack / Trolley Case / Cabinet Type |
| Machine Weight | Approx. 7kg – 300kg |
Marine and Offshore Engineering: Removes heavy rust and marine corrosion layers from ship hulls, decks, and offshore equipment surfaces, offering high cleaning efficiency without causing secondary pollution.

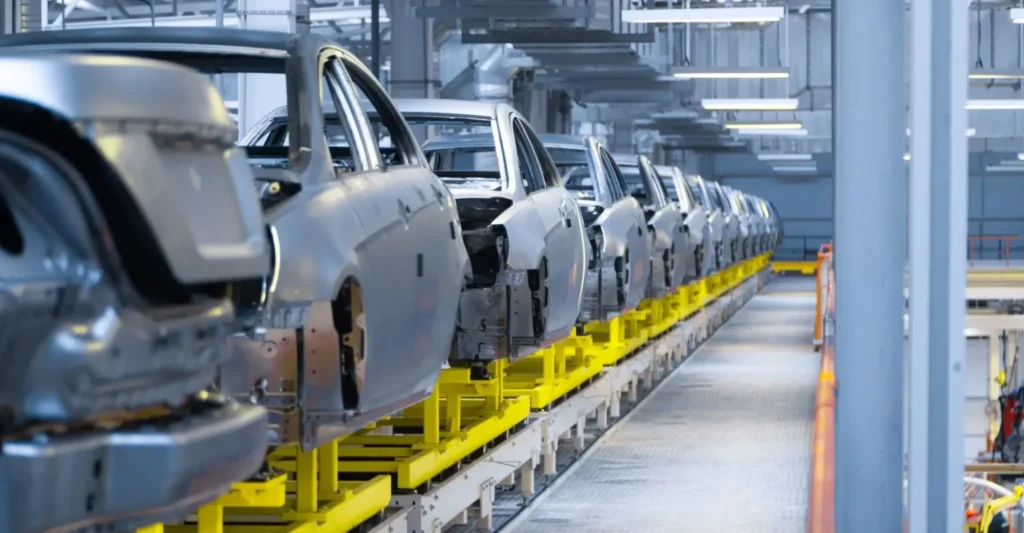

Automotive Manufacturing and Repair: Removes paint coatings, rust from components, and post-welding residues from vehicle bodies. Offers high cleaning precision without damaging the base material, making it suitable for mass production and repair applications.

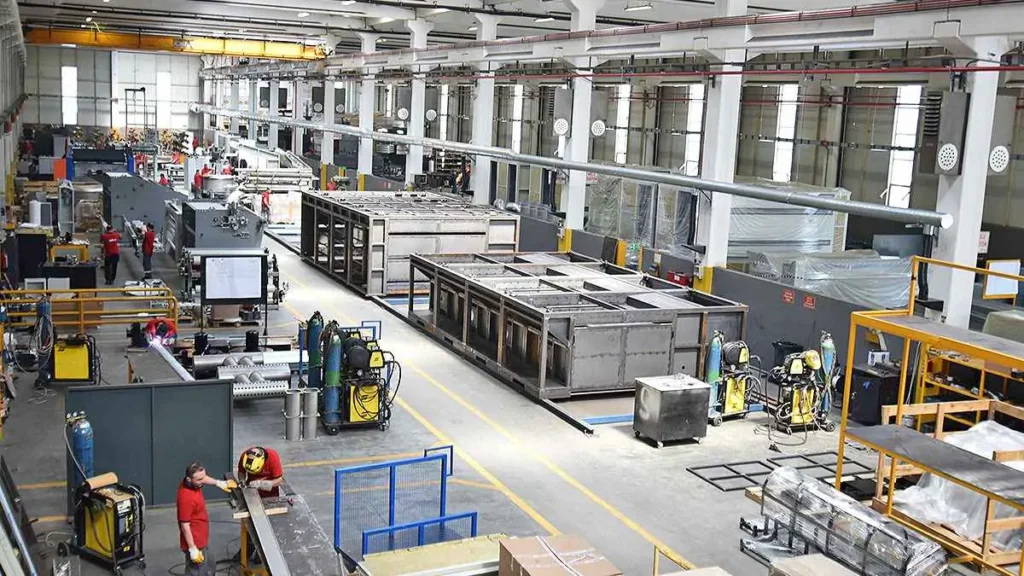

Molds and Precision Machining: Removes oil, carbon deposits, and trace oxidation layers from mold surfaces, ensuring non-destructive cleaning that preserves dimensional accuracy and surface quality.
Industrial Equipment Maintenance: Removes oil residue and corrosion from machinery, pipelines, and production line components to minimize downtime and improve maintenance efficiency.
Metalworking and Sheet Metal Fabrication: Removes rust, oxidation, and machining residues from metal surfaces to enhance the quality of subsequent welding, coating, and assembly processes.
Artifact Restoration and Stone Cleaning: Removes surface stains and deposits through non-contact, non-destructive cleaning to preserve the original structure and details.
Laser rust removal machines offer an advanced, efficient, and environmentally friendly solution for metal surface treatment. By precisely directing a high-energy-density laser beam at rust, oxidation layers, or old coatings, they achieve rapid stripping and cleaning while causing virtually no thermal impact or mechanical damage to the base material.
Compared to traditional methods such as sandblasting, grinding, or chemical rust removal, laser rust removal offers greater flexibility and adaptability. It can efficiently operate on complex structures or localized areas, reducing dust and waste liquid emissions while lowering subsequent processing costs.
To help you choose the cleaning method best suited to your specific operating conditions, here is a detailed comparison based on industrial applications:
| Comparison Dimension | Laser Rust Removal | Sandblasting | Grinding | Chemical Cleaning |
|---|---|---|---|---|
| Removal Method | Laser non-contact | Mechanical impact | Mechanical friction | Chemical reaction |
| Impact on Substrate | No thermal or mechanical damage | Surface roughening, minor damage | Wears fine details | Chemical corrosion, material damage |
| Suitability for Precision Parts | Handles complex shapes and small parts | Difficult for narrow or complex areas | Not suitable for precision parts | Difficult to control locally, requires protection |
| Environmental Impact | No dust, no wastewater | Generates dust, requires collection | Produces dust and metal debris | Produces wastewater, requires neutralization |
| Operational Flexibility | Handheld or mobile, precise control | Mainly for large flat areas | Limited by manual work, time-consuming | Requires soaking or spraying, space limitations |
| Post-processing Requirements | No secondary cleaning needed | Requires debris and dust cleanup | Requires debris cleanup | Requires wastewater treatment and rinsing |
| Work Efficiency | Fast, supports continuous operation | Fast for large areas, slow for details | Time-consuming manual process | Depends on chemical reaction time, variable cycle |
| Operation Difficulty | Easy to use, parameter-controlled | Requires skilled operation | Depends on operator experience | Requires chemical handling expertise |
| Operating Cost | Low (long-term) | Medium (consumables + labor) | Medium (labor + consumables) | High (chemicals + environmental costs) |
Choosing the right portable laser rust removal machine helps improve rust removal efficiency, reduce labor costs, and guarantee consistent cleaning results. Factors such as material type, processing requirements, and operating environment all influence equipment selection and return on investment. Understanding these key factors is essential for selecting the laser rust removal solution that best suits your production needs.
Opt for appropriate power based on the thickness of the material to be treated and the degree of contamination. High-power models (2000–3000 W) are suitable for thick rust layers and large-scale industrial structures, while medium- and low-power models (below 2000 W) are better suited for precision parts or surfaces sensitive to heat-affected zones.
Continuous-wave lasers are suitable for rapid, high-intensity removal of rust and old coatings over large areas, while pulsed lasers excel in precision processing, localized cleaning, and the removal of highly adherent contaminants.
Air-cooled systems feature a lightweight design, making them ideal for mobile field operations. Water-cooled systems are suitable for prolonged continuous operation and high-intensity industrial environments, ensuring stable equipment performance.
Backpack-style units are suitable for flexible, mobile operations, while suitcase-style or cabinet-style units are suitable for fixed or semi-fixed operating scenarios. When selecting equipment, consider the available workspace, ease of transport, and operational comfort.
Need help selecting the perfect model for your needs? Contact our team today for expert guidance and personalized recommendations.
Kempson boasts an independent R&D team and a team of senior engineers, focusing on cutting-edge laser welding technology development and committed to providing high-performance and cost-effective customized solutions for various industrial applications.
With 30+ patents, all machines are CE, ISO, and FDA certified. We offer a 3-year warranty, free sample welding tests, and lifetime after-sales support to ensure long-term reliability.
We support comprehensive OEM/ODM cooperation, providing personalized services such as system design, hardware and software integration, special accessory development, and brand logo customization, precisely tailored to different markets and application scenarios.
We offer free sample welding testing services: simply send us your materials or provide your process requirements, and we will perform welding tests, record process videos, and return the physical samples, providing you with objective and reliable purchasing information.
Laser rust removal eliminates the need for sandblasting, chemicals, or consumables, reducing labor and secondary cleanup costs. Although the initial equipment investment is higher, the long-term operating costs are low, maintenance is simple, and efficiency is high. This approach can significantly reduce material waste and environmental disposal costs, making it suitable for large-scale industrial applications and the cleaning of precision parts.
Portable handheld laser rust removal systems are lightweight and designed for flexible mobility, adapting to various environments. Their continuous or pulsed laser modes can quickly remove rust, oxidation layers, and coatings without the need for fixed installation. They are suitable for outdoor maintenance of ships, steel structures, and industrial equipment, offering environmentally friendly and efficient operation without dust pollution.
Low-power models (50–1000W) are suitable for precision parts, molds, and thin metal components, while medium-to-high-power models (1000–3000W) can handle steel structures, ship hulls, and heavy industrial equipment. They typically support carbon steel, stainless steel, aluminum alloys, copper, and coated metals, efficiently removing rust, oxidation layers, and old coatings while protecting the base material from damage.
Laser rust removal uses a non-contact, high-energy beam that acts instantaneously on the contaminated layer, resulting in minimal heat affect and virtually no damage to the substrate. By precisely controlling the scanning speed, power, and mode, it enables non-destructive cleaning tailored to different materials and thicknesses.
Our laser rust removal machines can be integrated with robots or automated platforms to achieve precise, efficient, and continuous operation. By configuring power, scanning modes, and operation paths through the control system, they are suitable for assembly lines, batch production, or cleaning complex structures, thereby enhancing operational safety and overall production efficiency.
