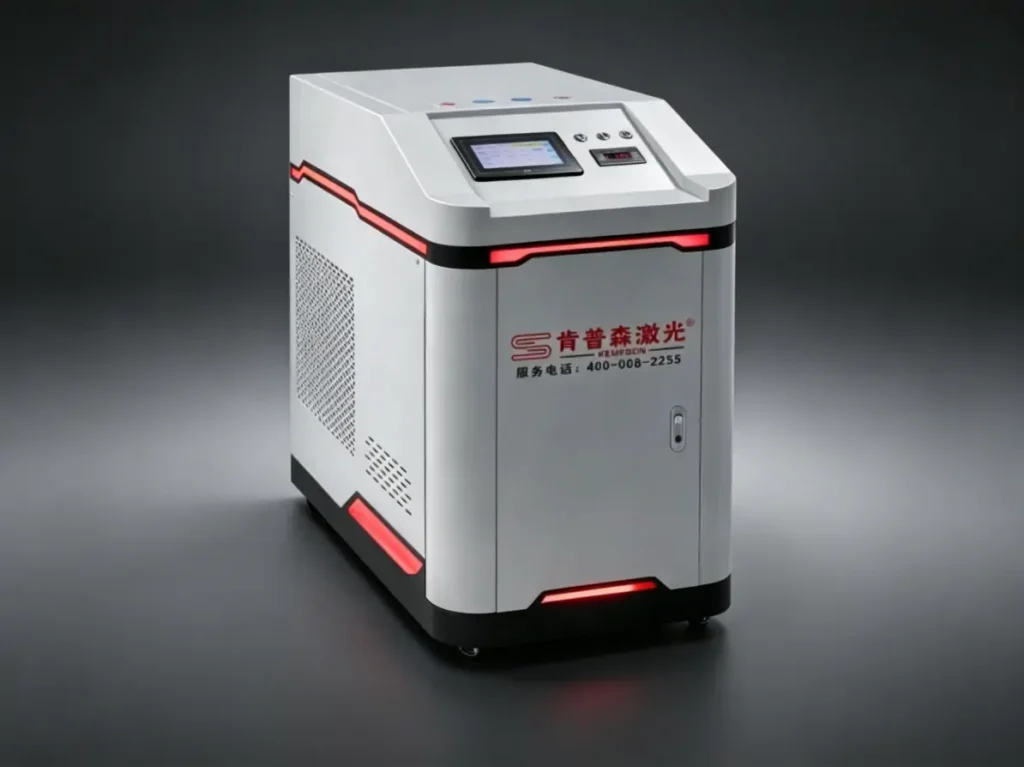

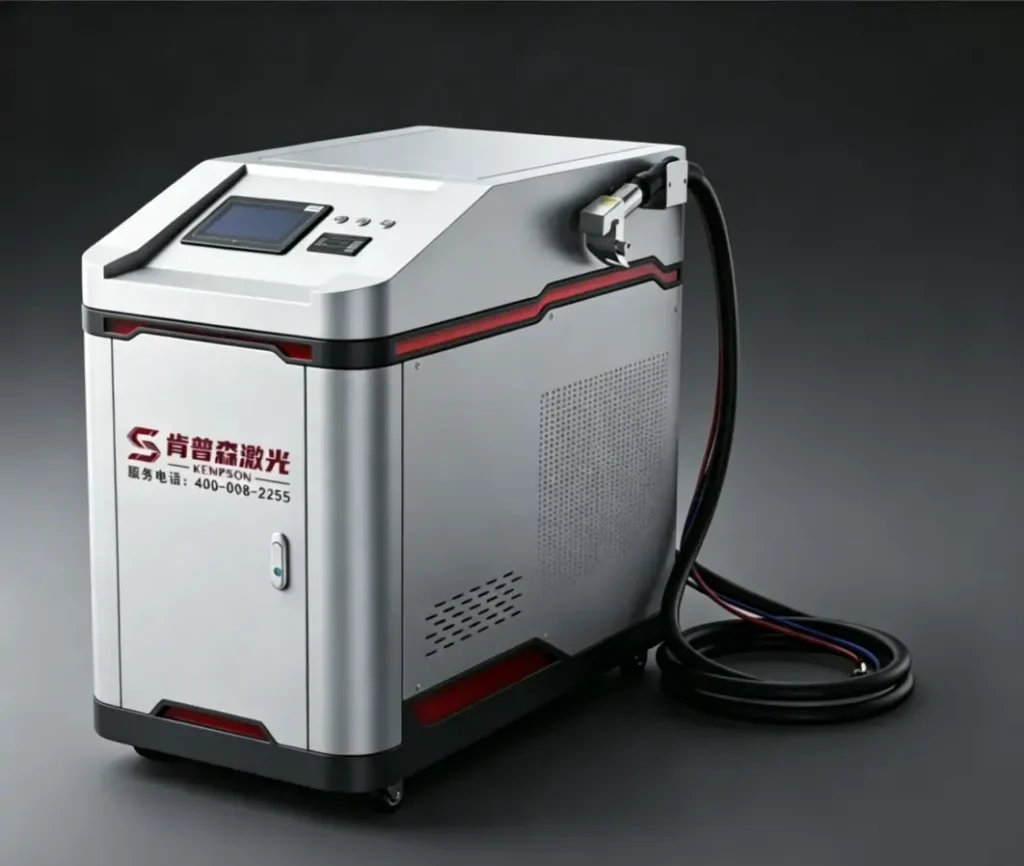

A fiber laser cleaning machine uses a high-energy fiber laser beam to remove rust, paint, oil, oxides, and other surface contaminants from metal and industrial components. The laser energy is absorbed by the contaminated layer, causing it to vaporize or separate from the substrate without damaging the base material.

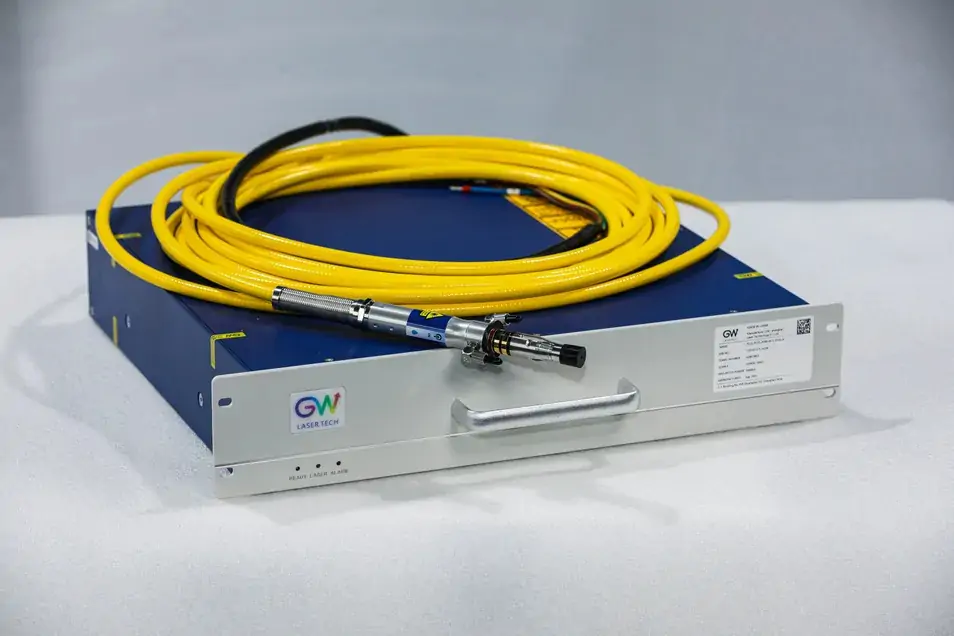

Compared with chemical cleaning, abrasive blasting, and mechanical methods, fiber laser cleaning provides a non-contact cleaning process with precise control of power, frequency, and scanning parameters. Fiber laser sources offer stable beam quality, long service life, and are suitable for continuous industrial operation.

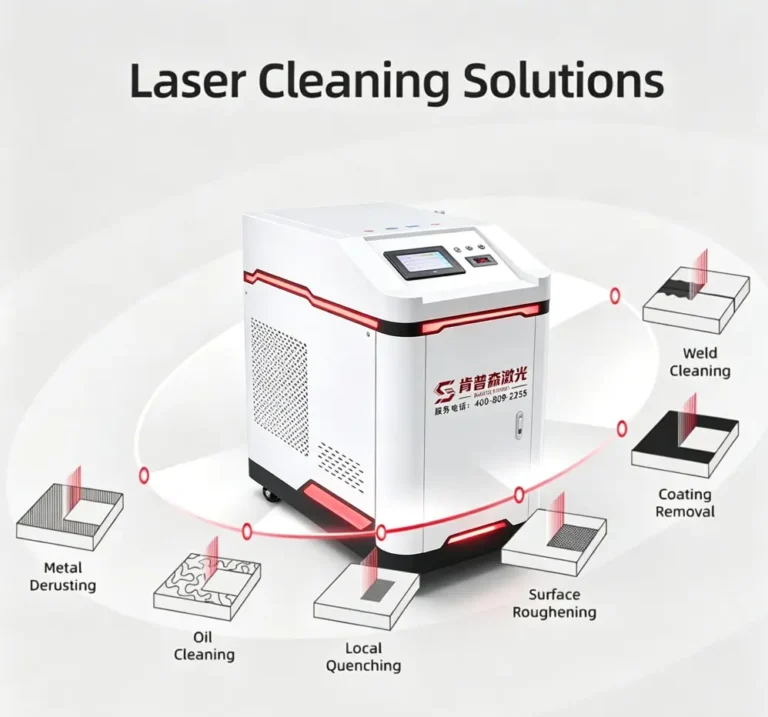

Fiber laser cleaning machines are widely used for rust removal, paint stripping, mold cleaning, welding surface preparation, and metal surface treatment in industries such as automotive, shipbuilding, machinery manufacturing, and metal fabrication. They are compatible with materials including steel, stainless steel, aluminum, and copper, making them suitable for both handheld operation and automated production systems.

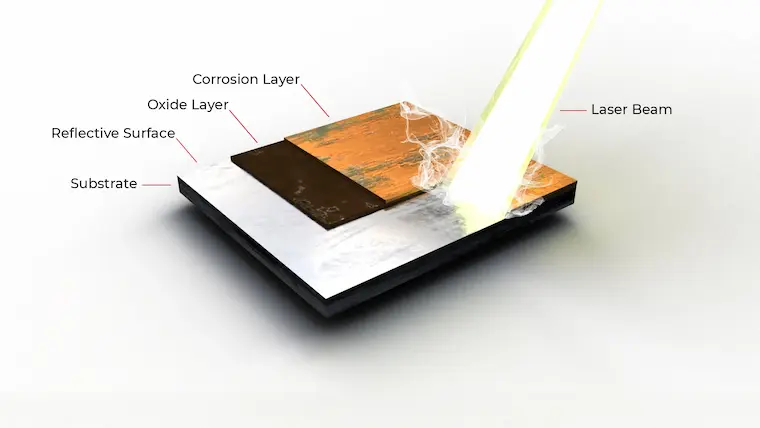

A fiber laser cleaning machine uses a focused laser beam to remove rust, paint, oil, oxide layers, and other contaminants from material surfaces. The laser energy is absorbed by the surface contaminants, causing them to break down and separate from the substrate through laser ablation.
A fiber laser cleaning machine uses laser ablation to remove unwanted surface layers without mechanical contact. The process does not use abrasives or chemical cleaners and is applied for rust removal, surface preparation, welding preparation, and industrial maintenance.
For more detailed information on the operation and process, see the article “How Does a Laser Cleaning Machine Work?”
The handheld laser cleaning machine uses a laser beam as the cleaning medium and an air-protected cleaning gun as the cleaning tool. It can clean areas ranging from 5 to 30 centimeters in width at a rate of 1.2 square meters per minute. Featuring fiber-optic transmission, it delivers high cleaning efficiency and achieves zero emissions during the cleaning process. It is suitable for the rapid removal of heavy contaminants and the large-area cleaning of light contaminants.

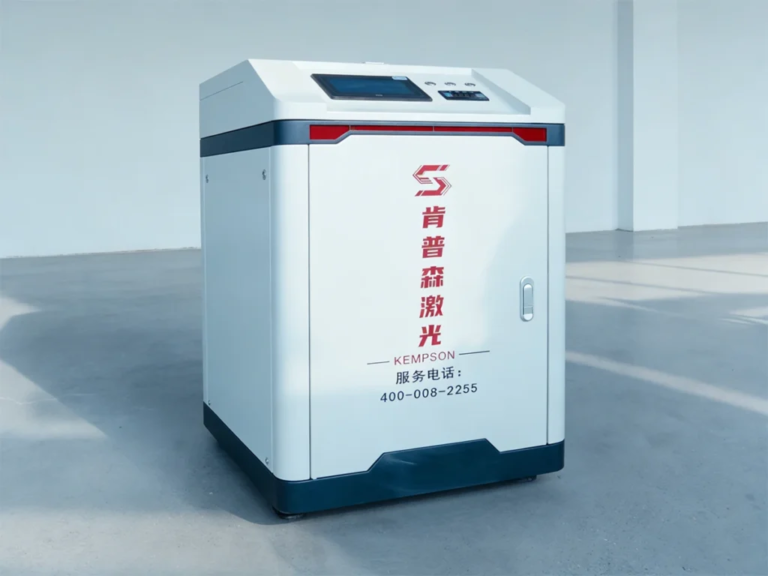

The pulsed laser cleaner, equipped with optional single-mode or multi-mode fiber lasers, enables precise, non-contact cleaning. It is specifically designed for outdoor mobile operations, workshop production, and precision component processing. Available in backpack, suitcase, and cabinet configurations, this equipment offers the advantages of being eco-friendly and portable, making it widely used in precision part cleaning, cultural relic restoration, and industrial production.

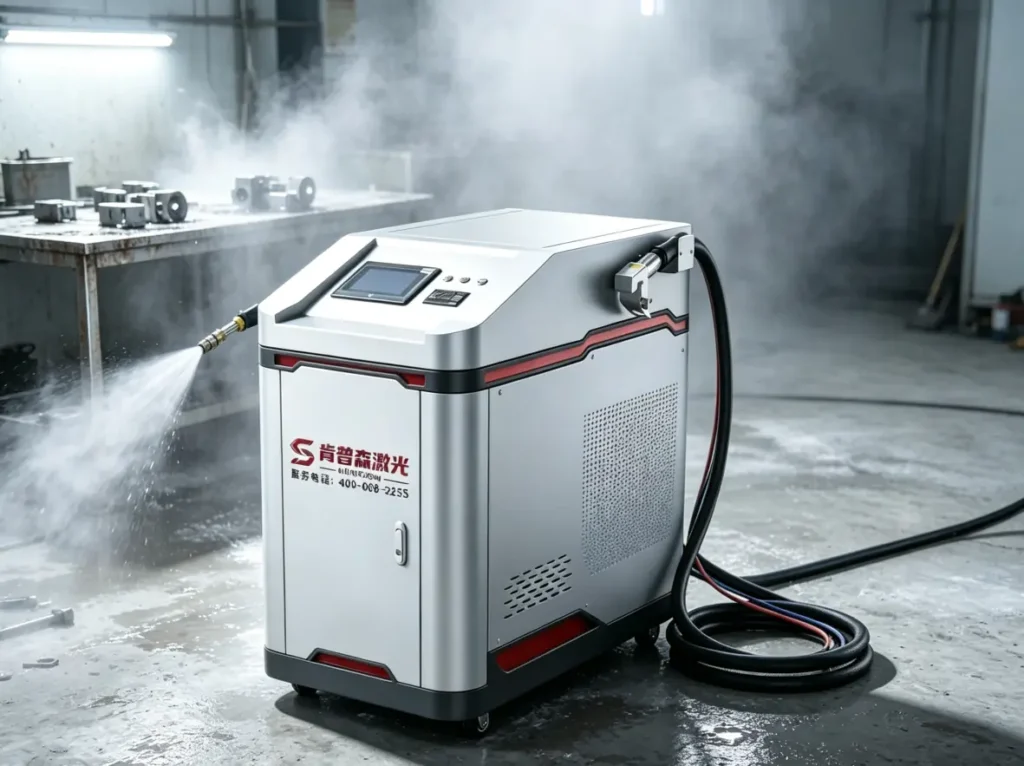

The Self-Blowing Handheld Laser Rust Removal Machine is a portable laser cleaning device with an integrated air-blowing system for removing rust, paint, and surface contaminants from metal parts. The handheld design allows operators to clean different areas with flexible movement, making it suitable for workshops, equipment maintenance, welding preparation, and small-to-medium metal components.
| Parameter | Specification |
|---|---|
| Laser Power | 50W–4000W |
| Laser Source | Fiber Laser, 1064nm |
| Cleaning Width | 50–300mm Adjustable |
| Cleaning Speed | Up to 1.8㎡/min |
| Cleaning Method | Rust Removal, Paint Removal, Oil Cleaning, Oxide Removal, Surface Preparation |
| Operation Mode | Handheld / Automated Integration |
| Cooling System | Air Cooling / Water Cooling |
| Pulse Width | 2–500ns Adjustable (Pulsed Laser Models) |
| Scanning Speed | Up to 10000mm/s |

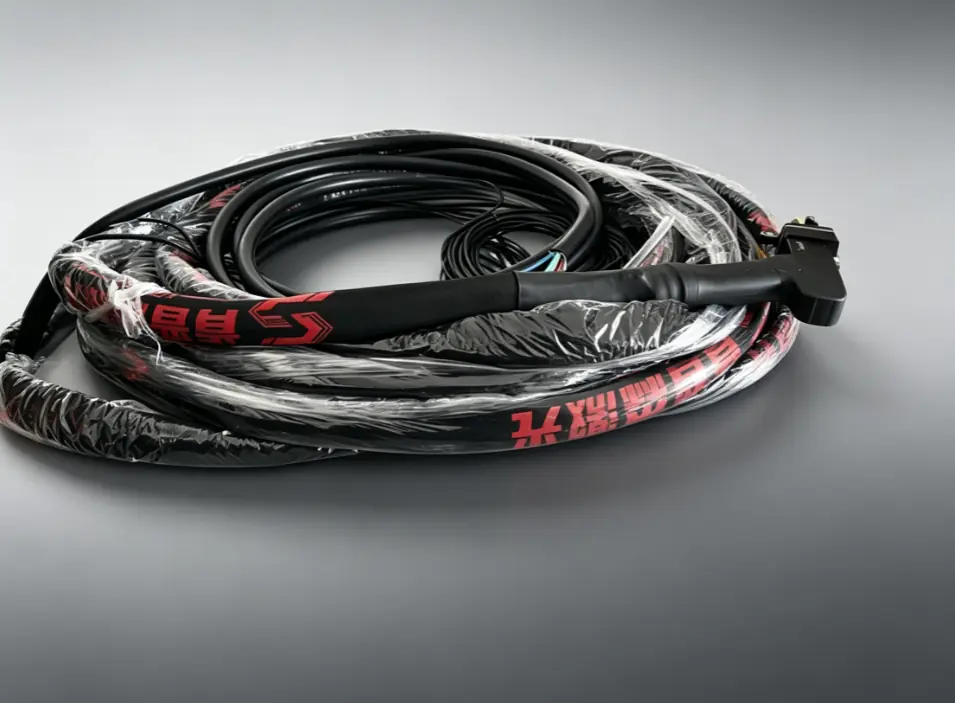

| Fiber Cable Length | 3m / 5m / 10m Optional |
| Control System | Touch Screen / Digital Control |
| Power Supply | 220V / 380V Customized |
| Applicable Materials | Carbon Steel, Stainless Steel, Aluminum, Copper, Cast Iron |
| Laser Type | Pulsed Laser / Continuous Wave (CW) Laser |
| Application Industries | Metal Fabrication, Automotive, Shipbuilding, Machinery, Mold Maintenance |
Used for removing rust and corrosion from steel structures, pipes, machinery parts, and metal equipment before further processing or coating.
Applied for stripping old paint, protective coatings, and surface layers from automotive parts, steel structures, and industrial components.
Used before welding to remove rust, oil, and oxide layers from metal surfaces, improving weld preparation and reducing surface contamination.

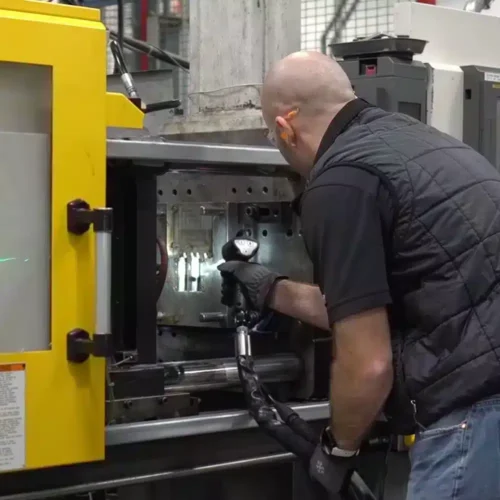

Suitable for cleaning injection molds, rubber molds, and precision tooling by removing residues, carbon deposits, and production contaminants.
Used for cleaning engine parts, molds, welding areas, and metal components during automotive production and maintenance.
Applied for large-scale rust removal and surface treatment on ships, steel structures, construction machinery, and industrial equipment.

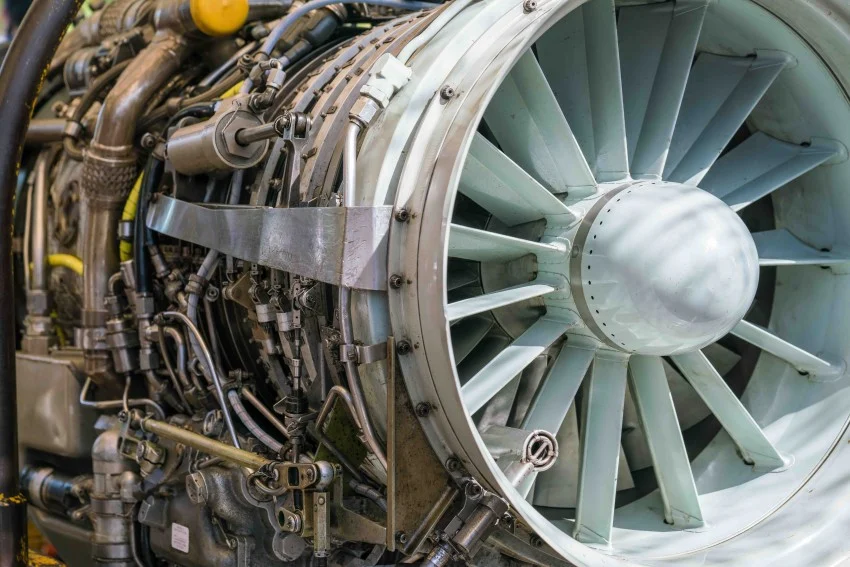

Used for paint removal, surface cleaning, and maintenance of aircraft parts where controlled material removal is required.
Used for cleaning stainless steel, aluminum, copper, and carbon steel parts before welding, coating, or surface finishing.
The required laser power depends on the cleaning material, contamination type, cleaning area, and production requirements. Low-power laser cleaning machines are mainly used for precision surface treatment, while high-power systems are designed for large-area cleaning and heavy contamination removal.
| Laser Power | Description | Applications |
|---|---|---|
| 50W–200W Laser Cleaning Machine | Suitable for precision cleaning applications where heat input needs to be controlled. | Mold cleaning, Precision parts cleaning, Oil and oxide layer removal, Small metal component maintenance |
| 500W–1000W Laser Cleaning Machine | Suitable for general industrial cleaning tasks with moderate contamination. | Metal rust removal, paint and coating removal, welding surface preparation, and machinery maintenance |
| 1500W–2000W Laser Cleaning Machine | Suitable for continuous industrial cleaning and larger metal component processing. | Steel structure cleaning, Large metal parts, Heavy equipment maintenance, Ship components |
| 3000W–4000W Laser Cleaning Machine | Designed for heavy-duty surface cleaning and large-area industrial applications. | Heavy rust removal, Shipbuilding, Steel fabrication, Large industrial equipment cleaning |
When selecting a fiber laser cleaning machine, consider the type and thickness of contamination, material properties, cleaning speed requirements, and working environment.
A fiber laser cleaning machine is a highly efficient and environmentally friendly solution for metal surface treatment, effectively enabling the rapid and non-destructive removal of rust, oxide layers, or old coatings. Compared to traditional methods such as sandblasting and chemical cleaning, laser cleaning offers greater flexibility and adaptability, is environmentally friendly, and reduces subsequent processing costs.
| Comparison Factor | Laser Cleaning | Sandblasting | Chemical Cleaning | Dry Ice Cleaning | Manual Grinding |
|---|---|---|---|---|---|
| Cleaning Principle | Laser (Non-contact) | Abrasive Impact | Chemical Reaction / Dissolution | CO₂ Particle Impact & Sublimation | Mechanical Friction |
| Surface Protection | High precision, minimal substrate impact | Surface roughening | Corrosion or residue risk | Generally gentle | High risk of scratching |
| Consumables | None | Sand / Abrasives | Acids / Solvents | Dry ice pellets | Grinding discs |
| Environmental Impact | No chemicals, low waste | Dust pollution | Hazardous liquid waste | Requires CO₂ ventilation | Dust and debris |
| Automation Potential | Easy to integrate into automated production lines | Limited | Limited | Moderate | Difficult |
| Maintenance Requirements | Low | Media handling & equipment wear | Chemical storage & disposal | Pellet supply system | Frequent tool replacement |
| Operational Cleanliness | Clean process, minimal residue | High dust generation | Chemical residues present | Very little secondary waste | Produces metal debris |
| Suitability for Precision Parts | Excellent, recommended | Not suitable | Surface reaction risk | Limited control | Poor suitability |
| Long-term Operating Cost | Low | Medium | High | Medium | Medium |
Laser cleaning offers high precision, repeatability, and environmental sustainability. Although the initial investment is relatively high, it has become a strategic long-term solution in modern applications because it requires no consumables, reduces waste disposal costs, and is compatible with automated production lines.
KEMPSON is a professional laser equipment manufacturer and supplier specializing in fiber laser cleaning machines for industrial surface treatment. The product range covers 50W–4000W laser cleaning solutions for rust removal, paint stripping, oxide removal, welding surface preparation, and metal surface maintenance. With experience in laser welding and cleaning technology, KEMPSON provides handheld and customized laser cleaning systems for applications in metal fabrication, automotive, machinery, shipbuilding, and other industries.
KEMPSON provides complete support from equipment selection and cleaning tests to customized solutions and after-sales service. Each laser cleaning machine is manufactured with industrial-grade components and tested before delivery to meet different working requirements. Contact us for a suitable fiber laser cleaning solution, factory quotation, and technical support for your application.
A fiber laser cleaning machine uses a high-energy laser beam to remove rust, paint, oil, oxide layers, and other contaminants from material surfaces through laser ablation.

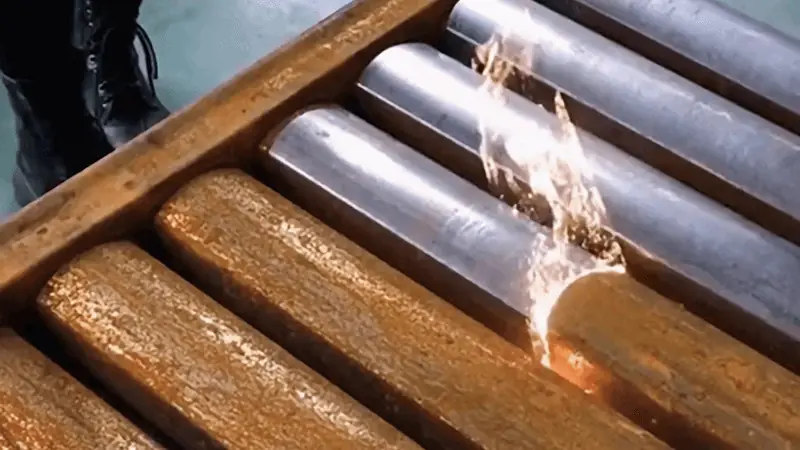

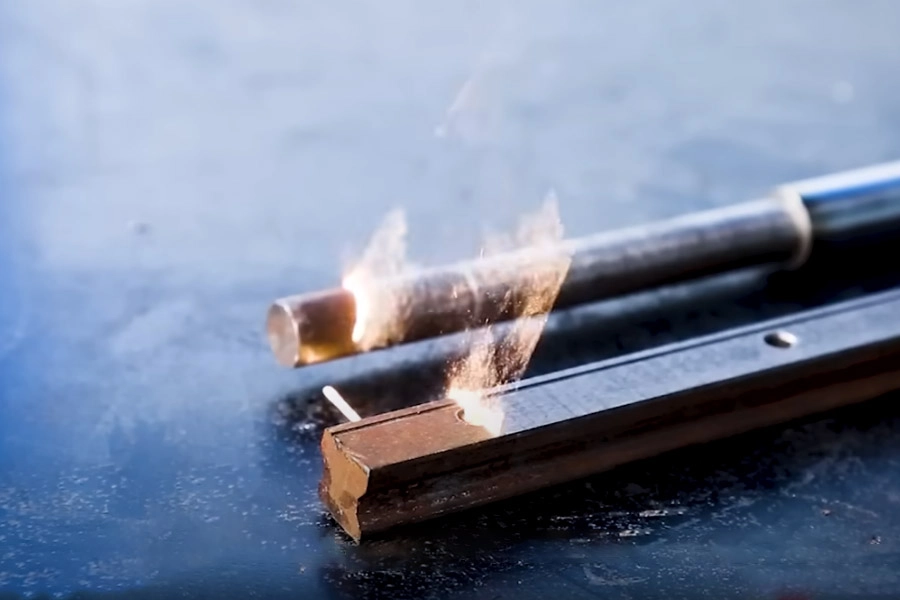

The laser beam is absorbed by the rust layer, causing rapid heating and separation from the metal surface. The process removes rust without direct contact with the workpiece.
Fiber laser cleaning machines can clean carbon steel, stainless steel, aluminum, copper, cast iron, and other metal materials used in industrial applications.
The required power depends on rust thickness, cleaning area, and working speed. 500W–1000W machines are suitable for general rust removal, while 1500W–4000W models are used for heavy rust and large metal surfaces.
The price of a fiber laser cleaning machine depends on laser power, laser source, cooling system, cleaning width, and configuration. Typical prices range from several thousand to tens of thousands of US dollars.
Yes. A 4000W laser cleaning machine is designed for heavy rust removal, large steel structures, ship maintenance, and other industrial cleaning applications that require higher cleaning speed.
Laser cleaning uses no abrasive materials and does not create secondary waste. It provides a non-contact cleaning process with better control over surface treatment, while sandblasting is still suitable for large-scale rough cleaning applications.
No. Fiber laser cleaning machines do not require sand, chemicals, or grinding materials. Regular maintenance mainly involves checking the laser system, protective lens, and cooling components.
