4000W Laser Welding Machine for 12mm Carbon Steel

Kempson 4000W Air Laser Welder is specifically developed for 12mm thick carbon steel plates. It features a built-in high-purity gas generation system, completely saying goodbye to external gas cylinders. The 8mm ultra-wide weld bead achieves single-side welding with double-side forming, and a weld depth of up to 7.5mm without the need for grinding, making it a true money-saving tool for heavy industry manufacturing.
  • Laser Power: 4000W
  • Carbon Steel Welding Thickness: 0.5–12mm
  • Maximum Penetration Depth: 7.5mm
  • Weld Bead Width: 1.5–8.0mm
  • Wire Feeding: Single / Double / Triple Wire
  • Cooling Method: Water-Cooled



Price: USD $14,571~USD $22,286

What Is a 4000W Laser Welding Machine?

A 4000W laser welding machine is an industrial fiber laser welding system that uses a 4000W laser source to join metal components with concentrated laser energy. It is designed for welding carbon steel, stainless steel, and aluminum in heavy equipment manufacturing, steel structure fabrication, and industrial metal processing.

The KPS-ALW4000 features a handheld laser welding system with automatic wire feeding for welding thick metal plates and filling wider joint gaps. Its built-in shielding gas generation system supplies protective gas during welding, while the water-cooled configuration manages heat generated by continuous industrial operation. The system supports different wire feeding configurations and welding processes according to the workpiece and joint requirements.

How Thick Can a 4000W Laser Welding Machine Weld?

A 4000W laser welding machine can weld thick metal plates, with the maximum applicable thickness varying by material, joint design, and welding configuration. The KPS-ALW4000 has a maximum penetration depth of 7.5mm, and carbon steel plates up to 12mm, stainless steel up to 11mm, and aluminum alloy up to 10.5mm under specified welding conditions.

MaterialMaximum Welding Thickness
Carbon Steel12mm
Stainless Steel11mm
Aluminum Alloy10.5mm

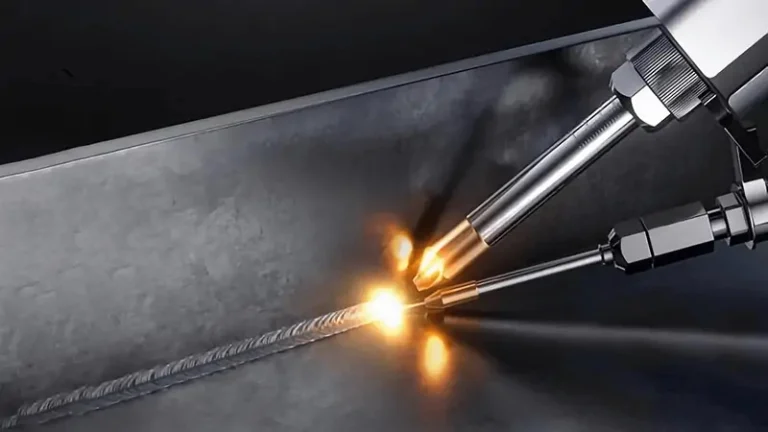

How Does the 4000W Laser Welder Weld 12mm Carbon Steel?

Welding 12mm carbon steel involves laser energy, filler wire, shielding gas, and joint preparation. The KPS-ALW4000 combines these process elements to handle different plate configurations and welding requirements.

  • 1. Laser Power and Deep Penetration: The 4000W fiber laser melts the base metal at the joint. Laser focus, power, and welding speed affect penetration and weld formation.
  • 2. Multi-Wire Feeding for Thick Plate Welding: The KPS-ALW4000 supports single-, double-, and triple-wire feeding. The configuration is selected according to joint gap and weld volume.
  • 3. Shielding Gas Generation: The built-in gas generation system supplies shielding gas to protect the weld pool. Gas type and flow rate are selected according to the material and process.
  • 4. Welding Joint and Process Requirements: The machine supports butt and fillet welding. Groove preparation, joint gap, welding speed, and wire feed rate are set according to plate thickness and joint design.

Components of the KPS-ALW4000 Laser Welding Machine

The KPS-ALW4000 consists of six main systems that control laser output, welding operation, filler wire delivery, shielding gas supply, and temperature management.

Fiber Laser Source illustration

4000W Fiber Laser Source

The 4000W fiber laser source generates the laser beam for welding carbon steel, stainless steel, and aluminum. Laser output and process settings are adjusted according to material thickness and joint requirements.

Welding-gun

Handheld Laser Welding Gun

The handheld welding gun directs the laser beam onto the workpiece. Its operating position and travel angle allow the operator to follow different joint geometries and welding paths.

Four-Drive Triple Laser Welder Wire Feeder

Automatic Multi-Wire Feeder

The automatic wire feeder supplies filler wire to the welding area. It supports single-, double-, and triple-wire configurations for different joint gaps and weld filling requirements.

Laser Welding Gas Generation System

Built-in Gas Generation System

The gas generation system produces and supplies shielding gas to the welding torch. Gas type, purity, and flow rate are configured according to the material and welding process.

Water Cooling System

Industrial Water Chiller

The water chiller circulates cooling water through the laser source and other designated components to control operating temperature during continuous welding.

Schneider Electrical System Aluminum-steel hybrid structure welding

Electrical Control System

The control system manages laser output, wire feeding, and welding parameters. Operators can adjust process settings according to the workpiece and production requirements.

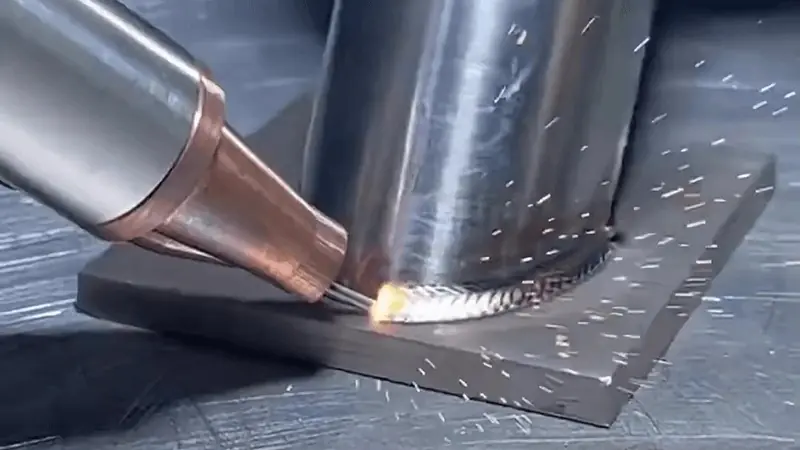

Weld Cases

Our 4000W laser welder delivers stable welding for 0.5–12mm carbon steel with deep penetration, 8mm-wide weld seams, single-side welding with double-side forming, and spatter-free results without secondary grinding.

Laser welding is widely used across various industries, and its weld strength is well-documented. For more details, please refer to the article: “Is Laser Welding Strong? Strength, Durability, and Performance Explained.”

Advantages

Deep Penetration Technology, 8mm Ultra-wide Weld Forming

This is a professional industrial deep penetration laser welder. It allows the high-energy laser beam to easily reach the root of the plate, achieving an 8mm ultra-wide weld bead. Single-side welding meets industrial standards for double-side forming, with dense welds and high tensile strength.

Innovative Triple-wire Feeding System

The equipment comes standard with a self-developed stepping four-drive wire feeder, offering strong power and precise delivery. This system supports free switching between single, double, and triple wires without jamming or breaking. It includes a wire straightening function for smooth operation.

“Black Gold” Anti-spatter Torch

We have upgraded to a multi-vortex anti-spatter black gold welding torch. It uses a specialized anti-spatter nozzle and pipeline design to prevent welding dust and spatter from entering, reducing lens loss. A built-in emergency alarm device sounds in case of abnormalities.

Cooling System

We customized a 18000W cooling capacity full-copper tube chiller. Combined with a hollowed-out air duct design, it supports the equipment for 24-hour continuous operation in any season, eliminating power attenuation or shutdown caused by overheating.

Electronic Control

Utilizing the French Schneider electronic control system, it ensures stable current output even in industrial areas where voltage may fluctuate sharply.

Durability

The chassis is made of a 2 mm-thickened steel plate. The structure is reinforced for anti-collision and equipped with universal wheels at the bottom. The surface undergoes industrial-grade spray treatment for corrosion and fatigue resistance, adapting to power grid environments in mines and steel structure plants.

12mm Carbon Steel Laser Welding Tests and Videos

KEMPSON tested the KPS-ALW4000 on 12mm carbon steel plates. The following videos show the actual welding process and post-welding dimensional inspection, providing a direct view of weld formation and finished weld dimensions.

4000W Laser Welding Solution for Heavy Plates | Up to 12mm

Industrial Laser Welder | 4-Wire Feeder | Built-in Air Generator | CE FDA Certified

Specifications

Kempson provides customizable laser welding solutions tailored to different material thicknesses, welding applications, and production requirements.

Core ItemTechnical SpecificationsRemarks
Product ModelKPS-ALW40004000W Thick Plate Special Model
Laser Power4000 WattsKempson Customized Chip / USA GW Laser
Carbon/Angle Steel Thickness12mmSouth Korea-imported vortex separation
Stainless Steel Thickness11mmBright weld bead, secondary wall backup
Magnesium Alloy Thickness10.5mmSupports self-generated gas; aluminum welding doesn’t blacken
Max Penetration7.5mmIndustrial deep penetration, strength far exceeds traditional welds
Weld Width Range1.5mm – 8.0mmSupports wide weld gap filling and stacking
Wire Feeding ModeMotor four-drive automatic feedingSupports free switching of single, double, and triple wires
Modified Wire DiameterΦ0.8 / 1.0 / 1.2 / 1.6 / 2.0Compatible with various wire specifications
Shielding Gas Type99.99% Nitrogen-enriched mixtureSelf-produced gas, zero consumption of external cylinders
Gas Generation SystemSouth Korean-imported vortex separationHigh-precision filtration, gas source purification
Control SystemFrench SchneiderPhosphate protection, stable current discharge
Cooling MethodS&A Customized 18000W ChillerFull copper tube spindle, supports 24-hour continuous work
Total Power Consumption≤ 3.5kWHigh photoelectric conversion rate, energy-saving
Working Voltage380VIndustrial grade
Fiber LengthStandard 10 metersMeets outdoor and large workpiece distance welding
Weight / Size≈585kg / 1.2 * 1.3 * 1.3mLimit thickness, single-side welding, double-side forming

Application

The Kempson KPS-ALW4000 thick plate air laser welder is designed for heavy industries with demanding environments, thick plates, and high-strength requirements. Key industrial application scenarios include:

Heavy Engineering Machinery Parts: Boom brackets, support ribs, large arm connectors.

Mining Equipment and Components: Vibrating screen dust removal, crusher shells, pipeline supports.

Steel Structure Workshops and Buildings: Corbel gussets, embedded parts, Steel Structure Railings, I-beam connection plates.

Special Container Operations and Box Welding: Body brackets, chassis crossbeams, container corner fittings.

Heavy Truck Architecture and Agricultural Equipment: Truck longitudinal beam reinforcement plates, agricultural hitch devices, trailer axles.

Power and Energy Facilities: Thick plate brackets for power cabinets, energy pipeline supports.

The KPS-ALW4000 is a “thick plate welding artifact.” Its self-produced high-purity shielding gas solves the logistics problem of “difficult cylinder transport” in remote factories. With 4000W of power, it locks in the 12mm carbon steel golden thickness range, making it the best choice to replace traditional low-efficiency welding solutions.

To learn about the working principles, parameters, and applications of laser welding for stainless steel and various types of steel, see the article: “Laser Welding Stainless Steel: A Complete Guide for Beginners and Professionals”

How to Select a 4000W Laser Welding Machine for Thick Carbon Steel?

Selecting a 4000W laser welding machine for thick carbon steel requires evaluating plate thickness, joint design, filler wire, shielding gas, and operating conditions.

Carbon Steel Plate Thickness

Confirm the maximum and minimum plate thicknesses in your production. Welding capacity should be verified through tests using the actual carbon steel grade and thickness.

Joint Type and Weld Penetration

Identify the joint types, including butt joints and fillet joints, along with the required penetration depth and weld profile. Groove preparation and assembly gaps affect the welding process.

Wire Feeding Requirements

Determine whether single-, double-, or triple-wire feeding is required. Wire diameter and feeding configuration depend on joint gaps, filler metal volume, and weld dimensions.

Shielding Gas Requirements

Confirm the shielding gas type, purity, and flow rate required for the carbon steel welding process. Check whether an integrated gas generation system is suitable for your production setup.

Cooling System and Working Hours

Consider the machine’s cooling configuration and daily operating schedule. Continuous production requires a cooling system matched to the laser source and actual operating conditions.

Power Supply and Workshop Conditions

Check the available power supply, voltage, installation space, and workshop ventilation. Confirm that the electrical and operating conditions are compatible with the selected equipment.

Machine configuration should be determined by actual plate thickness, joint structure, production cycle, and welding test results.

Laser Welder Manufacturer and Supplier

Kempson specializes in the research, development, manufacturing, sales, and service of laser welding equipment. We remain at the forefront of thick-plate laser welding technology. With an in-house R&D team and extensive industry experience, the company holds over 30 patents and certifications, including ISO 9001, CE, and FDA certifications, and we provides high-performance laser welding equipment. This 4000W air-cooled laser welder, equipped with an independent gas generation unit and backed by a three-year warranty, effectively addresses cost and efficiency challenges in thick-plate welding.

Related Articles

  1. What Is Deep Penetration Laser Welding?
  2. 3000W Laser Welder Thickness: How Thick Can It Weld?
  3. How to Select Fiber Laser Wattage? (1500W vs 3000W) for Different Metal Thicknesses

FAQs

Can a 4000W air laser welder really penetrate 12mm steel?

Yes. The KPS-ALW4000 is designed for carbon steel plates up to 12mm thick. Actual welding results depend on joint design, plate preparation, wire feeding configuration and process parameters. Welding tests with the actual workpiece are recommended before production.

How Thick Can a 4000W Laser Welder Weld?

The KPS-ALW4000 has specified welding capacities of up to 12mm for carbon steel, 11mm for stainless steel and 10.5mm for aluminum alloy. These figures are subject to material grade, joint type and welding conditions.

What Is the Maximum Penetration Depth of a 4000W Laser Welder?

The KPS-ALW4000 has a stated maximum penetration depth of 7.5mm. Penetration depth refers to the depth of the fused zone, while applicable plate thickness refers to the workpiece thickness that can be welded under a specified joint design and process. The two measurements are not interchangeable.

Does 12mm Carbon Steel Require Laser Welding Filler Wire?

Filler wire is selected according to joint gap, groove design and required weld volume. For 12mm carbon steel, the KPS-ALW4000 supports automatic wire feeding in different configurations. The required wire diameter and feeding setup should be confirmed through welding tests.

Can a 4000W Laser Welder Weld Carbon Steel in One Pass?

Single-pass welding depends on plate thickness, joint preparation, welding position and the required penetration. Single-sided welding does not automatically mean full penetration or a complete weld profile on both sides. Butt joint preparation and process parameters must be tested for the specific workpiece.

What Shielding Gas Is Used for 4000W Laser Welding?

Argon and nitrogen are commonly used as shielding gases in laser welding. The suitable gas depends on the base material, filler wire and welding process. The KPS-ALW4000 includes a built-in gas generation system; the gas type, purity and flow rate should be confirmed for the selected configuration.

Does a 4000W Laser Welding Machine Require Water Cooling?

The KPS-ALW4000 uses an industrial water-cooling system. The chiller circulates cooling water through designated components to control operating temperature during welding. This model is water-cooled, not air-cooled.

What Is the Difference Between 3000W and 4000W Laser Welding Machines?

A 4000W laser welding machine provides higher laser output than a 3000W model and is intended for applications requiring greater welding capacity, including thicker metal sections. The appropriate power depends on material, plate thickness, joint design and production requirements. Welding tests provide a practical basis for comparing the two configurations.
