Rated Power: 4000W industrial-grade high-energy output
Limit Penetration Depth: 12mm (single-pass welding on carbon steel)
Weld Seam Width: ≤8mm (supports triple-wire feeding filler)
Cooling Technology: All-weather industrial-grade air cooling
The best hand held laser welder for thick metal provides the laser power and process stability required for medium- and thick-section welding. Power output, beam quality, wire feeding, and cooling performance directly affect weld penetration, joint consistency, and production efficiency. For industrial fabrication, 4000W is a common power level for carbon steel, stainless steel, and aluminum.

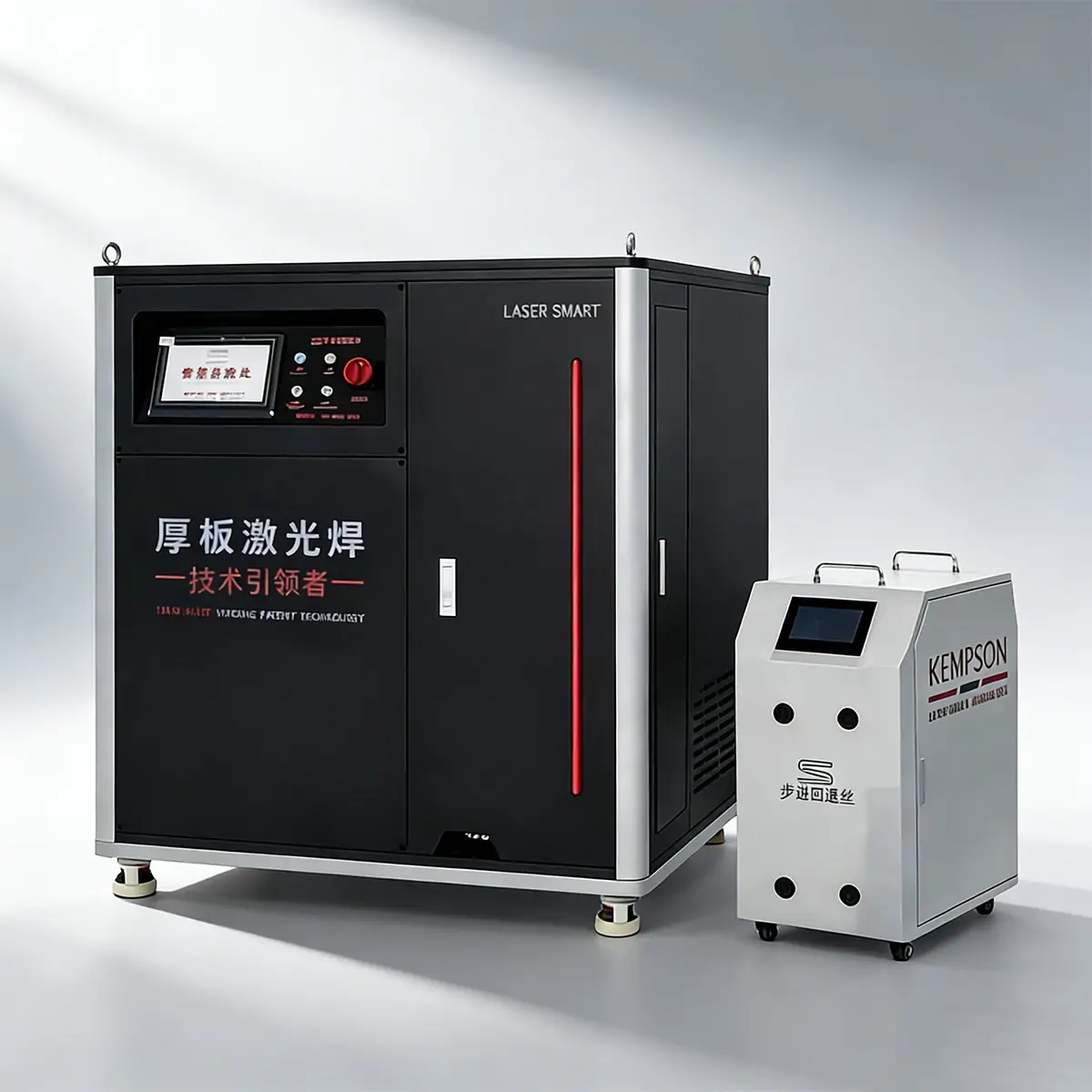

KEMPSON uses a 4000W fiber laser source with an optional triple-wire feeding system for thick metal welding. Carbon steel up to 12 mm can be welded under suitable joint preparation and welding parameters. The machine is used for structural steel, construction machinery, pressure vessels, mining equipment, and other heavy fabrication where continuous operation and stable weld quality are required.
A 4000W handheld laser welding machine is used for thick metal work where standard handheld systems are not enough. It runs on higher output power and is built for continuous welding on medium and heavy steel parts.
For thick steel fabrication, a 4000W handheld laser welder is used when lower-power machines reach their limit. It is used in structural steel, heavy equipment parts, and industrial fabrication lines. It provides stable weld depth and steady output during long production runs.
| Parameter | Stainless Steel | Carbon Steel | Aluminum |
|---|---|---|---|
| Fillet Welding Thickness | 11 mm | 12 mm | 10.5 mm |
| Wire Diameter | 0.8–2.0 mm | 0.8–2.0 mm | 0.8–2.0 mm |
| Wire Feeding Mode | Automatic / Single–Dual–Triple | Automatic / Single–Dual–Triple | Automatic / Single–Dual–Triple |
| Recommended Passes | 1–2 passes | 1–2 passes | 2–3 passes |
| Heat Input Level | Medium | Medium–High | High |
| Welding Bead Width | Up to 8 mm | Up to 8 mm | Up to 8 mm |
The KEMPSON KPS-ALW4000 is a high-power handheld laser welding system used for thick metal fabrication where weld strength, penetration depth, and joint stability are required. It is applied in production environments involving medium and heavy steel structures, large equipment assembly, and high-load industrial components. Structural Steel Fabrication

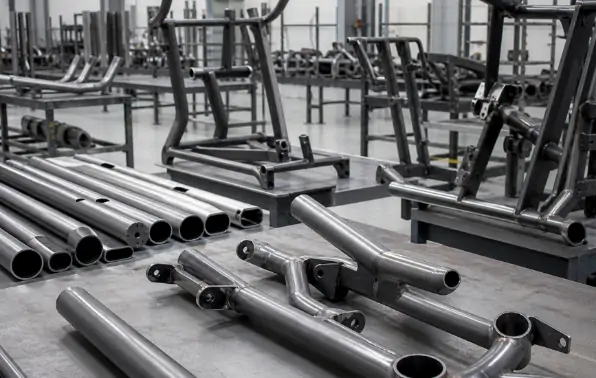

Used for welding H-beams and thick steel plates in building frames, bridges, and industrial steel structures where high joint strength is required
Applied to hull plates, decks, and structural sections. Suitable for thick plate welding and double-sided forming in marine fabrication.
Used in tanks, boilers, and sealed containers where weld integrity and leak resistance are critical for safe operation.

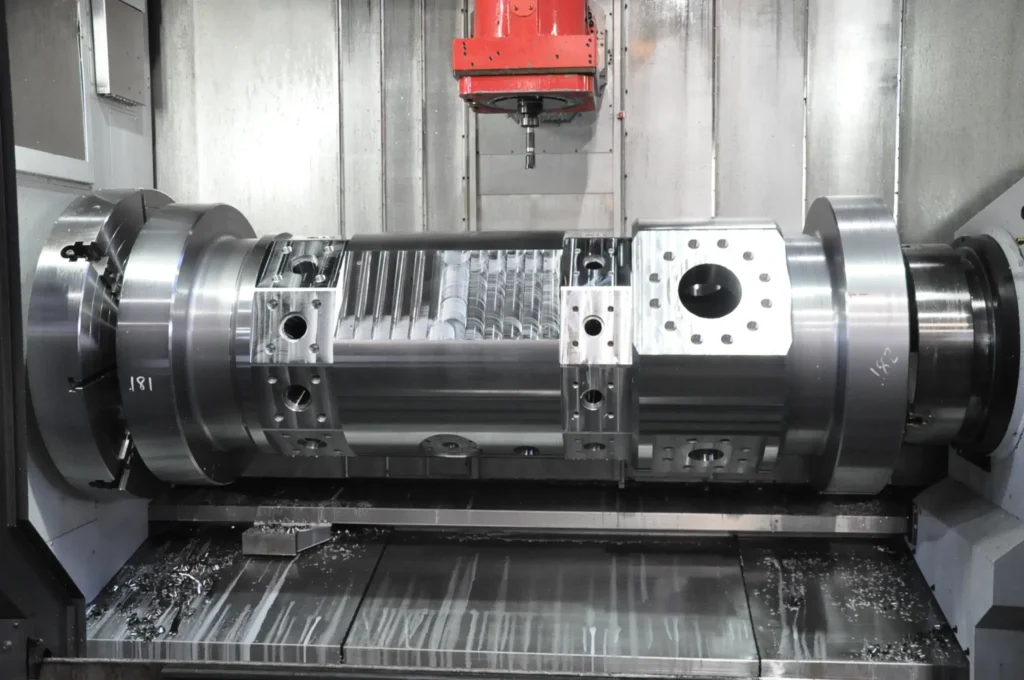

Applied in excavator frames, crane booms, and heavy equipment structures that require strong load-bearing welds.
Used for medium and thick plate welding in railcar bodies and structural assemblies, maintaining straight seams over long distances.
Used for on-site repair of large industrial equipment. The fiber delivery system supports welding in hard-to-reach areas without disassembly.
| Performance Parameters | Specifications |
| Equipment Model | KPS-ALW4000 |
| Laser Power | 4000 Watts (4000W) |
| Fillet Weld Thickness (Stainless Steel) | 11 mm (11mm) |
| Fillet Weld Thickness (Angle Steel/Carbon Steel) | 12 mm (12mm) |
| Fillet Weld Thickness (Aluminum Alloy) | 10.5 mm (10.5mm) |
| Maximum Penetration Depth | 7.5 mm (7.5mm) |
| Weld Width Range | 1.5 ~ 8.0 mm (Adjustable) |
| Wire Feeding Specifications | Φ 0.8 – 2.0 |
| Wire Feeding Mode | Automatic (supports single, double, triple wire switching) |
| Cooling Method | Built-in water cooling |
| Chiller Power | 18000 Watts (18000W) |
| Total Power Consumption | ≤ 3.5 kW |
| Power Requirement | 380 Volts (380V) |
| Gas Supply Type | 99.99% Argon/Nitrogen |

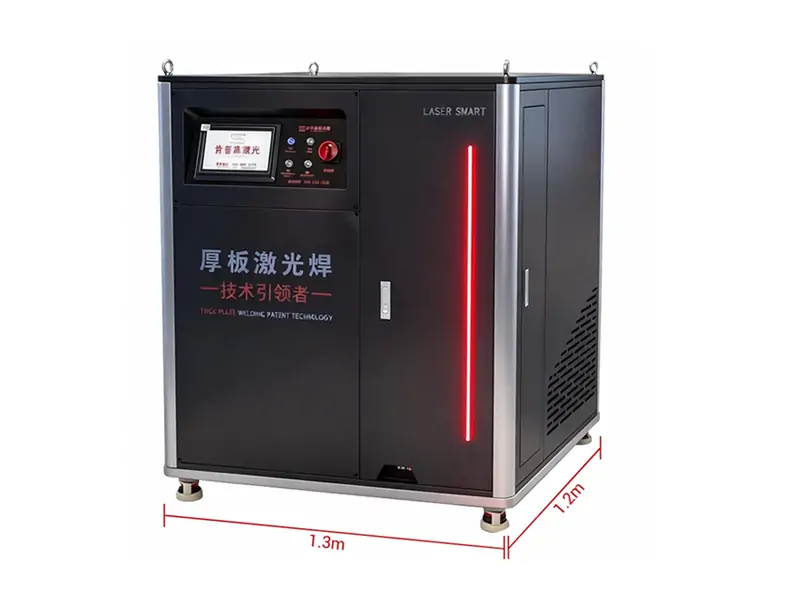

| Equipment Dimensions | 1.2 * 1.3 * 1.3 meters |
| Equipment Weight | Approximately 585 kg |
Flexible Operation: The handheld welding head comes standard with a 10-meter fiber optic cable, enabling flexible and convenient outdoor and long-distance welding.
Multi-Wire Technology Advantage: This model supports a unique “triple-wire switching” mode, which effectively fills large weld gaps, making it an ideal choice for thick plate processing.
The selection of the best hand held laser welder depends on material thickness, welding stability, and production conditions, not only on machine type or price.
Thin sheets below 3 mm can use 1500W systems. For 3–8 mm, 2000W is common. Above 8 mm, 4000W is used for stable penetration.

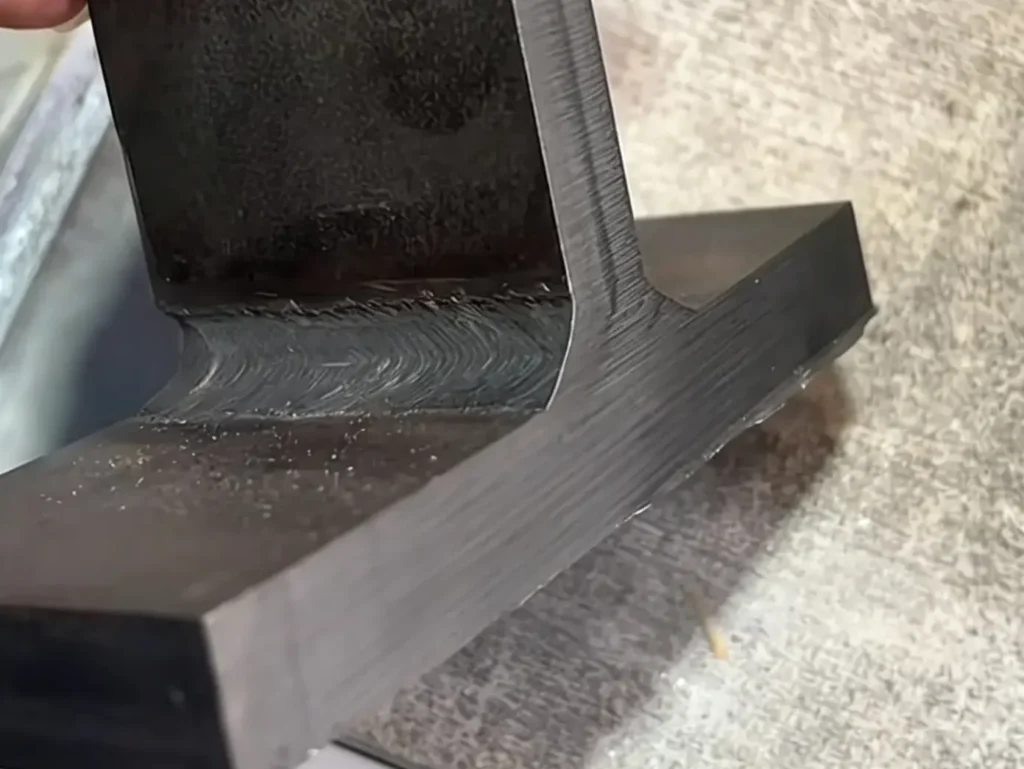

Deep penetration welds on structural steel, thick plates, and load-bearing parts require higher laser power and stable beam output.
Tight joints can use standard parameters. Gaps or uneven fit-up require wire feeding systems, especially in heavy fabrication.
Continuous welding lines need stable duty cycles and cooling systems. Intermittent repair work can use lower configuration setups.
A single wire is used for standard joints. Dual or triple wire is used for large gaps and higher deposition in thick metal welding.
The best hand held laser welder is the one matched to material thickness, joint condition, and production demand. For thick steel fabrication, higher-power systems are used on heavy plates. Lower-power machines reach limited penetration and require more passes.
You may also want to read the article “How to Choose a Laser Welding Machine for Your Business?” to learn more about how to select the right laser welding machine.
Kempson is a leading global manufacturer and supplier of thick plate handheld laser welding machines, dedicated to breaking the performance boundaries of metal processing. The combination of 4000W ultimate energy and innovative multi-wire feeding technology provides an unprecedented efficiency solution for the thick metal fabrication field. Kempson offers industrial-grade solutions integrated with ISO/CE/FDA certifications, high ROI, and a comprehensive after-sales guarantee. In the pursuit of deeper penetration, faster speed, and more beautiful welds, Kempson is your most trusted industrial handheld laser welding machine partner. Contact us for your exclusive customized solution.
A high-power handheld laser system in the 3000W–4000W range is commonly used for thick steel fabrication, depending on material and joint type.
For carbon steel, up to around 12 mm can be welded with proper joint preparation and parameter settings.
Lower power systems are suitable for thin sheet. For 8 mm and above, higher power is used to reach full penetration and reduce multiple passes.
In many structural and fabrication jobs, laser welding replaces MIG due to higher speed, lower heat input, and reduced post-processing.
Carbon steel, stainless steel, and aluminum are commonly processed in industrial handheld laser welding.
Wire feeding is used when gaps are larger or when higher deposition is needed on thick joints.
Steel structures, construction machinery, pressure vessels, mining equipment, and metal fabrication workshops.
Material thickness, joint condition, welding depth, and production demand determine the suitable configuration.
