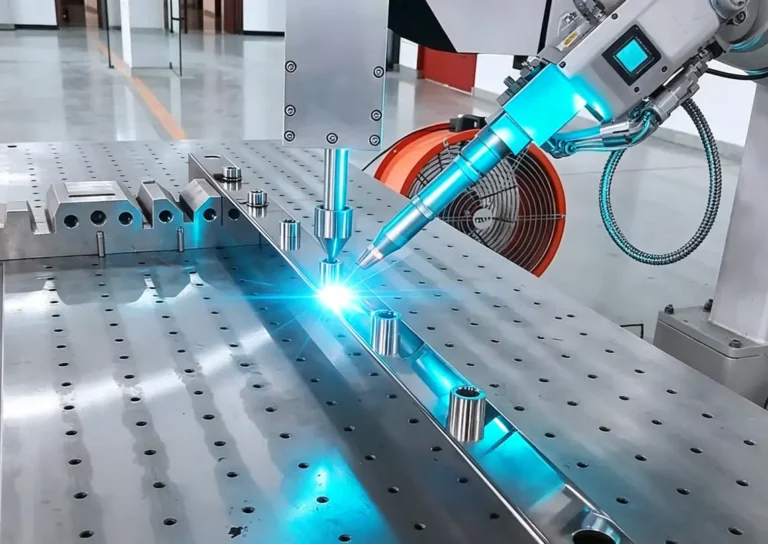

A Water Manifold Laser Welding Machine, also called a Liquid Cooling Manifold Laser Welding Machine or Manifold Laser Welding System, is a dedicated fiber laser welding machine for manufacturing water manifolds, liquid cooling pipes, and thermal management components. The machine uses a high-energy laser beam to melt metal joints and form sealed welds with controlled heat input.
The equipment is designed for manifold structures with multiple ports, complex welding paths, and strict sealing requirements. It integrates multi-axis motion control, customized fixtures, and laser welding processes for stainless steel, aluminum, and copper parts. The machine is commonly used for components with a thickness range of 1–5mm, including battery cooling systems, energy storage cooling modules, and industrial liquid cooling assemblies.
A Water Manifold Laser Welding Machine uses a high-energy laser beam to weld manifold joints with controlled heat input. The laser energy is concentrated on the welding area, creating a stable molten pool and a narrow weld seam. The process is suitable for liquid-cooling components that require low deformation and reliable sealing performance.
The customized fixture fixes the manifold components in the correct position before welding. The laser beam heats the joint area, melts the base materials, and forms a continuous weld seam under controlled parameters.
To learn about the detailed process and welding methods for water manifold welding, read the article: How to Weld a Water Manifold: Welding Methods and Process Guide
Water manifolds are used in liquid cooling systems where weld sealing, dimensional accuracy, and long-term reliability are required. Laser welding provides concentrated heat input, narrow weld seams, and controlled penetration, making it suitable for precision manifold manufacturing.
| Item | Specification |
|---|---|
| Laser Power | 1500W–3000W |
| Laser Type | Fiber Laser |
| Laser Wavelength | 1070nm |

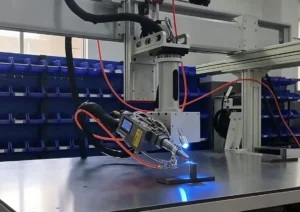

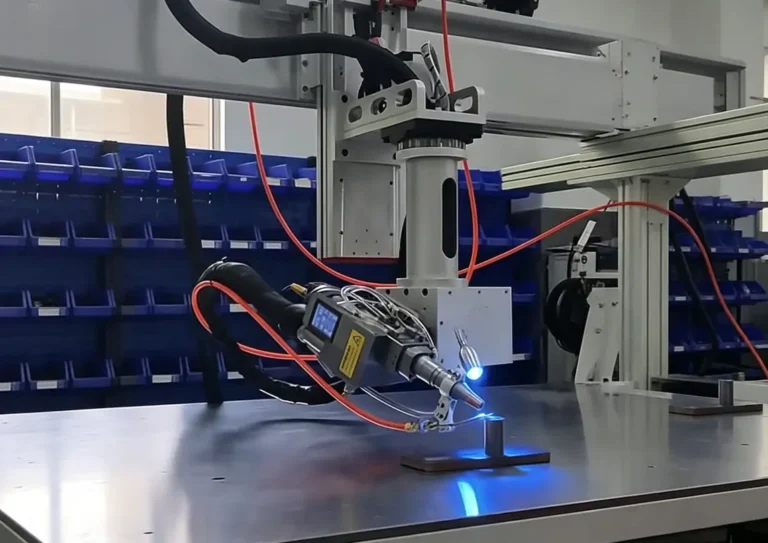

| Welding Head | Two-axis rotary laser welding head |
| Welding Axis | Five-axis linkage (X/Y/Z axis + rotary axes) |
| Working Area | 4000×1000mm |
| Z-Axis Travel | 150–500mm |
| X-Axis Travel | 150–3200mm |
| Y-Axis Travel | 150–300mm |
| Laser Spot Size | 30 spot |
| Control System | Syntec CNC Welding Control System |
| Cooling System | Dual-temperature water chiller |
| Fiber Cable Length | ≥10 m |
| Drive System | Servo motor drive |
| Applicable Materials | Stainless Steel, Aluminum Alloy, Copper Alloy |
| Applications | Water Manifold, Liquid Cooling Components, Thermal Management Parts |
KEMPSON provides customized Water Manifold Laser Welding Machine solutions according to different product structures, material types, and production requirements. Laser power, welding fixtures, rotary mechanisms, vision positioning systems, automatic loading modules, and welding monitoring functions can be configured based on the customer’s application.
Contact KEMPSON for a welding evaluation and customized solution.
Water Manifold Laser Welding Machine is designed for welding common metals used in liquid cooling and thermal management components. Welding parameters can be adjusted according to different material characteristics and component structures.
Stainless Steel
Used for water manifolds, pipe connectors, and cooling system parts.
Aluminum Alloy
Used for battery cooling plates and lightweight liquid cooling components.
Copper Alloy
Used for thermal management parts requiring high thermal conductivity.
For information on the advantages and power selection for welding stainless steel water manifolds, see: “Water Manifold Laser Welding Machine for Stainless Steel Manifold Manufacturing”
The welding thickness depends on laser power, material type, and joint design. The following range is suitable for common water manifold and liquid cooling component applications.
| Laser Power | Stainless Steel | Aluminum Alloy | Copper Alloy |
|---|---|---|---|
| 1500W | 0.5–3mm | 0.5–2.5mm | 0.5–2mm |
| 2000W | 1–4mm | 1–3mm | 1–2.5mm |
| 3000W | 1–5mm | 1–4mm | 1–3mm |
Actual welding thickness may vary depending on material grade, joint structure, welding speed, and process parameters.
Frequently asked questions and solutions for welding stainless steel water manifolds—see: Stainless Steel Water Manifold Welding: Methods, Challenges, and Solutions
The machine is used for precision welding of liquid cooling components in industries that require reliable sealing and stable weld quality.
Welding battery cooling manifolds, cooling channels, and thermal management components.
Manufacturing liquid cooling assemblies for energy storage equipment.
Welding flow channels, manifolds, and connection parts for cooling systems.
Processing metal cooling components used in industrial thermal management equipment.
KEMPSON provides customized laser welding solutions based on manifold structure, material, and production requirements. The configuration can be adjusted for the laser system, fixtures, automation, and welding process.
Laser Source and Power Selection — Laser power can be configured from 1500W–3000W according to material thickness and welding requirements. The standard wavelength is 1070nm with customizable fiber cable length.
Optical System and Spot Mode — The welding head and spot mode can be configured for different materials. Ring beam technology can be applied for copper and aluminum welding to improve heat distribution and reduce welding defects.
Fixtures and Rotary Mechanisms — Customized fixtures are designed according to manifold dimensions and welding positions. Rotary mechanisms support circular welding, sealing welding, and multi-port component processing.
Automation Integration — Optional modules include automatic loading, CCD vision positioning, weld monitoring, and production line integration.
Cooling and Wire Feeding System — Industrial water cooling systems and automatic wire feeders can be configured according to welding requirements. Wire diameters of 0.8mm–1.6mm are supported.
Welding Process Optimization — KEMPSON develops welding parameters for different materials, including laser power, welding speed, focus position, and shielding gas settings. Process data can be stored for repeat production.
KEMPSON is a laser welding machine manufacturer providing customized welding solutions for liquid cooling components, water manifolds, and precision metal parts. The company offers 1500W–6000W laser welding systems with application testing, process development, and overseas technical support.
Based on different materials, component structures, and production requirements, KEMPSON designs suitable welding systems with customized fixtures, motion control, and automation options. Contact our engineers for welding evaluation and solution design.
A Water Manifold Laser Welding Machine is a specialized fiber laser welding system for welding liquid-cooling manifolds, pipe connectors, and thermal management components. It uses focused laser energy to create precise weld seams with low heat input and controlled penetration.
The machine can weld common manifold materials, including stainless steel, aluminum alloy, and copper alloy. Adjust welding parameters based on material properties, thickness, and component structure.
The required laser power depends on material type, wall thickness, and welding speed. KEMPSON provides 1500W–3000W laser welding systems for different water manifold applications.
Yes. Laser welding is widely used for battery cooling components, including liquid cooling plates, manifolds, and thermal management parts. The process produces narrow weld seams and controlled heat input, ideal for sealing applications.
TIG welding uses an arc heat source and typically adds more heat to the workpiece. Laser welding provides higher energy concentration, smaller heat-affected areas, and better control for thin-wall and precision manifold structures.
Yes. KEMPSON provides customized solutions based on manifold size, material, welding path, and production requirements. Options include customized fixtures, rotary mechanisms, automation modules, and welding process development.
Laser welding creates dense weld seams with controlled penetration and low deformation. For liquid-cooled components, the process improves sealing performance and reduces leakage risk during operation.
Yes. The machine supports aluminum alloy and copper alloy welding. You can adjust welding parameters and optical configurations to match the material characteristics and application requirements.
