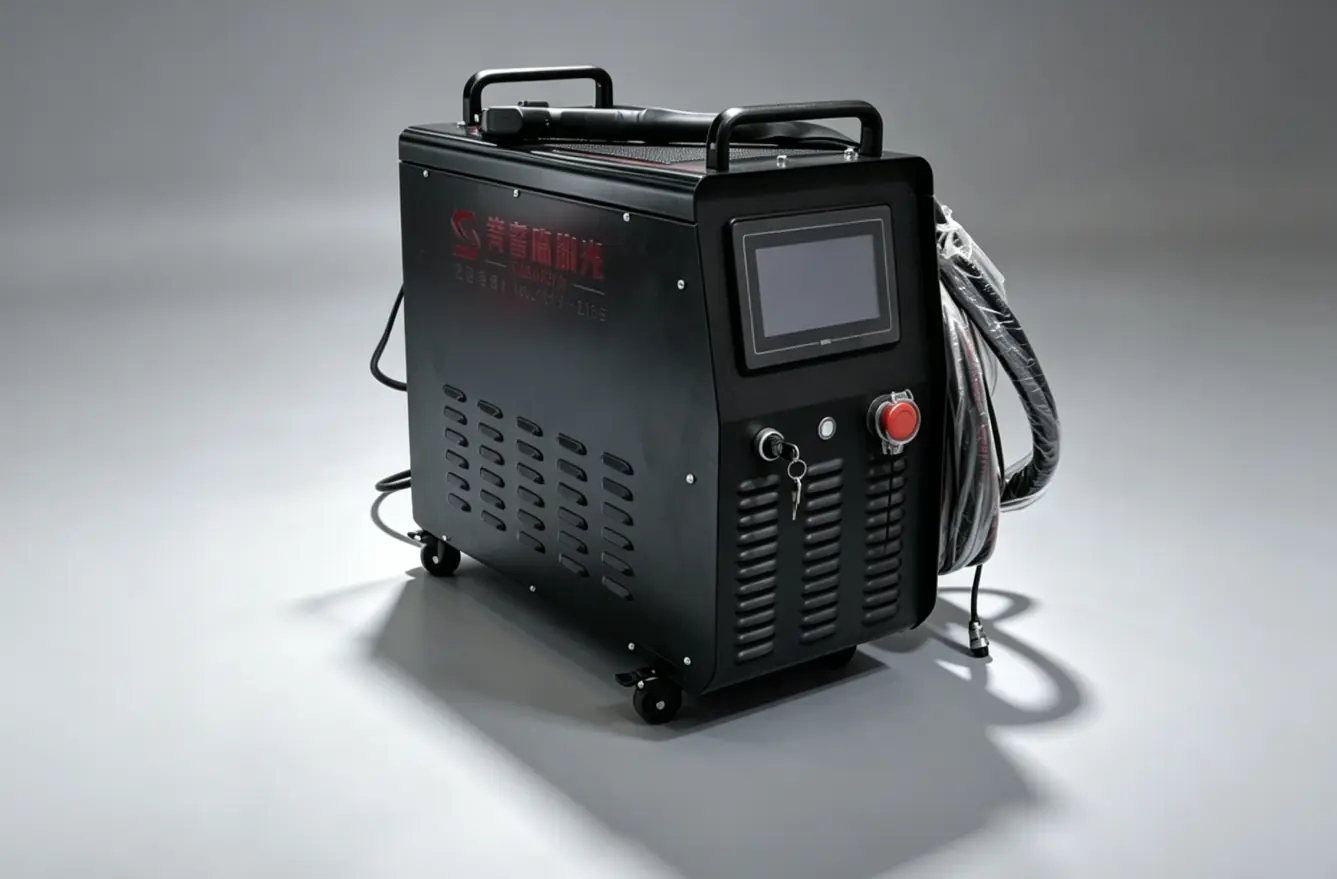

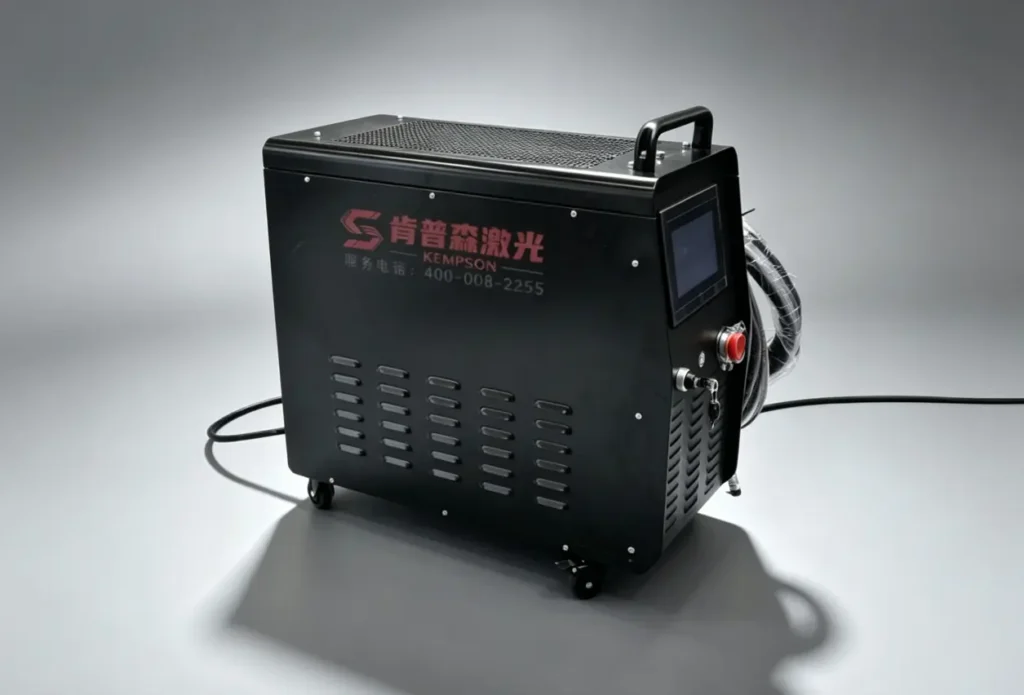

A Refrigerant-Cooled Handheld Laser Welder is a handheld laser welding machine with a built-in refrigerant circulation cooling system. The cooling system directly controls the temperature of the laser source and welding torch without using an external water chiller. Compared with traditional water-cooled laser welders, it removes the need for a separate cooling unit, water pipes, and regular water maintenance.

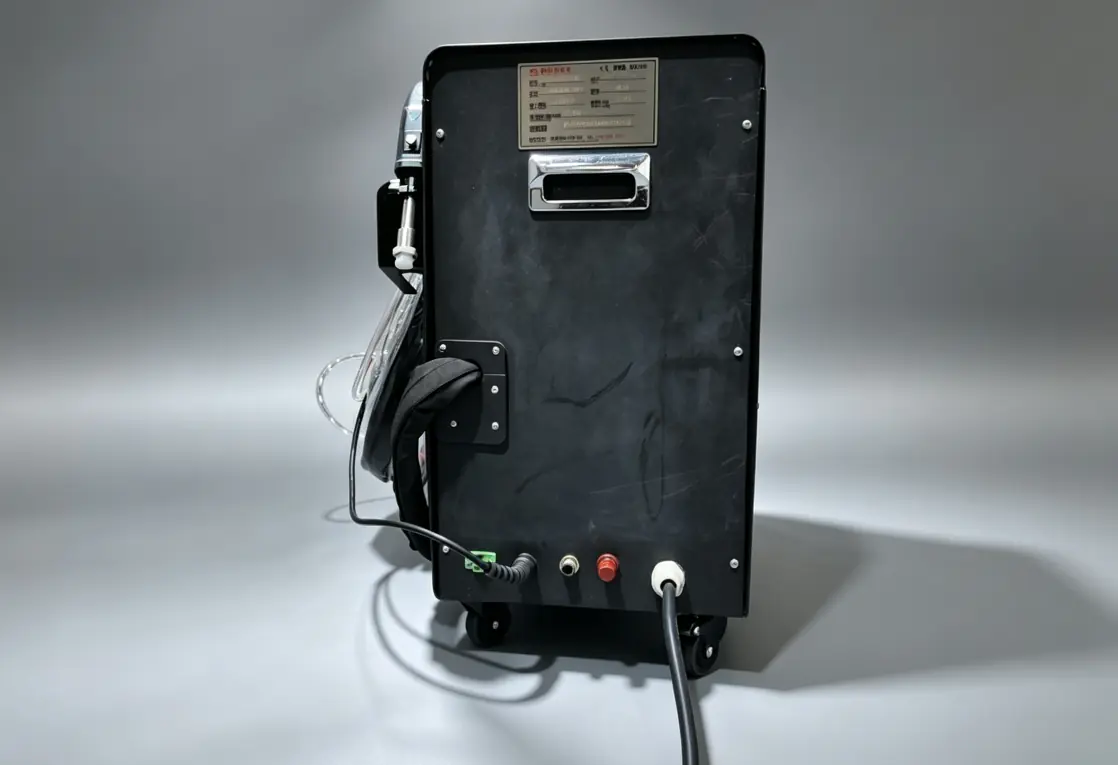

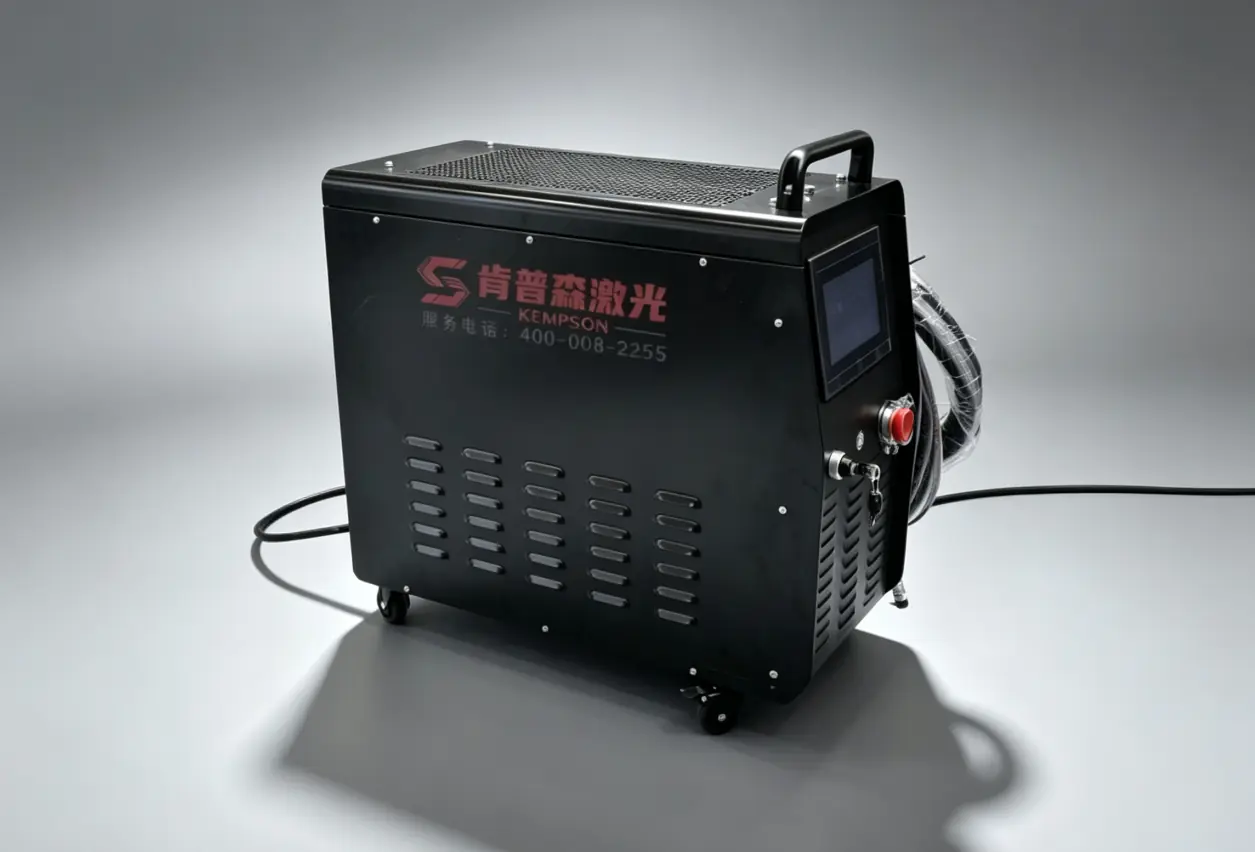

The machine adopts an integrated structure that combines the laser system, cooling system, and welding unit in one compact body. The portable design makes it suitable for on-site welding, outdoor installation, workshop processing, and repair work where frequent equipment movement is required.

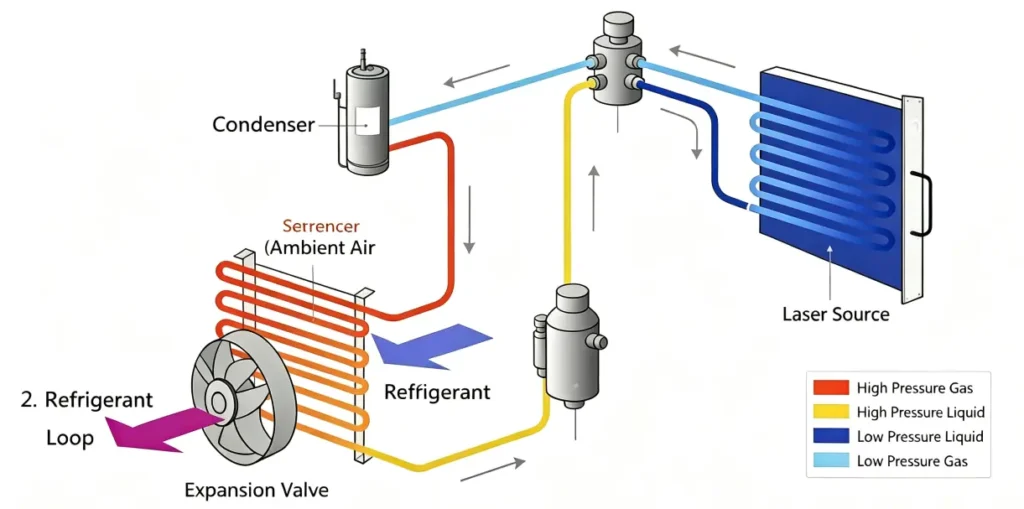

A refrigerant-cooled handheld laser welder uses a closed-loop refrigerant cooling system to remove heat generated by the laser source and welding torch. The system adopts an independent dual-circuit design, with separate cooling paths for the laser source and welding head, maintaining stable operating temperatures during continuous welding.
The refrigerant-cooled handheld laser welder uses direct refrigerant cooling to control heat from the laser source and welding torch. Through independent cooling circuits and automatic temperature regulation, the machine maintains stable operation without a traditional water cooling unit.
Traditional handheld laser welders usually rely on external water chillers for temperature control, which increases equipment size and limits movement. Refrigerant-cooled laser welders use a built-in cooling system, removing the need for a separate chiller. This design makes the machine more compact and easier to use in workshops, repair work, and outdoor welding environments.
| Item | Refrigerant Cooling | Water Cooling |
|---|---|---|
| External Chiller | No external water chiller required | Requires a separate water chiller |
| Cooling System | Built-in closed-loop refrigerant circulation | External water circulation system |
| Equipment Size | Compact machine structure | Larger setup with an additional cooling unit |
| Installation Space | Requires less workshop space | Needs extra space for chiller placement |
| Mobility | Easy to move for on-site welding | Limited by external cooling equipment |
| Startup Process | Ready for welding after power-on | Requires water connection and system preparation |
| Maintenance | No water replacement, no scale or corrosion problems | Requires regular water checks and cleaning |
| Outdoor Welding | Suitable for mobile and outdoor applications | Limited by outdoor working conditions |
| Continuous Welding | Stable temperature control during long-term operation | Cooling performance depends on water circulation |
Refrigerant cooling removes the need for an external water chiller and combines the cooling system with the welding machine. The compact structure reduces equipment space and makes transportation easier, which is suitable for mobile welding, field repair, and small workshop applications.
For an in-depth understanding of water-cooled laser welding, see this article: What Is a Water-Cooled Laser Welding Machine?
To learn more about water-cooled laser welding machines, check out this product: Water-Cooled Portable Fiber Laser Welding Machine 1500W/2000W
The Refrigerant-Cooled Handheld Laser Welder is designed for flexible welding tasks that require easy movement, stable operation, and fast setup. With no external water chiller and a compact all-in-one structure, it is widely used in metal fabrication, repair work, equipment installation, and mobile welding services.

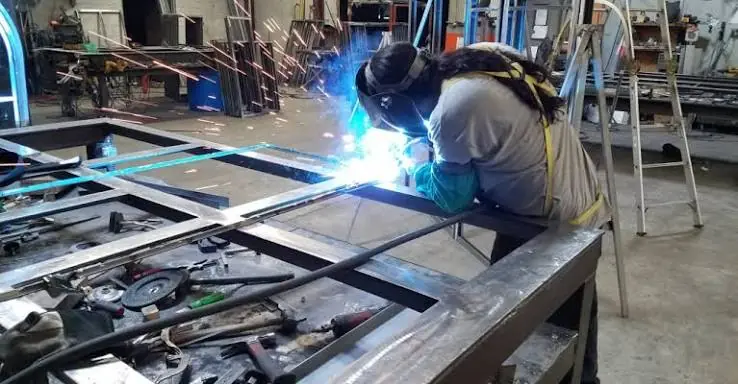

Aluminum doors, stainless steel doors, window frames, railings, and metal profiles.
Used for frame joints, repair welding, and surface welding where a clean weld appearance is required.
Stainless steel cabinets, kitchen equipment, metal enclosures, sheet metal parts.
Suitable for thin plate welding, structural connection, and reducing post-welding grinding work.

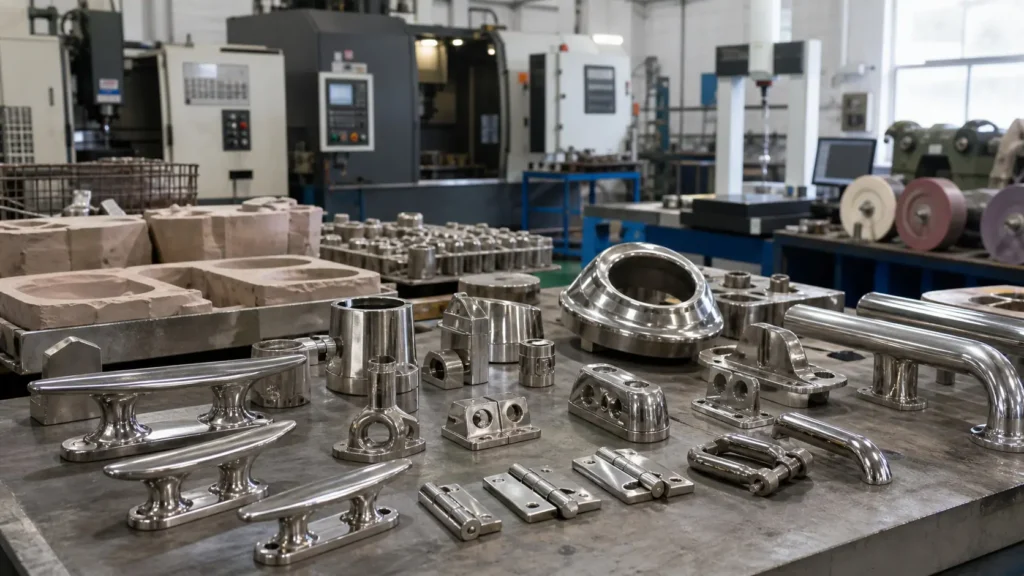

Metal furniture, hardware fittings, brackets, and small metal components.
Used for batch welding of metal parts with flexible operation requirements.
Building railings, pipelines, outdoor equipment, steel structures.
The portable design allows welding work at construction sites and locations without fixed production equipment.
Vehicle parts, machine frames, mechanical components, and equipment maintenance parts.
Suitable for repair welding and local reinforcement work.
Stainless steel letters, metal signs, display frames, and decorative structures.
Used for fine welding with a smooth weld appearance and less surface finishing.
Battery components, metal housings, and related structural parts.
Suitable for precision welding requirements in battery manufacturing applications.

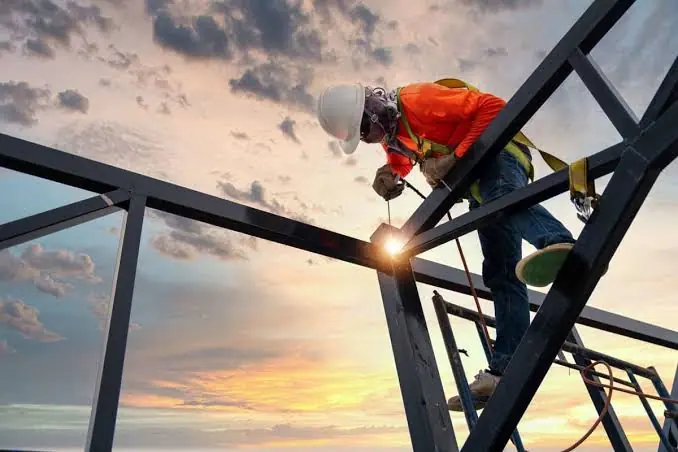

On-site repair projects, customized metal work, temporary welding tasks.
The lightweight structure makes it convenient for service providers to carry the equipment between different work locations.
| Parameter | KPS-LHW1500R | KPS-LHW2000R |
|---|---|---|
| Laser Power | 1500W | 2000W |
| Cooling Method | Refrigerant Cooling | Refrigerant Cooling |
| Cooling System | Built-in Refrigerant Circulation | Built-in Refrigerant Circulation |
| Welding Thickness | 0.5-3mm | 0.5-5mm |
| Welding Materials | Stainless Steel / Carbon Steel / Aluminum / Galvanized Sheet | Stainless Steel / Carbon Steel / Aluminum / Galvanized Sheet |
| Welding Mode | Spot Welding / Continuous Welding / Tack Welding | Spot Welding / Continuous Welding / Tack Welding |
| Welding Application | Thin Sheet Processing | Medium Thickness Welding |
| Machine Structure | Integrated Portable Design | Integrated Portable Design |
| Cooling Unit | No External Water Chiller Required | No External Water Chiller Required |
Note: Welding thickness may vary depending on material type, joint design, and welding parameters.

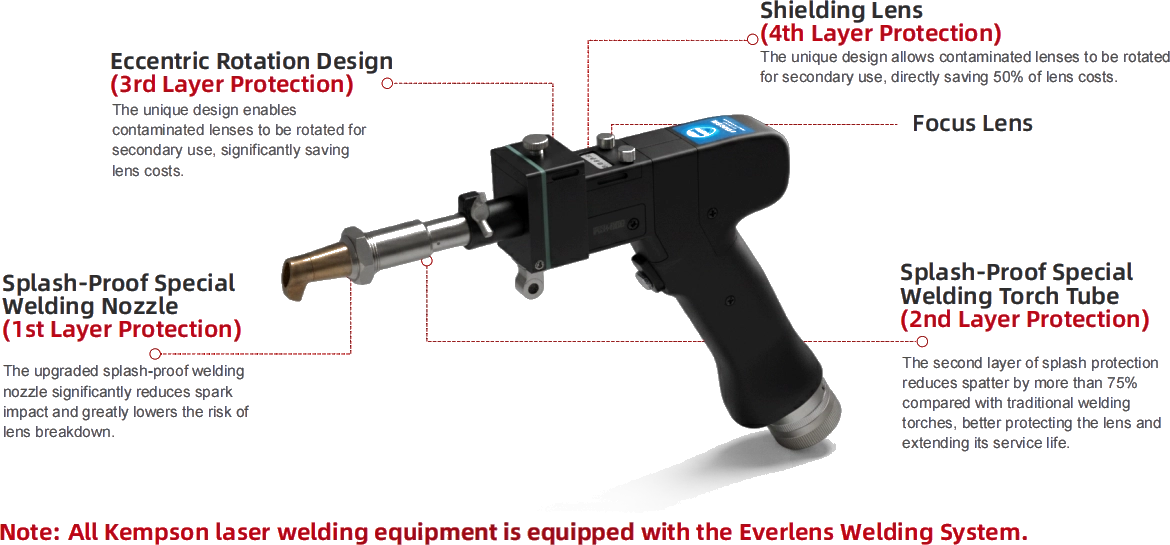

The Second-Generation Black-Gold Welding Gun features an upgraded lens protection structure and anti-spatter design. It improves lens durability, reduces consumable replacement, and is suitable for long-time welding operations.
The welding thickness varies by laser power and material type. Kempson provides 1500W and 2000W models for different welding requirements, covering thin sheet fabrication, repair work, and medium-thickness metal welding.
| Model | Recommended Thickness | Stainless Steel | Carbon Steel | Aluminum |
|---|---|---|---|---|
| 1500W Laser Welder | Thin sheet welding within 3mm | 2.5mm | 3mm | 2mm |
| 2000W Laser Welder | Medium thickness welding above 3mm | 4.5mm | 5.5mm | 4mm |
Note: The above data is based on standard corner joint and lap joint conditions. Butt welding thickness may vary depending on welding parameters and process settings.
The 1500W refrigerant-cooled handheld laser welder is suitable for thin sheet metal processing, while the 2000W model is designed for thicker metal welding applications. Users can select the suitable power according to material type, thickness, and welding requirements.
Refrigerant-cooled and air-cooled laser welders use different cooling methods. Air-cooled systems rely on fans and heat dissipation, while refrigerant-cooled systems use active cooling to remove heat from the laser source and welding head. The difference is mainly reflected in cooling performance, continuous welding capability, and working environment adaptability.
| Feature | Refrigerant Cooling | Air Cooling |
| Cooling Method | Closed-loop refrigerant circulation | Fan and heat sink cooling |
| Cooling Capacity | Higher cooling efficiency for high-power welding | Lower cooling capacity, suitable for lighter workloads |
| Long-Time Welding | Suitable for continuous welding operation | Limited by heat accumulation |
| Temperature Control | More stable temperature control | Temperature is affected by ambient conditions |
| Outdoor Adaptability | Suitable for outdoor and mobile welding | Performance may vary with the working environment |
| Working Stability | Stable operation during long welding tasks | Depends on airflow and surrounding temperature |
| Equipment Structure | Integrated cooling system, no external chiller required | Simple structure with fewer cooling components |
| Maintenance | No water maintenance required | Requires regular cleaning of fans and heat dissipation parts |
| Application Range | Sheet metal fabrication, repair welding, mobile welding, and industrial production | Light welding tasks and short-time processing |
Refrigerant-cooled laser welders provide stronger cooling performance and better temperature control for continuous welding. Compared with air-cooled machines, they are more suitable for applications requiring longer operation time, higher welding stability, and frequent equipment movement.
For more information on air-cooled welding equipment, please see:
Air-cooled Handheld Laser Welding Machine
4000W Air Laser Welding Machine
Air Laser Welding Machine 1500W/2000W/3000W
Kempson is a laser welding machine manufacturer specializing in refrigerant-cooled handheld laser welding solutions. With industrial laser welding experience, Kempson provides 1500W and 2000W models for sheet metal fabrication, repair welding, and mobile welding applications. The machines feature built-in refrigerant cooling, a portable design, and support customized power options for different welding requirements.
Kempson provides complete laser welding solutions, including product selection, technical support, and customized configurations. For more information about refrigerant-cooled handheld laser welders, welding performance, or application solutions, contact us for professional support.
A refrigerant-cooled handheld laser welder is a portable laser welding machine with a built-in refrigerant circulation cooling system. It uses direct refrigerant cooling to control the temperature of the laser source and welding torch without an external water chiller.
No. A refrigerant-cooled laser welder integrates the cooling system inside the machine and does not require an external water chiller, water pipes, or additional cooling equipment.
Refrigerant cooling provides a compact structure, stable temperature control, and easier maintenance. It removes the need for water replacement and avoids problems such as scale buildup, corrosion, leakage, and freezing.
Yes. The refrigerant-cooled handheld laser welder can weld aluminum alloy, as well as stainless steel, carbon steel, and galvanized sheet. The welding result depends on material thickness and process parameters.
A handheld laser welder can process stainless steel, carbon steel, aluminum alloy, and galvanized sheet. It is commonly used for sheet metal parts, doors and windows, hardware products, equipment repair, and metal fabrication.
Yes. The built-in refrigerant cooling system and portable design make it suitable for outdoor installation, equipment repair, construction sites, and mobile welding services.
The 1500W model is suitable for thin sheet welding, with a standard fillet welding thickness of up to 2.5mm stainless steel, 3mm carbon steel, and 2mm aluminum. The 2000W model can weld up to 4.5mm stainless steel, 5.5mm carbon steel, and 4mm aluminum under standard conditions.
The second-generation Black-Gold welding torch uses a rotatable outer protective lens that can be reused 6-8 times. This design reduces lens replacement frequency and lowers consumable costs.
