6000W Dual Beam Laser Welding Machine is a high-power fiber laser welding system designed for medium and thick plate welding applications. Different from traditional single-beam laser welding, it uses a core beam and ring beam structure to control penetration depth and molten pool stability separately.
The center beam creates deep penetration, while the ring beam provides preheating and thermal balance around the welding area. This structure helps reduce welding defects and improves weld appearance during long-term industrial operation.
Kempson offers a variety of laser welding machines for thick plates. Browse our products:
Laser Welder for 12mm Carbon Steel
Best Hand-Held Laser Welder for Thick Metal Fabrication
Core-Ring Laser Welding Machine
The core-ring dual beam system uses a center beam and a ring beam to control welding penetration and heat distribution. The center beam delivers high energy density for deep penetration, while the ring beam controls heat around the welding area to stabilize the molten pool.
The center beam provides concentrated laser energy to form a stable keyhole and increase penetration depth. It is suitable for thick plate welding applications requiring strong weld penetration.
The ring beam distributes heat around the weld area to maintain a stable molten pool. It helps improve weld bead formation and reduce welding defects during continuous operation.
| Laser Beam | Function | Welding Effect |
|---|---|---|
| Core Beam | Deep penetration | Stable keyhole, deeper weld |
| Ring Beam | Heat control | Stable molten pool, less spatter |
| Combined Beam | Energy balance | Wider and consistent weld seam |
The core-ring dual beam system combines deep penetration and molten pool control in one welding process, providing stable weld quality for thick plate and industrial welding applications.

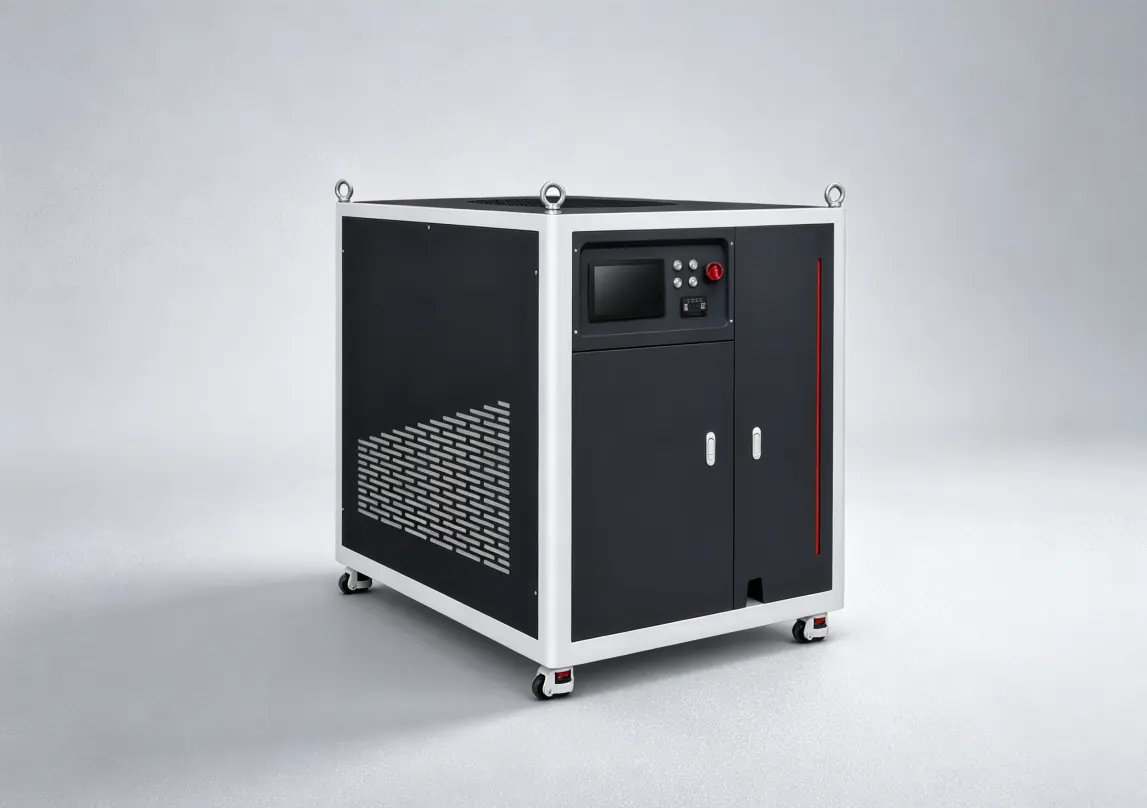

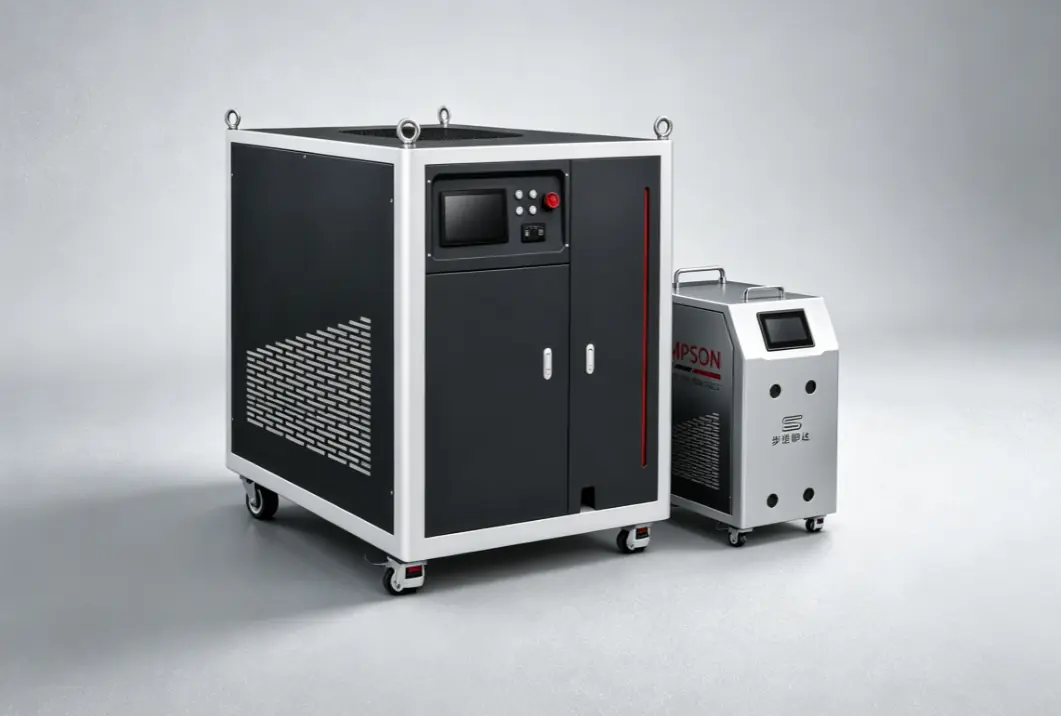

The 6000W Dual Beam Laser Welding Machine is equipped with key components for thick plate welding and industrial production. The main systems work together to control welding quality, operation stability, and processing efficiency.

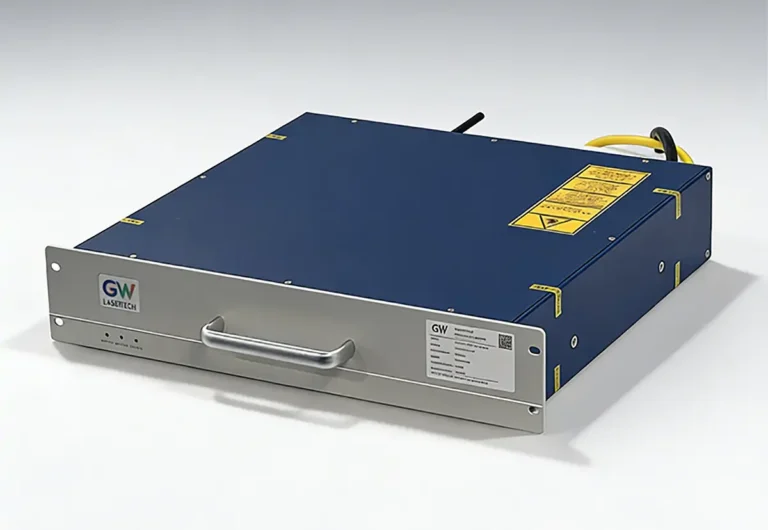

Provides core beam and ring beam output for deep penetration welding and molten pool control.

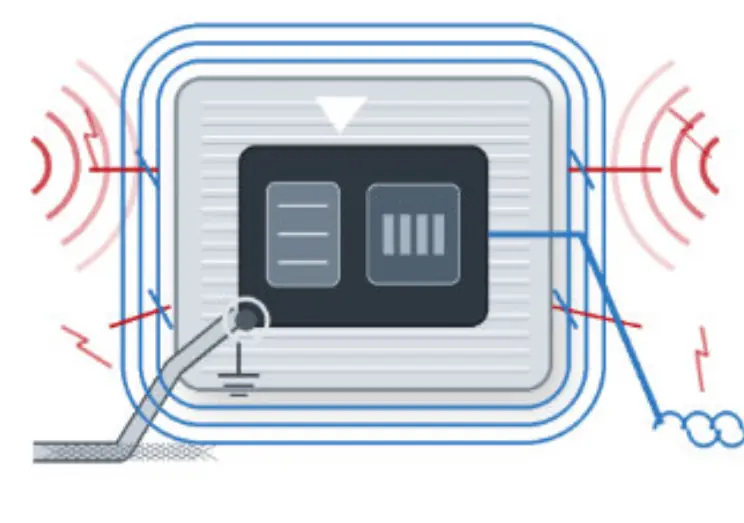

Includes EMI filtering and signal isolation design to reduce electromagnetic interference in strong magnetic environments.

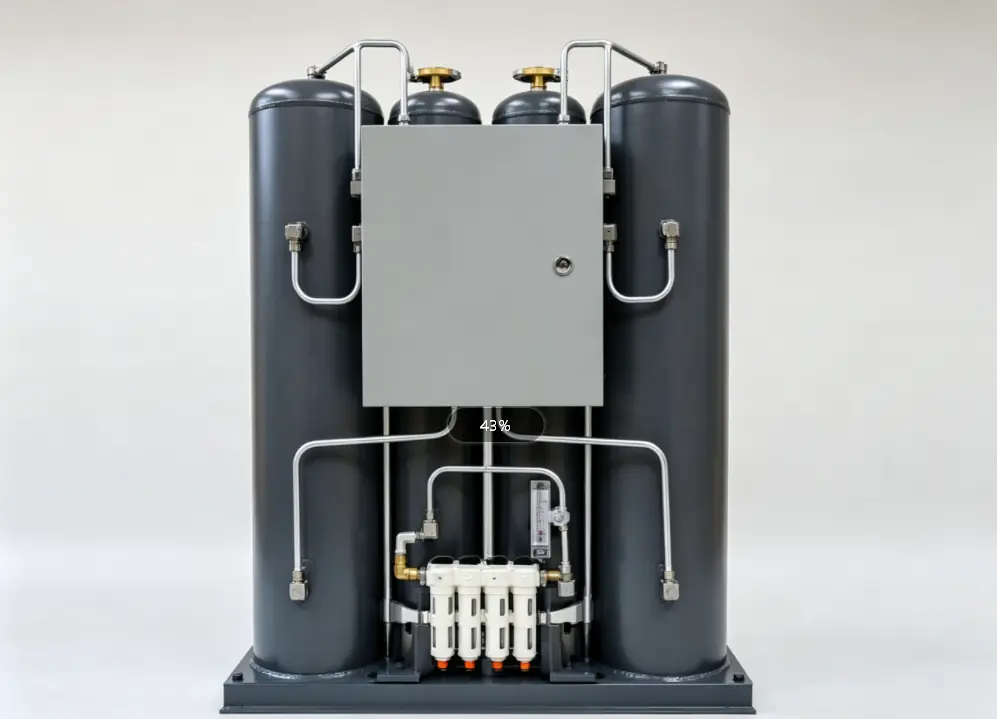

Generates shielding gas during welding and reduces dependence on external nitrogen supply.

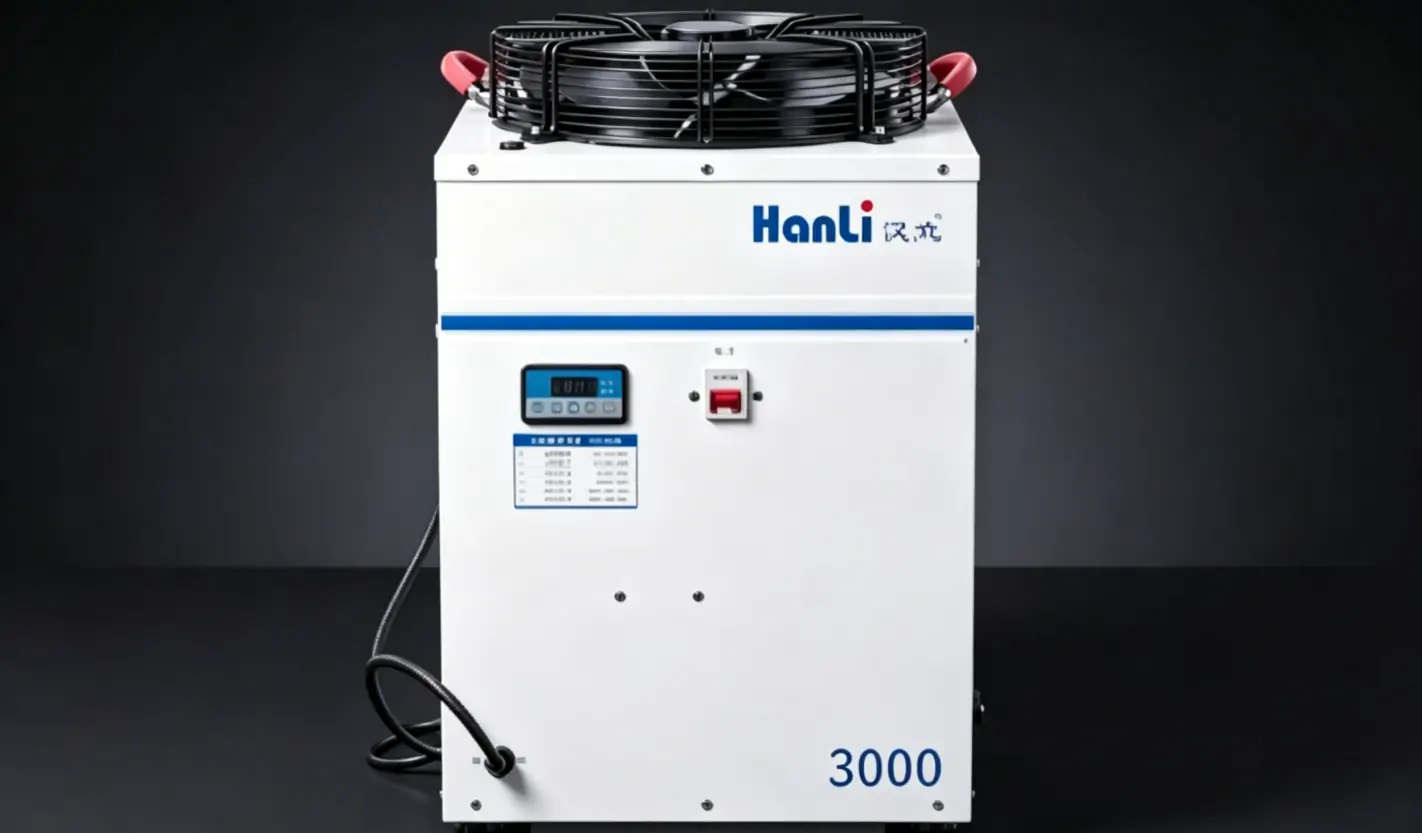

Maintains stable temperature control during continuous high-power welding operations.

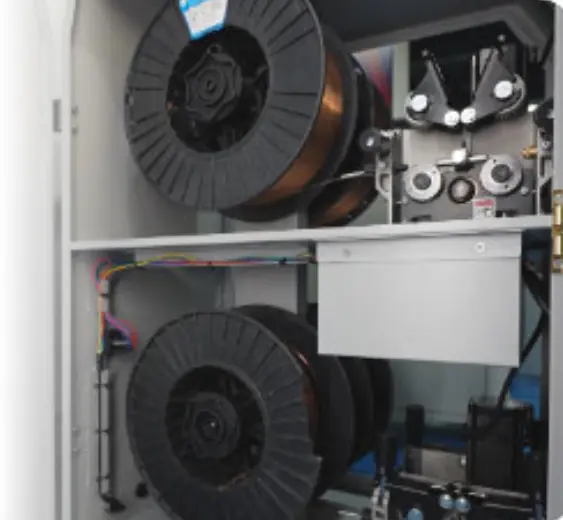

Supports single-wire, double-wire, triple-wire, and four-wire feeding modes for different welding requirements.

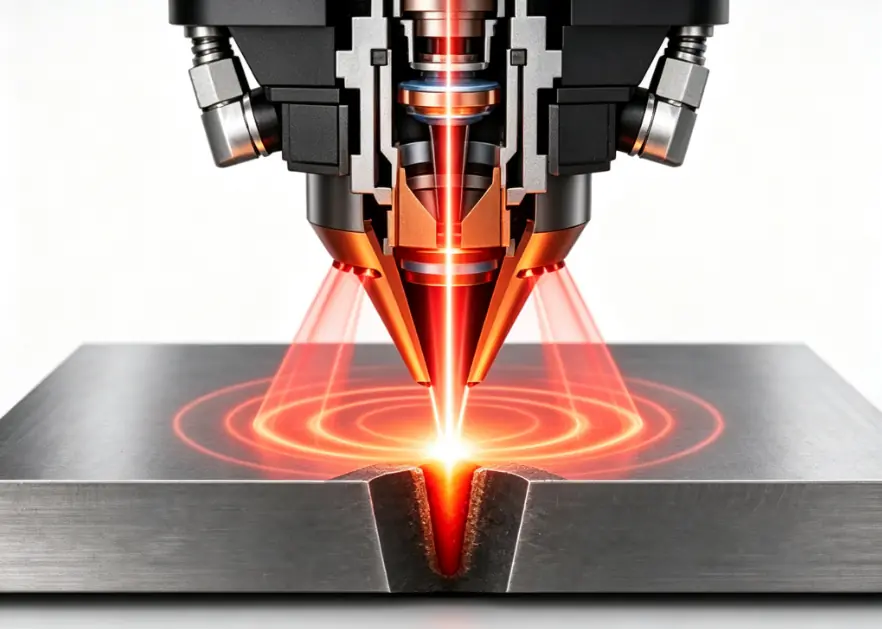

Uses dual galvanometer control for flexible welding paths and better molten pool control.
Provides stable wire feeding performance for continuous welding processes.
Allows flexible welding operation with extended working distance.
The laser source, welding torch, cooling system, wire feeding system, and control system form a complete welding system for heavy-duty metal fabrication.
| Parameter | Specification |
|---|---|
| Model | KPS-FHWG2-6000W |
| Laser Power | 6000W |
| Beam Type | Dual Beam Composite Output |
| Beam Configuration | Center 3000W + Ring 3000W / Center 4000W + Ring 2000W |
| Working Mode | Continuous Welding / Pulse Welding / Welding Mode |
| Power Adjustment Range | 3%–100% |
| Laser Wavelength | 1080±10nm |
| Fiber Interface | QBH |
| Wire Diameter | 0.8–2.0mm |
| Wire Feeding Mode | Single Wire / Double Wire / Triple Wire / Four Wire |
| Maximum Weld Width | Approx. 11mm |
| Cooling System | Industrial Water Cooling |
| Anti-Interference Configuration | EMI Filter / Signal Isolation / Industrial Anti-Interference Design |
| Built-in Gas System | Nitrogen Generation System |
| Power Supply | 380V |
| Fiber Cable Length | Standard 10m Fiber Cable |
Welding and repair of aluminum plant equipment under strong magnetic field conditions.
The anti-interference design supports stable welding operation in high electromagnetic environments.
Welding of aluminum, copper, and other highly reflective metals.
The dual beam structure improves welding stability for materials with high thermal conductivity and reflectivity.

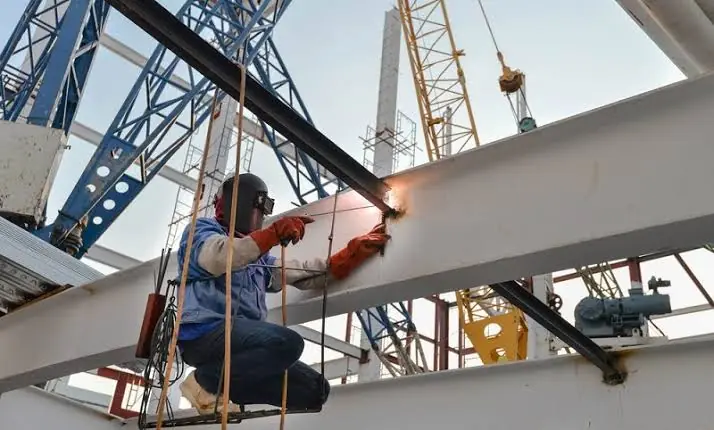

Welding of thick steel plates, beams, and structural components.
The 6000W laser power provides deep penetration for heavy steel structures.

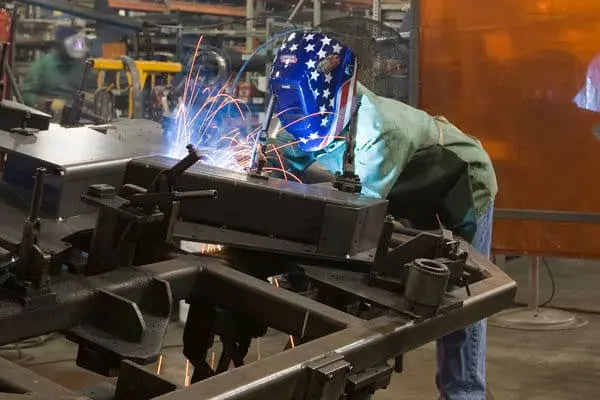

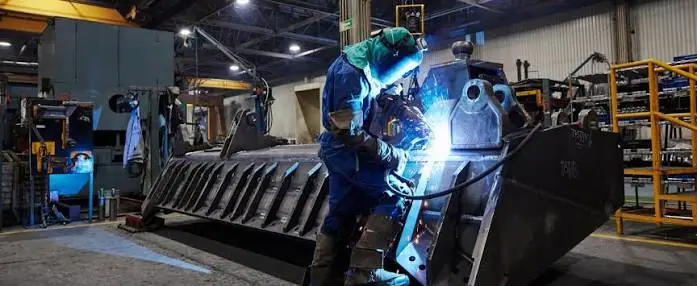

Welding of excavators, loaders, mining equipment, and heavy machinery parts.
Suitable for large metal components requiring high-strength weld joints.
Continuous welding of container panels, frames, and long straight seams.
The water cooling system supports long-duration industrial welding.
Welding of pressure equipment, industrial frames, and large fabricated components.
Suitable for production environments with high weld quality requirements.
Dual beam laser welding uses two laser beams to control energy distribution and molten pool behavior during welding. Compared with traditional single beam welding, it provides better control of weld penetration, heat input and welding stability, especially for aluminum alloys, copper alloys and thick plate applications.
| Comparison Item | Dual Beam Laser Welding | Traditional Single Beam Laser Welding |
|---|---|---|
| Beam Structure | The laser is divided into two beams with an adjustable energy ratio. The beams can be arranged side-by-side, in series, or coaxially. | A single focused laser beam concentrates energy on one spot. |
| Molten Pool Characteristics | A larger molten pool with better mixing helps gas escape and improves molten pool stability. | Smaller molten pool with limited mixing effect. |
| Welding Speed | Higher welding speed with improved production efficiency. | Lower welding speed compared with dual beam welding. |
| Porosity Control | Porosity can be reduced by about 38%, resulting in denser weld seams. | Porosity defects are more common, especially in aluminum alloy welding. |
| Crack Control | Helps reduce solidification cracks and hot cracks. | Higher sensitivity to welding cracks. |
| Welding Adaptability | Better adaptability to complex conditions such as assembly gaps and dissimilar material welding. | Requires higher assembly accuracy with limited adaptability. |
| Heat Affected Zone | Dual beam energy distribution provides better heat input control and reduces deformation risk. | Heat input is more concentrated, making deformation control more difficult. |
| Process Stability | More stable keyhole formation, lower plasma fluctuation, and smoother welding process. | Keyhole stability is more affected by welding parameters. |
| Applicable Materials | Suitable for aluminum alloys, copper alloys, highly reflective materials, and dissimilar metal welding. | Suitable for common metals but more difficult for highly reflective materials. |
| Equipment Cost | More complex structure with higher equipment cost. | Lower equipment cost. |
Dual beam laser welding machines offer better energy distribution and molten pool control, resulting in improved weld quality, welding speed, and defect control. They are suitable for industrial welding applications with strict requirements for weld strength and stability.
Read more :
This 6,000-watt dual-beam laser welding machine is designed for long-term industrial operation, with low maintenance requirements and low operating costs.
Reduces the need for external nitrogen supply and lowers shielding gas costs.
Maintains stable machine temperature during continuous high-power welding.
Reduces lens damage risk and helps minimize machine downtime.
Simplifies maintenance, replacement, and daily service work.
KEMPSON manufactures 6000W Dual Beam Laser Welding Machines for thick plate welding, heavy equipment fabrication, and industrial applications. The machine features core-ring beam technology, magnetic interference protection, built-in nitrogen generation and industrial water cooling for stable welding performance in demanding production environments.
For machine details, welding requirements, or customized solutions, contact us for more information.
A 6000W Dual Beam Laser Welding Machine is a high-power laser welding system that uses core beam and ring beam technology. The center beam provides deep penetration, while the ring beam controls the molten pool for stable thick plate welding.
Dual beam laser welding controls heat distribution and molten pool movement through two laser beams. It helps reduce spatter, improve weld bead formation, and produce denser weld seams.
Yes. The 6000W laser power provides deep penetration for medium and thick steel plates. It is suitable for steel structures, heavy equipment and large metal fabrication.
The core beam focuses laser energy for deep penetration and keyhole formation. The ring beam distributes heat around the weld area to control the molten pool and improve weld stability.
Yes. The machine uses EMI filtering, signal isolation, and anti-interference design for welding applications in strong magnetic environments, such as aluminum electrolysis plants.
Yes. The dual beam structure is suitable for aluminum, copper, and other highly reflective metals by improving energy distribution and welding stability.
No. The machine includes a built-in nitrogen generation system, reducing the need for external nitrogen supply during welding.
It can weld carbon steel, stainless steel, aluminum alloy, copper alloy and other industrial metals used in heavy fabrication and structural welding.
